12.2.3 X.LIMIT -

limiting the mechanical stroke range
This function limits the (physical) stroke to specified % values (lower and upper). In doing so, the stroke range of
the limited stroke is set equal to 100 %. If the limited stroke range is left during operation, negative actual posi-
tions or actual positions greater than 100 % are shown.
Factory setting: Lower position limit = 0 %, upper position limit = 100 %
Adjustment ranges:
Lower position limit:
Upper position limit:
The minimum distance between the upper and lower stroke limit is 50 %. Therefore if one value is entered with a
minimum distance of < 50 % the other value is adjusted automatically.

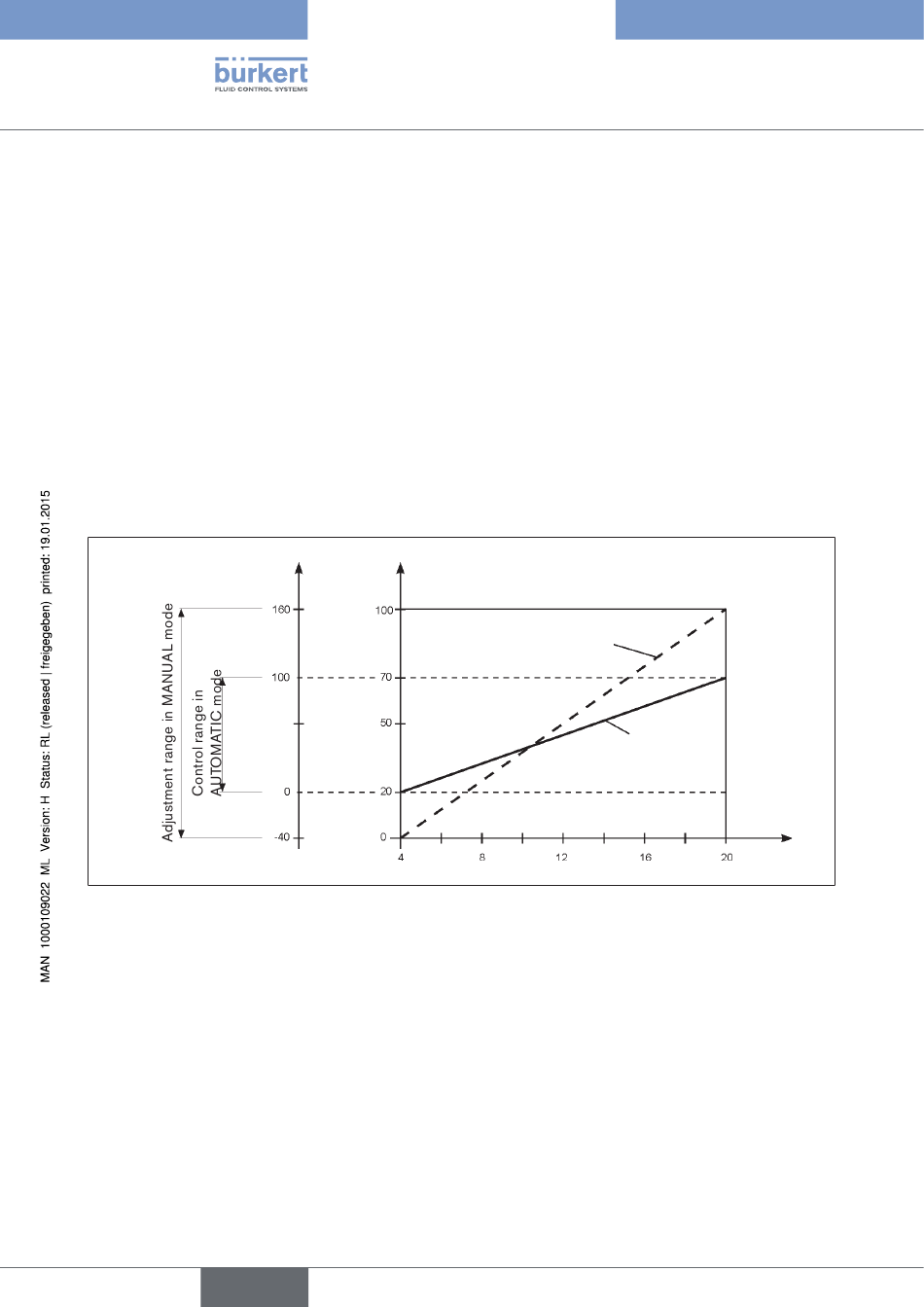

Fig. 34: X.LIMIT graph
54
0 – 50 % of the entire stroke
50 – 100 % of the entire stroke
Limited Physical
stroke (%) stroke (%)
english
Type 8696
Operationandfunction
Unlimited
stroke
Limited
stroke
Set-point value
[mA] (INPUT)
