8.3 rotating the actuator module for process valves
belonging to series 2300 and 2301
The actuator module (positioner and actuator) can be rotated for straight seat valves and angle seat valves
belonging to series 2300 and 2301 only.
The position of the connections can be aligned steplessly by rotating the actuator module (positioner and actuator)
through 360°.
Only the entire actuator module can be rotated. The positioner cannot be rotated contrary to the actuator.
The process valve must be in the open position for alignment of the actuator module.
Danger!
risk of injury from high pressure in the equipment/device.
▶ Before working on equipment or device, switch off the pressure and deaerate/drain lines.
procedure:
→
Clamp valve body in a holding device (only required if the process valve has not yet been installed).
→
Control function A: Open process valve.

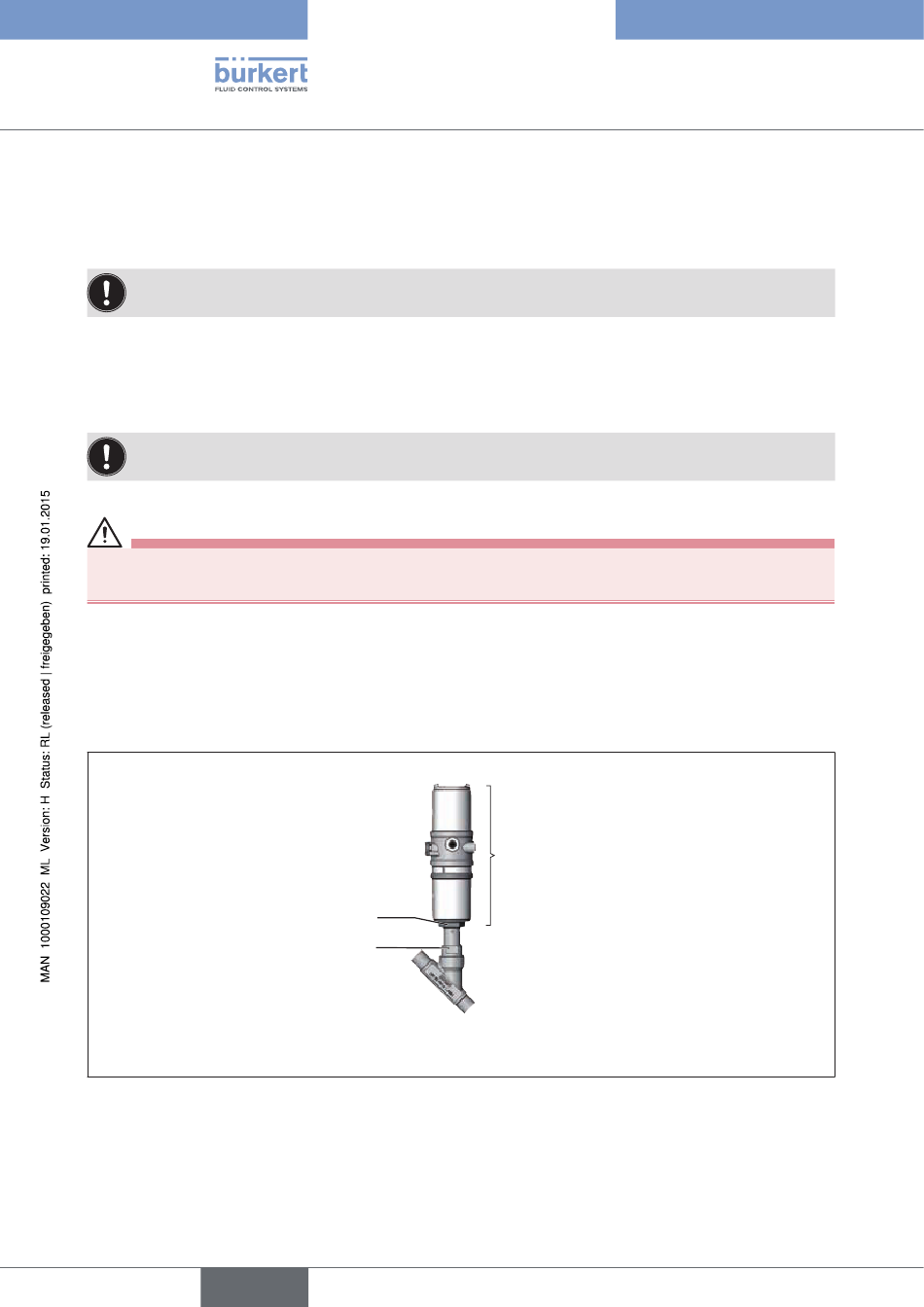

Figure 21: Rotating the actuator module
36
Hexagon
Nipple
english
Actuator module
Series 23xx
Type 8696
Installation
