Product Instructions

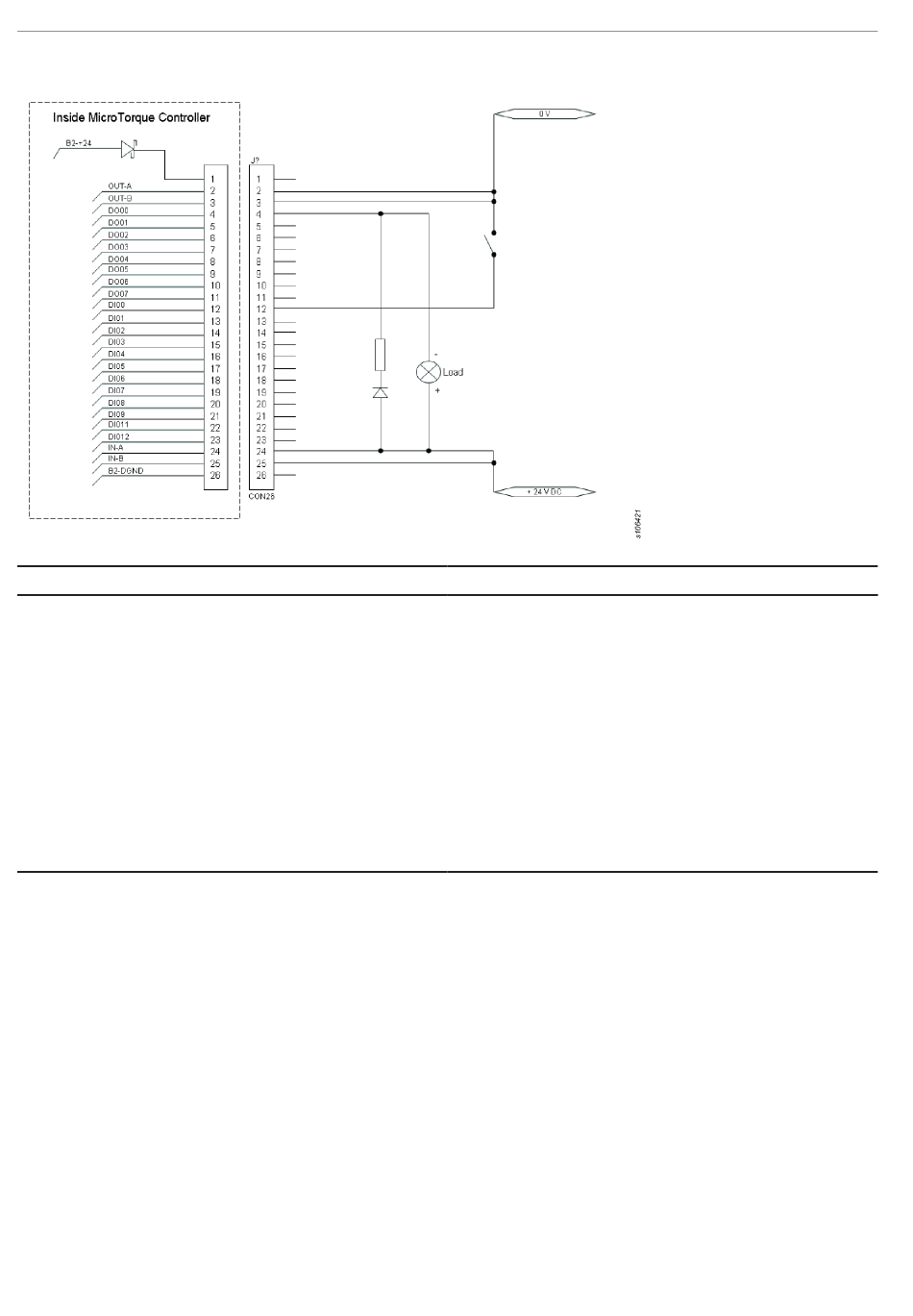

PNP mode
I/O
INT -24V
EXT-OUT-COM0
EXT-OUT0...EXT- OUT3
EXT-IN0...EXT- IN3
EXT-IN-COM0
DGND
8
EN
Description
+24 V output
Connect to B2 +24
or external +24 V
(not at the same time)
The outputs will be connected to the external +24 V
when activated.
The inputs will be activated by a +24 V signal applied
to the input pin.
Connect to B2 DGND
or external 0 V.
0 V output
© Atlas Copco Industrial Technique AB - 9836 620200 00
MicroTorque Controller G4
