MicroTorque Controller G4
COM0: Used for process data documentation, if USB communication is not
available.
COM port settings: 9600 Baud, 8 Data bits, 1 Stop bit, No parity, No hand-
shake.
Pin
8
5
7
COM1: Can be used for communication with ToolsTalk MT for parameter set-
tings and for firmware upgrades.
Pin
2
5
3
COM2: (Used for special purposes only.)
Pin
6
5
4

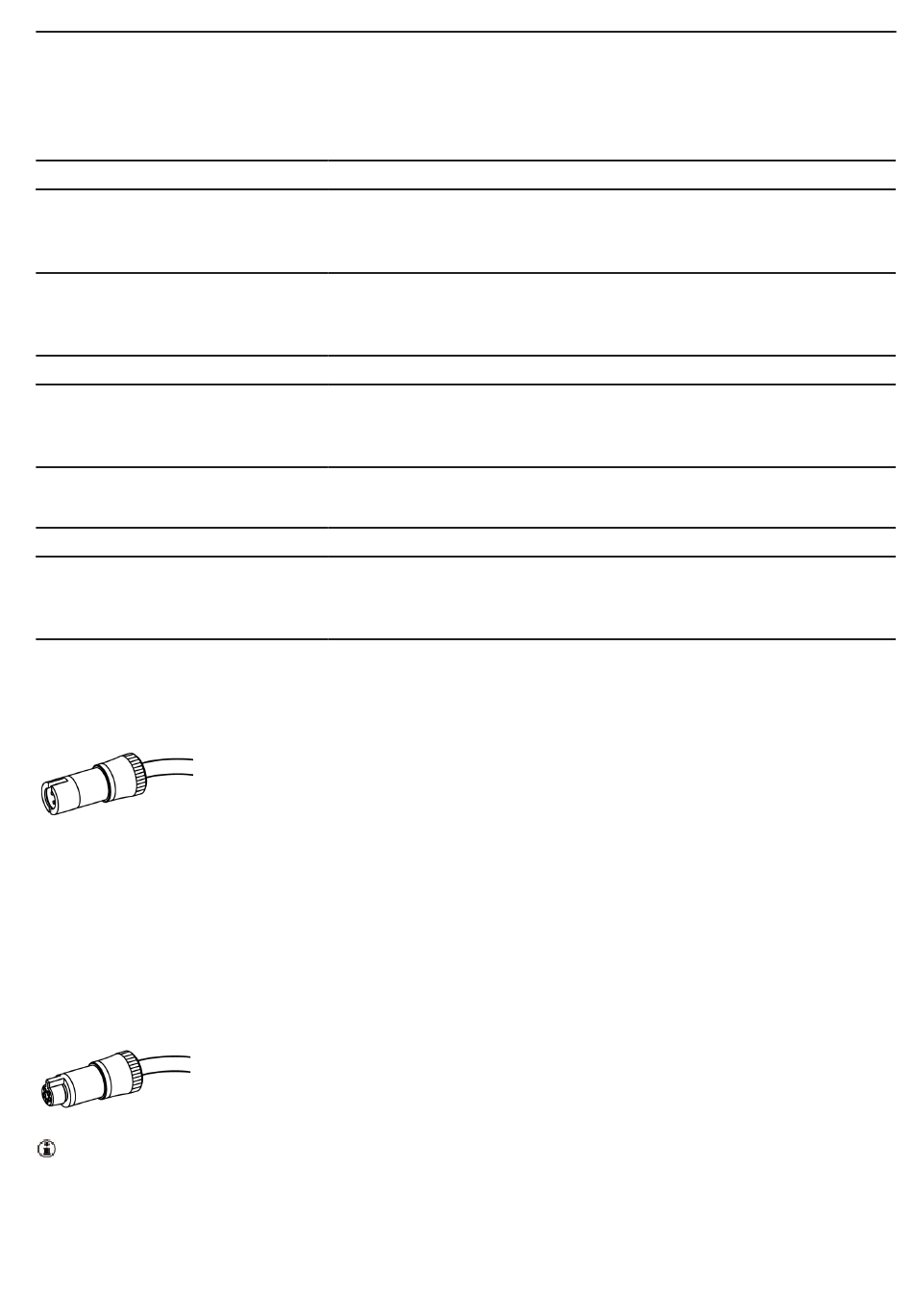

Vacuum pump output (VP)
5-pole socket connector for the connection of Atlas Copco Vacuum pump
VPX6 (24 V, 600 mA).
Digital input (I/O)
5-pole pin connector, configurable, e.g. as input for depth control or device
holder switch. The digital input can be used when programming an Input or
Align step. The digital input is referred as IO DI12 in the Digital IO Status map
in ToolsTalk.
For information on configuration of the input, see ToolsTalk MT - Reference -
I/O status.
Use a 5-pole socket plug from the Binder 719 Series.
This input is not opto-isolated.
Input resistance
EN
Signal
TxD
GND
RxD
Signal
TxD
GND
RxD
Signal
TxD
GND
RxD
10 kΩ
