AP-Fix installation with MKT VMU 150 plus mortar
Tools required: Suitable measuring instrument, suitable drill hammer, drill (Ø18 mm), air pump

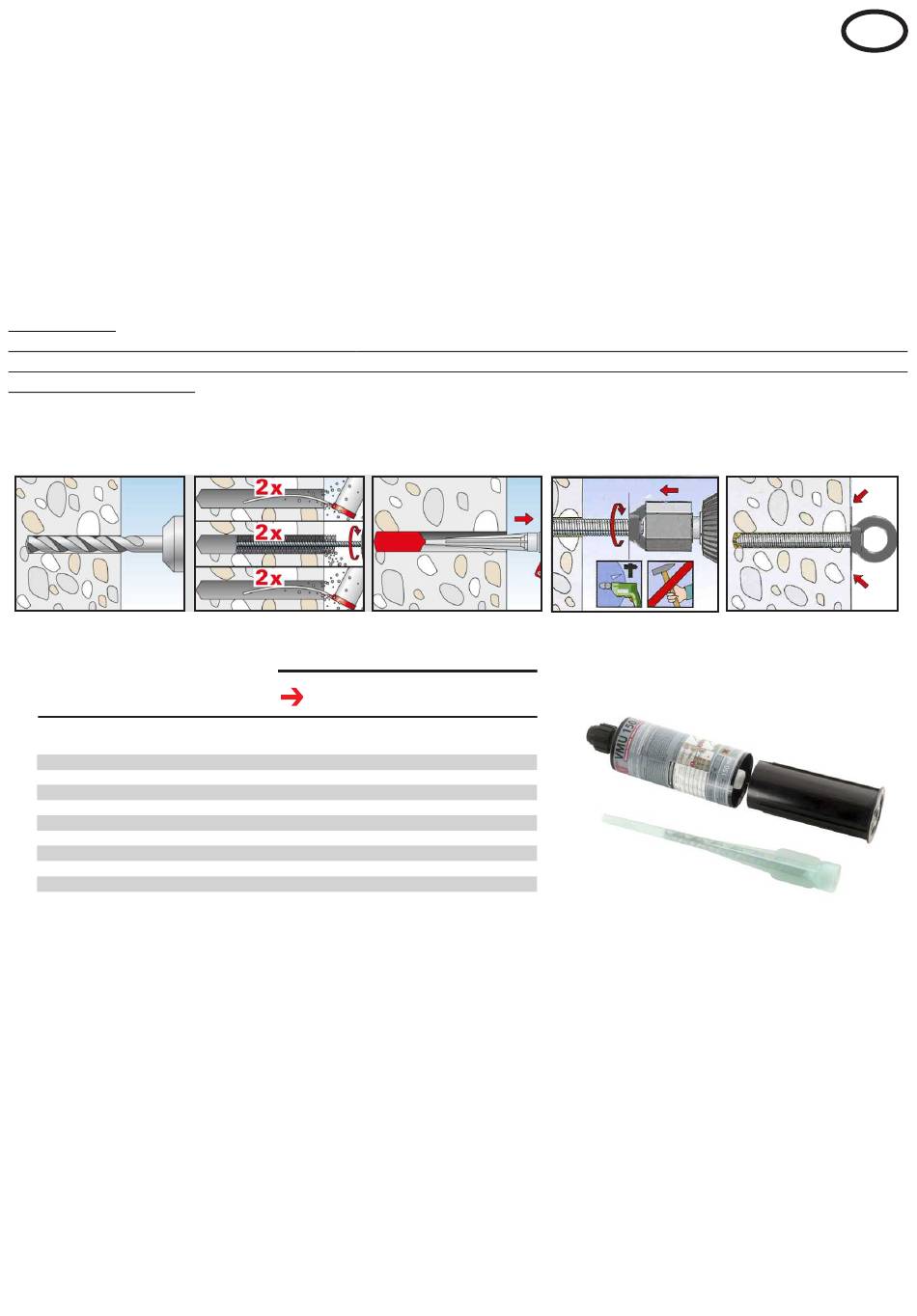

Work steps:
1. Use an impact drilling machine to drill an angular hole (Ø 18 mm) up to a depth of 125 mm.
2. Blow out the bore hole 2 times to ensure that it is free of dust, brush it out 2 times, and blow it out 2 times
again to ensure that it is free of dust
3. In the bore hole use the dispensing device to inject the injection mortar (fig. 11) into the bore (fig. 8)
4. Slowly insert the anchor rod (fig. 3) using a clockwise movement. Keep doing this until the mortar is seen to
emerge. The anchor rod should line up precisely with the fastening surface.
5. After this, do not move the anchor rod. Refer to the curing times in the table - Fig. 12
Please note:
Before the system is activated as per § 14 of the Ordinance on Industrial Safety and Health, a qualified
person should check the installation and use the acceptance protocol to carry out the respective
documentation tasks. The pre-activation inspection does not serve to prove that the respective structure
can withstand the forces that emerge in case of a crash. Its sole purpose is to check whether the anchorage
point is firmly embedded in the installation subsurface.
Fig. 6
Curing times for
VMU 150 plus mortar
Temperature (°C) Processing time
In the borehole
1)
-10°C ─ -6°C
-5°C ─ -1°C
-0°C ─ +4°C
+5°C ─ +9°C
+10°C ─ +19°C
+20°C ─ +29°C
+30°C ─ +34°C
+35°C ─ +39°C
+40°C
The drill hole should be prepared and cleaned immediately before the dowel is set.
1)
Cartridge temperature during processing from +15°C to +40°C.
Fig. 7
Cartridge temperature at the
Processing from +5°C to +40°C
dry concrete
90 min 24 h
90 min 14 h
45 min 7 h
25 min 2 h
15 min 80 min
6 min 45 min
4 min 25 min
2 min 20 min
1,5 min 15 min
Fig. 8
Curing time
wet concrete
48 h
28 h
14 h
4 h
160 min
90 min
50 min
40 min
30 min
Fig. 12
17
Fig. 9
GB
Fig. 10
Fig. 11
