3. Technical data for the anchorage point - AP-Fix / AP-Fix S
Max. load: 2 person
Weight: 0.5kg
Inner diameter of the ring bolt: 36mm
Diameter of the threaded rod: M16

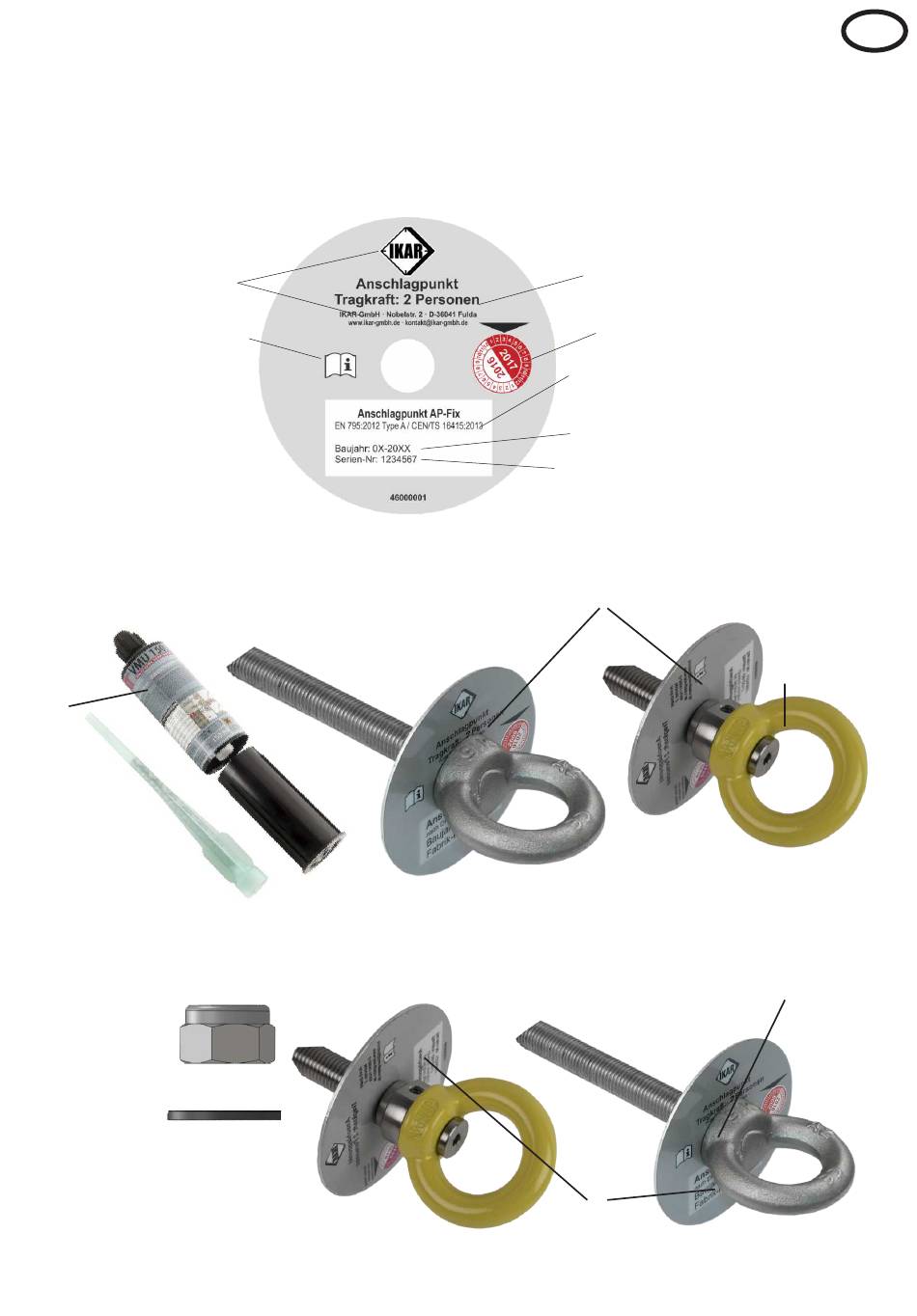

4. Identification plate

Fig. 1
Manufacturer
follow the instructions for use
5. Components of the AP-Fix anchorage point

5.1 Components for installation in concrete

MKT
VMU 150 plus
mortar
5.2. Components for installation on steel structures
1 Pcs Nut
M 16 SSI 8.8 A2
1 Pcs Disk
M 16 A 2
Anchorage point AP-Fix
Anchorage piont
AP-Fix W
15
permissible load
next revision
type designation
year of construction
sequential serial number
Identification plate
Fig. 2
Anchorage point AP-Fix S
Identification
plate
Fig. 2a
GB
Anchorage piont
AP-Fix WB
