1.1.3. Front fender system (FFS)
The Front Fender System consists of 4 elastomer buffers developed especially for this application.
These buffers contribute to protect the fairings in case of a crash from damage (according to the
crash tests prescribed by CIK – FIA).
The CIK front bumper supplied with the vehicle (not fitted on it) is not mandatory in many countries.
If it is mandatory in your country, mount it on the vehicle or contact your next authorized ROTAX
distribution partner or one of their Service Centers.
For assembly proceed as follows:
Dismount the front fender by removal of the 4
plugs.
Note: Pull jerkily at the front fender in the area
of the plugs. This loosens the plugs and
they can be removed manually or with a
screw driver.
Unscrew the 4 elastomer buffers with a long Allen
key (size 6 mm).
Remove the front fender.

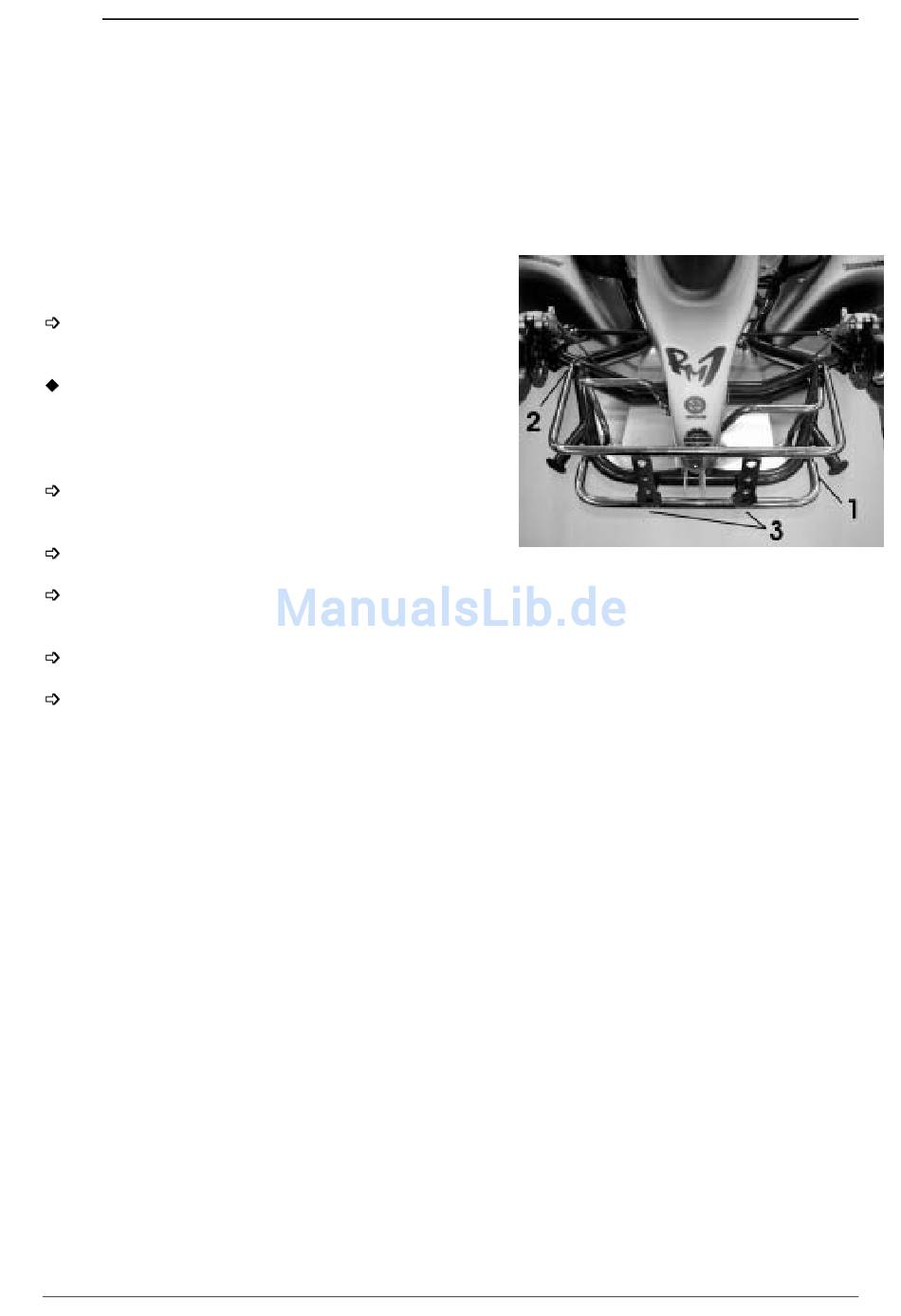

Fit CIK- front bumper on the frame tubes (Pos. 1) and push them down until the fixation
brackets (Pos. 3) touch the elastomer buffer supports.
Fix the CIK- front bumper on the frame brackets (Pos. 2) with the screws supplied with it.
Mount front fender and elastomer buffers.
