Attention: Never knock at the brackets for guidance of the adjustment screws, this would
damage the steering wheel hub.
Note: The tightening torque of 5 Nm / 44 lb. in. has to be respected by all
means, as with a higher torque the steering wheel hub would be damaged.
Attention: A steering wheel not fitted correctly can cause the steering to fail.
Note: A steering wheel of other manufacturers not identical with the original one can cause
problems at actuation of the shift paddle.
Note: If you wish to use the steering wheel of an other manufacturer, please, contact a
ROTAX Service Center.
4.13.

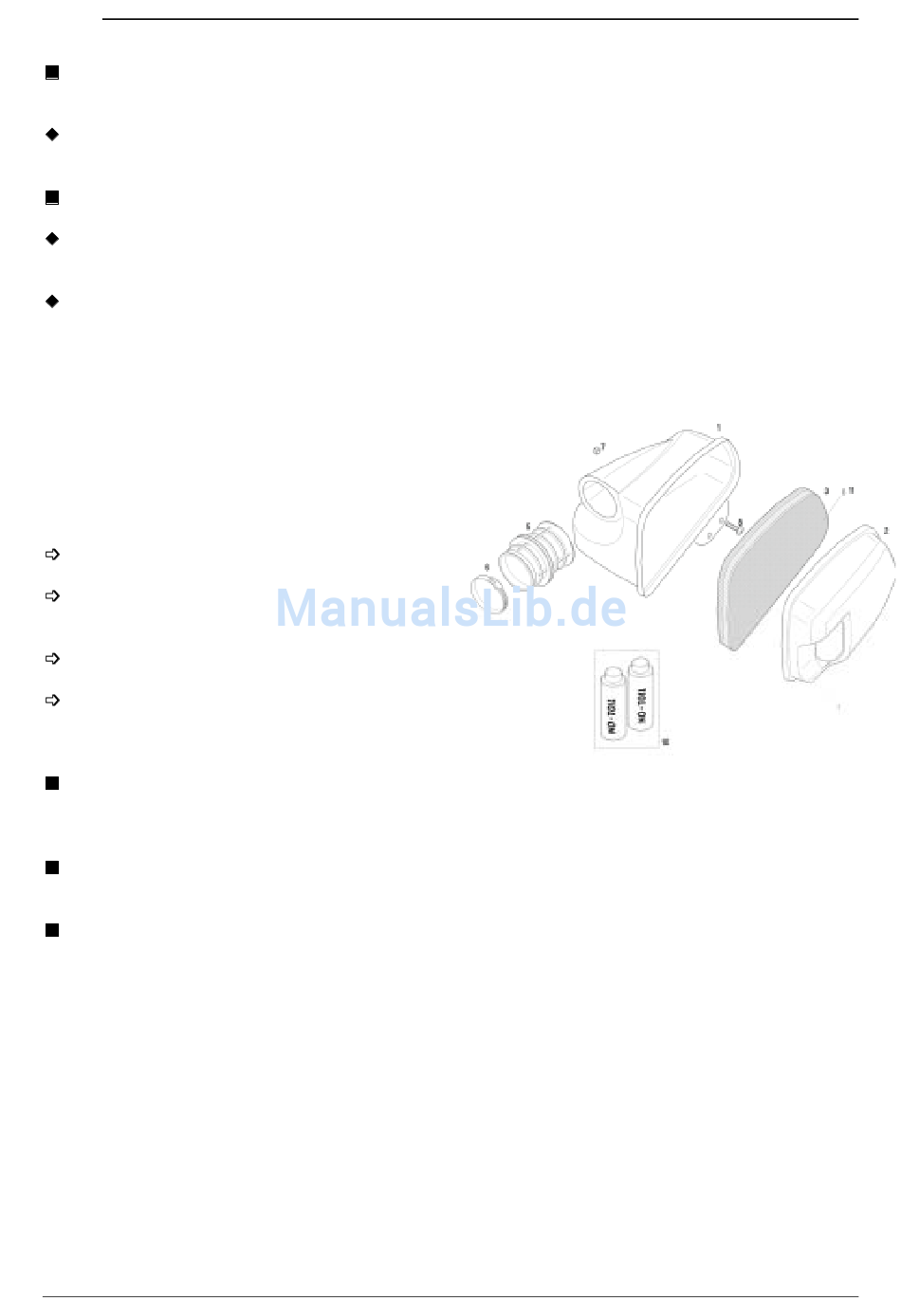

Removal and installation of airfilter

The airfilter has to be cleaned and lubricated
regularly (after every 10 operating hours).
Depending on the ambient conditions (e.g. use on
dusty circuits) it may be neccessary more often.
To remove the air filter proceed as follows:
Remove the fairing left side.
Open the 4 latches at the air filter box cover
(pos.2).
Remove the air filter box cover (pos.2).
Remove the air filter (pos.3).
At reassembly proceed in reverse sequence.
Note: This air filter is composed of several layers and was optimized in view of air passage
and filter effect. If contaminated it can be cleaned with bio-degradable cleaning
agents.
Note: For cleaning and lubricating use the original ROTAX cleaning set (pos.10) (ROTAX
part no. 297 160)
Attention: Never use the vehicle without air filter, this may cause engine damage.
Seite/page 111/132
Operator`s Manual RM1
ROTAX KART RM1 Ausgabe/Edition 05/2003
