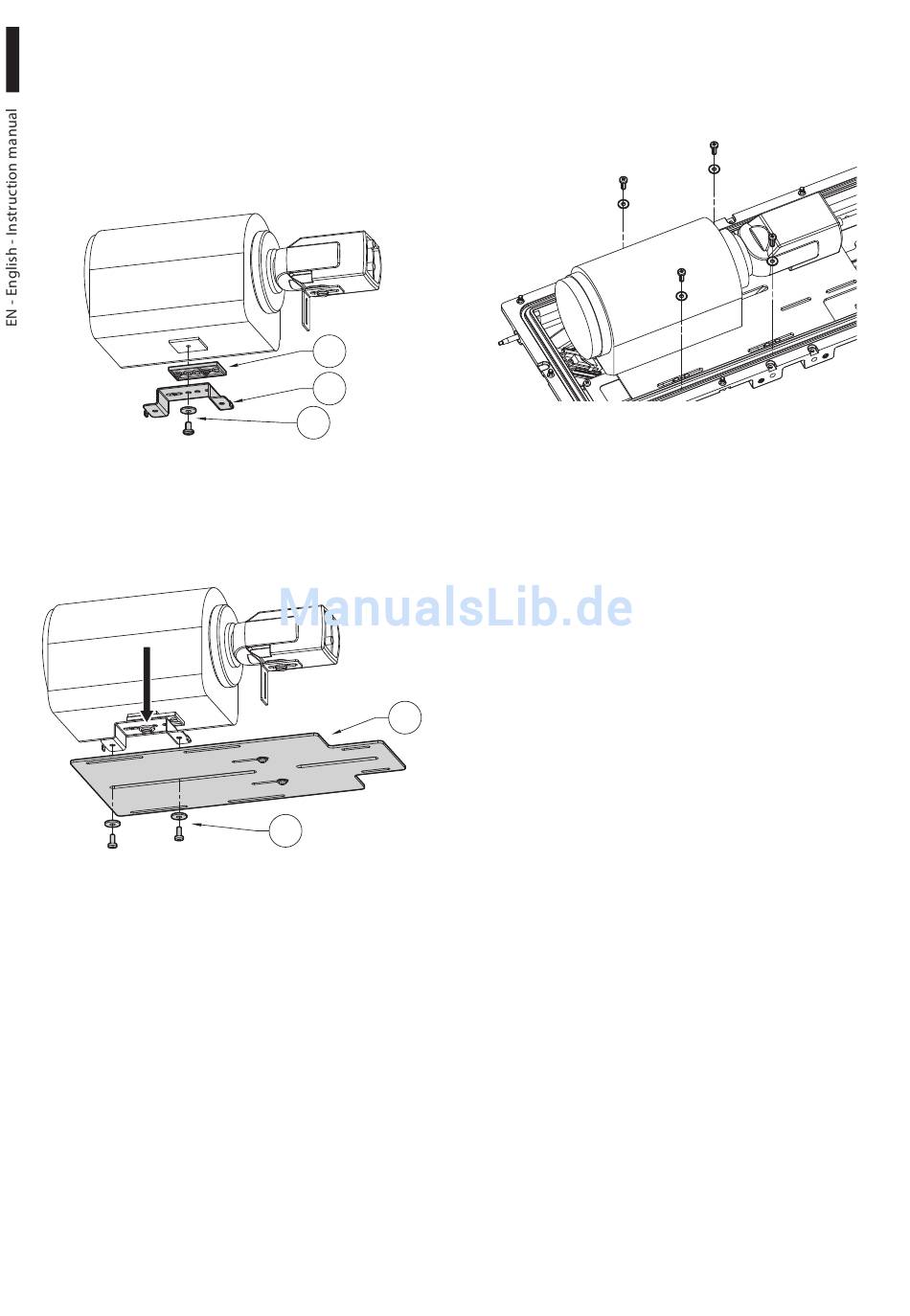

7.2.3 Positioning of the H-20 spacer on
the inner slide
It is possible to fasten the H-20 spacer (02) to the lens.
Connect the camera and fasten the L-shaped bracket
(Fig. 8, page 15). Interpose a plastic spacer (01) of the
required thicknessand fix it by means of washer and
screw (03).
Fig. 12
Position the lens with the spacer on the inner slide
(01) and fasten the spacer by means of the washers
and screws (02) provided as standard.
Fig. 13
Finish the installation as shown in the images (Fig. 10,
page 15 e Fig. 11, page 15).
16
01
02
03
01
02

7.2.4 Internal slide

Shift the inner slide with lens and camera already
fastened into the wanted position and secure it by
means of the washers and screws provided.
Fig. 14
