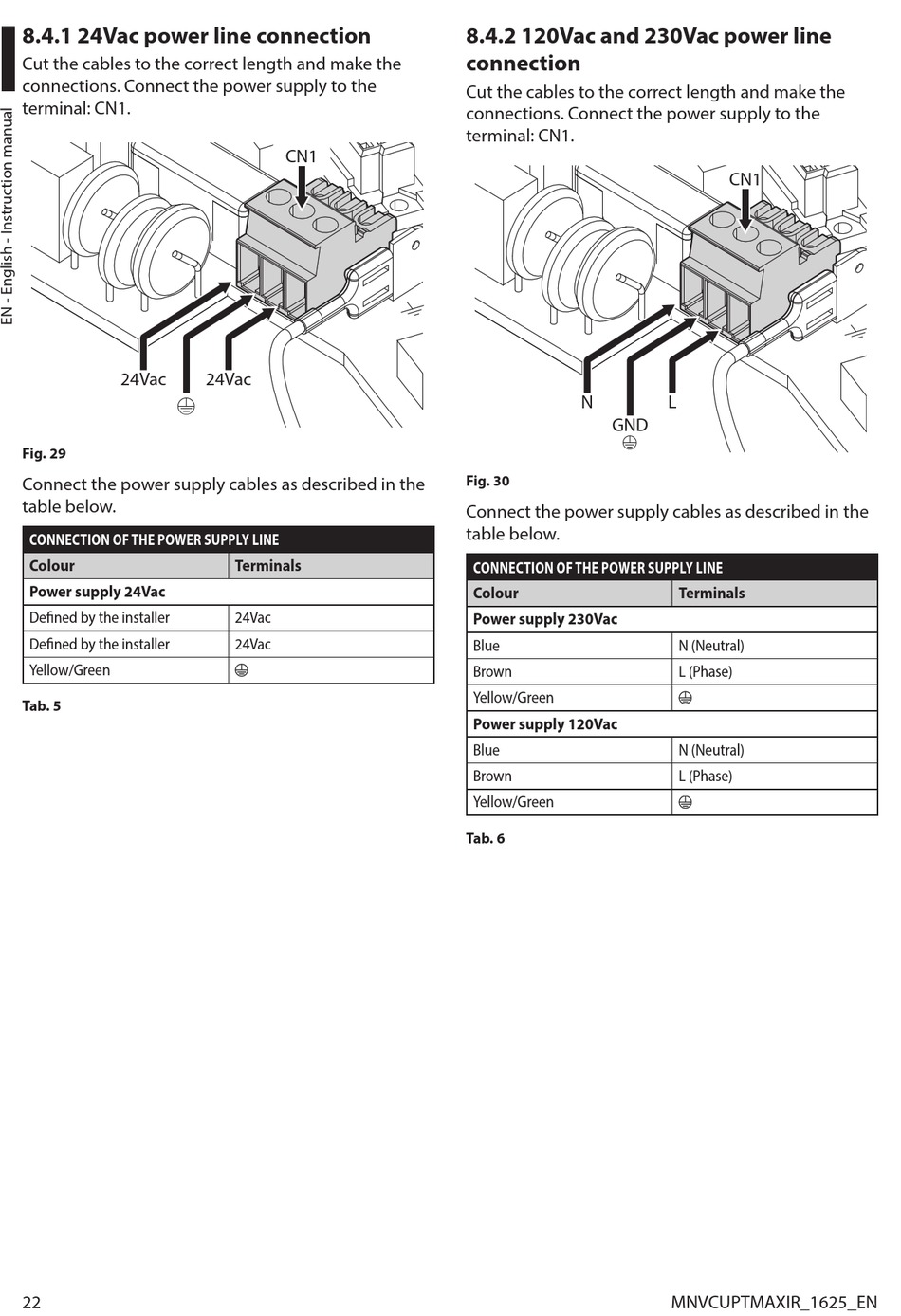

8.4.1 24Vac power line connection

Cut the cables to the correct length and make the
connections. Connect the power supply to the
terminal: CN1.
24Vac
a
Fig. 29
Connect the power supply cables as described in the
table below.
CONNECTION OF THE POWER SUPPLY LINE
Colour
Power supply 24Vac
Defined by the installer
Defined by the installer
Yellow/Green
Tab. 5
22
CN1
24Vac
Terminals
24Vac
24Vac
8.4.2 120Vac and 230Vac power line
connection
Cut the cables to the correct length and make the
connections. Connect the power supply to the
terminal: CN1.
N
GND
a
Fig. 30
Connect the power supply cables as described in the
table below.
CONNECTION OF THE POWER SUPPLY LINE
Colour
Power supply 230Vac
Blue
Brown
Yellow/Green
Power supply 120Vac
Blue
Brown
Yellow/Green
Tab. 6
CN1
L
Terminals
N (Neutral)
L (Phase)
N (Neutral)
L (Phase)
