7.4.3 Connection of the alarm inputs, of
the twilight switch and of the relays
CAUTION! TNV-1 installation type. The
installation is type TNV-1, do not connect it
to SELV circuits.
CAUTION! In order to reduce the risk of fire,
only use cable with sections greater than or
equal to 0.13mm² (AWG 26).
Standard version

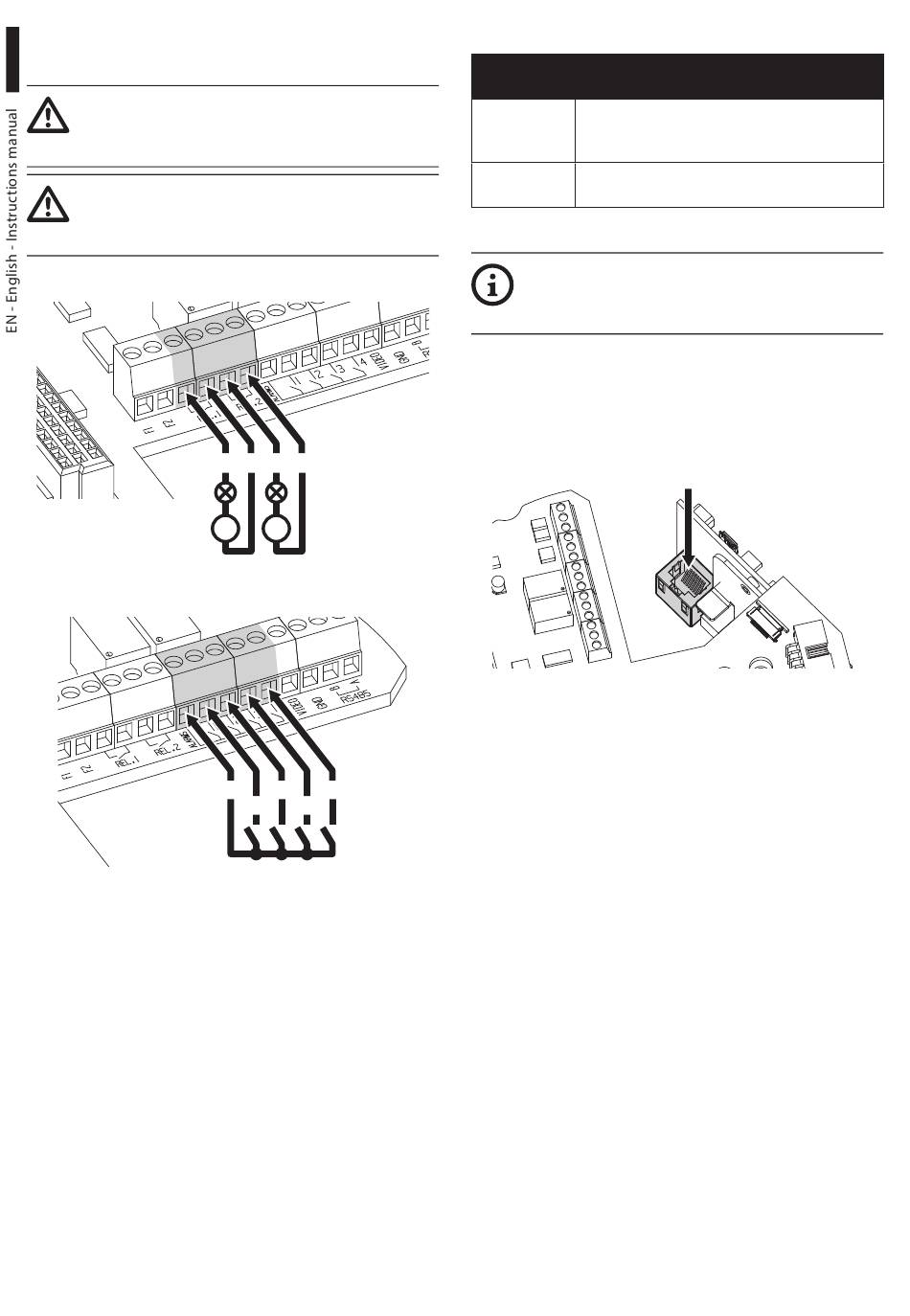

Fig. 17 Relay contact connection.
Fig. 18
Alarms connection.
16
O1 C1 O2 C2
V V
AGND AL2 AL4
AL1 AL3
Version with LED illuminators
CONNECTION OF THE ALARM INPUTS, OF THE
TWILIGHT SWITCH AND OF THE RELAYS
AL1, AL2, Self-powered alarm inputs referred to the
AL3, AL4 e AGND shared terminal
AGND
O1-C1 e Clean output contacts, can be activated by
O2-C2 alarm or by user control
Tab. 4
Connect the twilight switch to the AGND
and AL1 terminals. AL1 is the default alarm
contact for the light sensitive switch.
7.5 Connection of the Ethernet
cable
Connect the Ethernet cable to the connector (7.3
Connector board description, page 13).
Fig. 19
Ethernet
