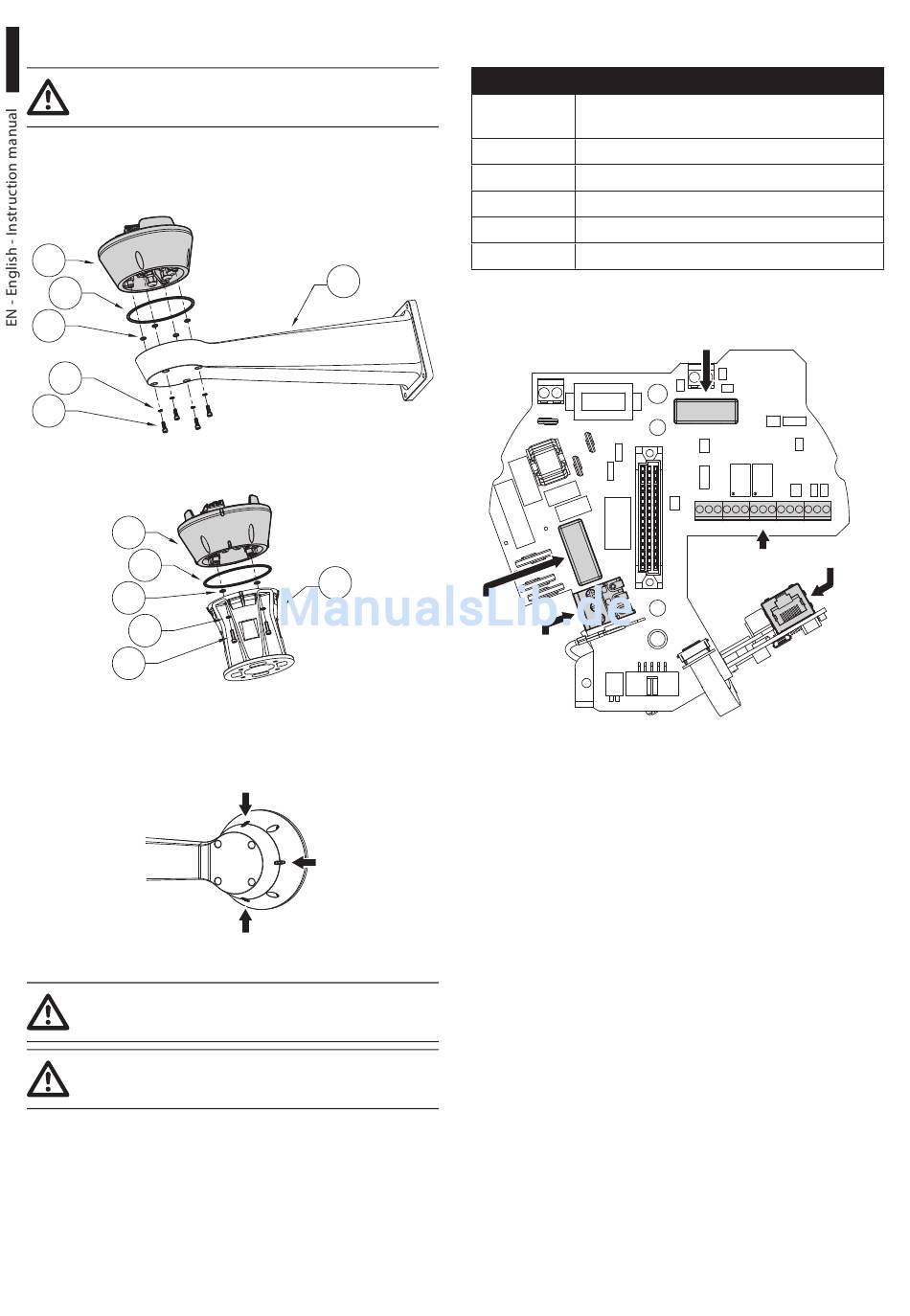

8.2 Fixing the base to the support

Use the screws and the washers supplied
with the base.
Once you have positioned the gasket (01), fix the
base (02) onto the bracket (03) with screws (04),
serrated washers (05) and screw rings (06).
02
01
06
05
04
Fig. 24
02
01
06
05
04
Fig. 25
Align the 3 notches on the base with those on the
support as shown in the following figure.
Fig. 26
Put some thread-locker into the holes for
screws (Loctite 243®).
Pay attention to the fixing. Tightening
torque: 6Nm.
20

8.3 Connector board description

CONNECTOR BOARD DESCRIPTION
Connector/
Component
CN1
CN4
Ethernet
F1
F2
03
Tab. 4
03
F2
Fig. 27
Function
Power supply for the board
Signal cables
Ethernet
Fuse
Fuse
F1
CN1
MNVCUPTMAXIR_1625_EN
CN4 Ethernet
