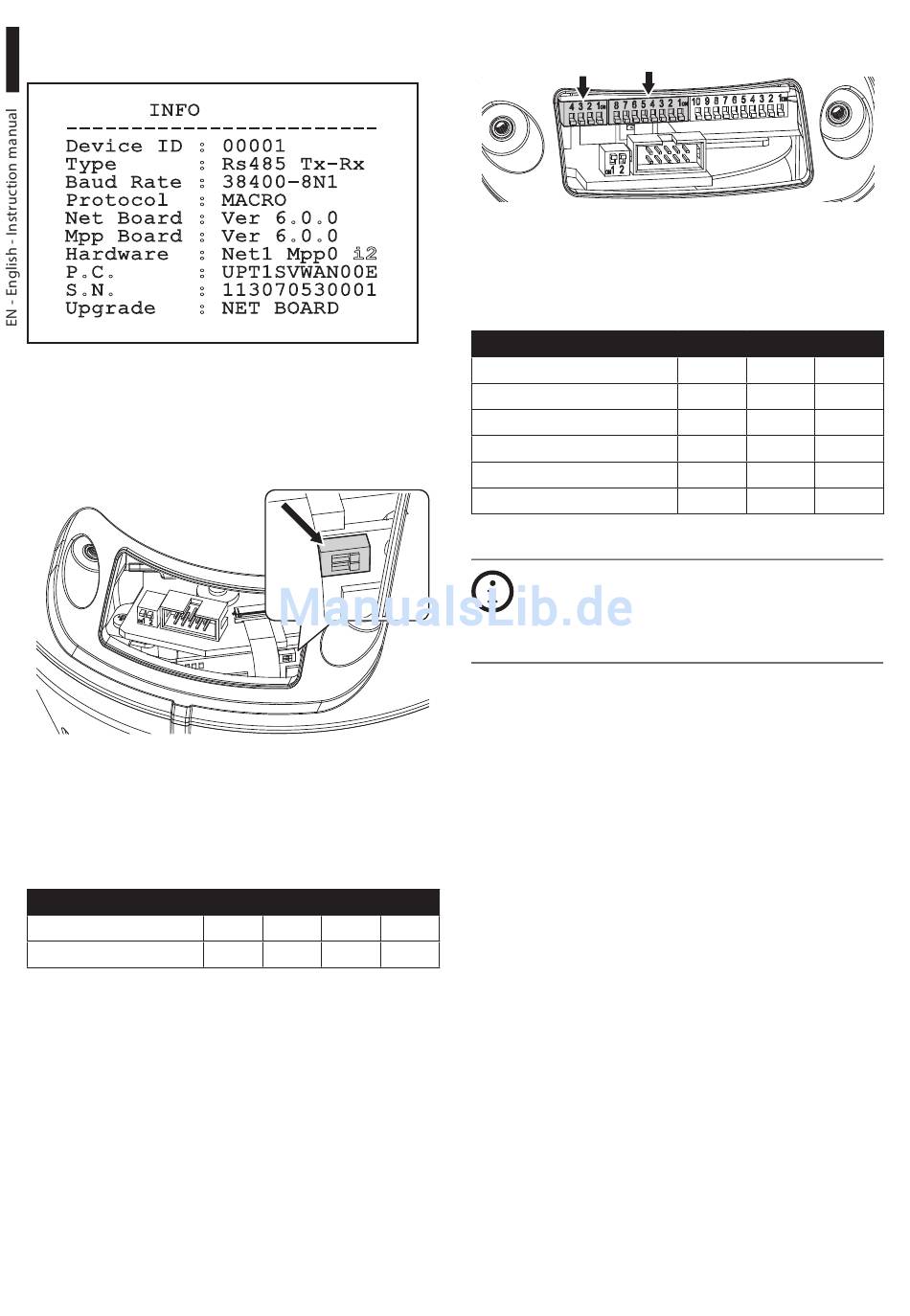

If in the INFO panel "i2" is displayed, it means RS485
mode was set (Fig. 102, page 48).
INFO
------------------------
Device ID : 00001
Type : Rs485 Tx-Rx
Baud Rate : 38400-8N1
Protocol : MACRO
Net Board : Ver 6.0.0
Mpp Board : Ver 6.0.0
: Net1 Mpp0 i2
Hardware
P.C. : UPT1SVWAN00E
S.N. : 113070530001
Upgrade : NET BOARD
Fig. 102
Turn off the P&T.
Bring the dip-switches in the figure to OFF (Fig. 103,
page 48).
Fig. 103
Set the RS485 telemetry protocol on Pelco-D,
configuring the dip-switch of the communication
protocol (DIP2) as indicated in the following table (
Tab. 15, page 48).
DIP2 CONFIGURATION
Protocol
PELCO D
Tab. 15
48
SW 4 SW 3 SW 2
ON OFF OFF
Fig. 104
Set the RS485 baudrate, configuring the dip-switch
(DIP1) for baudrate adjustment as indicated in the
following table (Tab. 16, page 48).
DIP1 CONFIGURATION
Baudrate
38400
19200
9600
4800
2400
Tab. 16
The RS485 baudrate of the Ulisse unit
must correspond to that of the camera.
Communication is not possible in the event
of discrepancies.
Enable display of the INFO panel configuring the SW1
of the first dip-switch (DIP1) on OFF (Fig. 99, page 47).
Connect the electrical power supply to switch on the
unit.
SW 1
ON
DIP2
DIP1
SW 4
ON
OFF
ON
OFF
ON
MNVCUPTMAXIR_1625_EN
SW 3 SW 2
ON ON
ON ON
OFF ON
OFF ON
OFF ON
