15 Maintenance

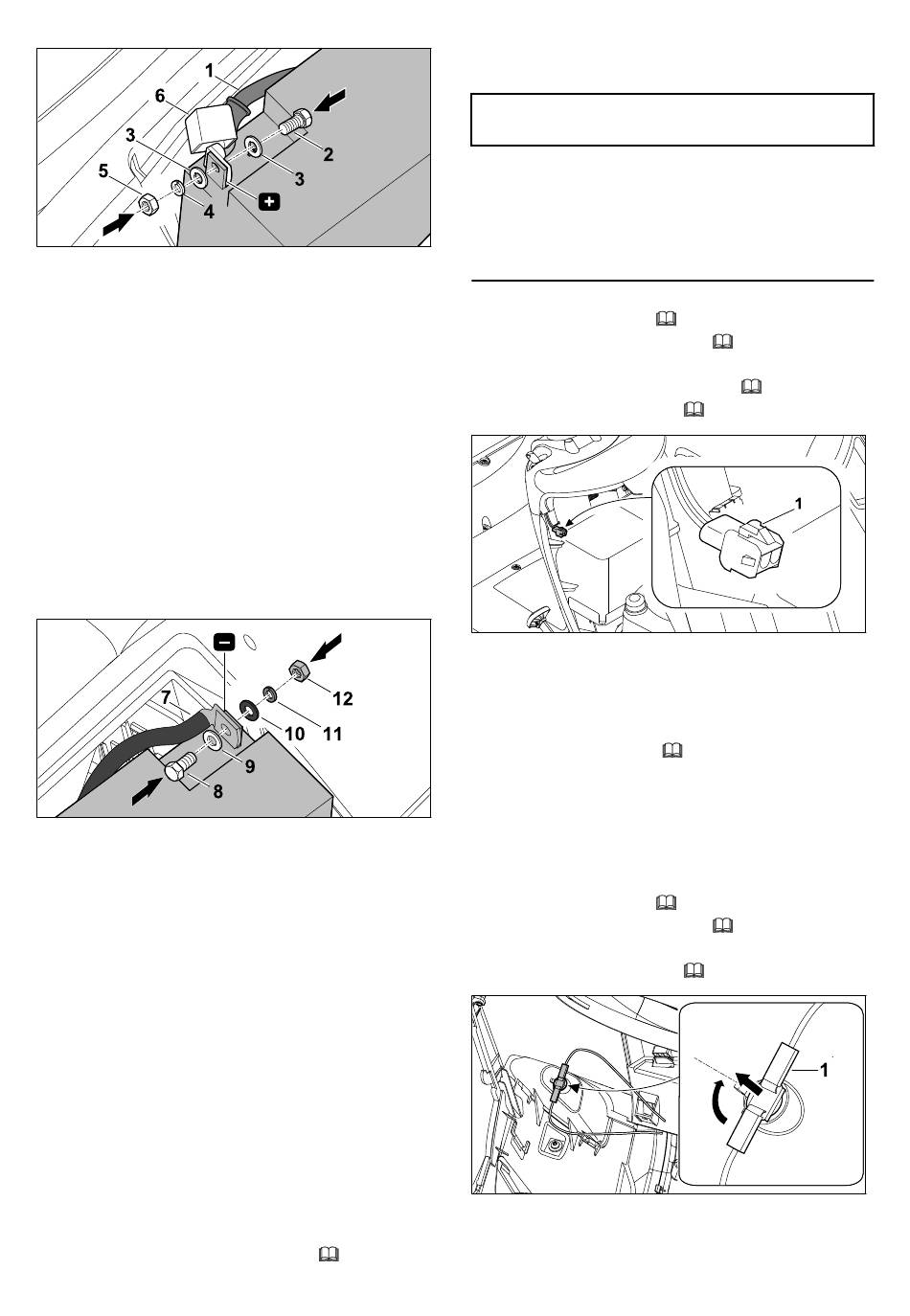

► Fit the red cable (1) against the positive termi‐
nal of the battery.
► Insert the screw (2) through the washer (3).
► Insert the screw (2) and washer (3) through
the hole of the connecting cable and the bore
of the battery terminal.
► Insert the washer (3) and spring washer (4)
onto the screw (2) from the other side.
► Turn the nut (5) onto the screw (2).
► Place 2 wrenches against the nut (5) and
screw (2).
► Tighten the nut (5) to 6–8 Nm and hold it in
place with a second wrench.
► Fit the cap (6) to completely cover the screw
connection.
The positive terminal is now connected.
► Place the black cable (7) against the negative
terminal of the battery.
► Insert the screw (8) through the washer (9)
through the hole of the connecting cable and
through the bore of the battery terminal.
► Insert the washer (10) and spring washer (11)
onto the screw (8) from the other side.
► Turn the nut (12) onto the screw (8).
► Place 2 wrenches against the nut (12) and
screw (8).
► Tighten the nut (12) tight to a torque of 6–
8 Nm and hold it in place with a second
wrench.
The negative terminal is now connected.
► Lift the battery.
► Tilt the battery slightly toward the inside.
► Carefully guide the battery downward.
The connecting cables are stowed properly in
the battery compartment.
► Close the battery compartment,
0478-192-9615-A
15.6.3
Charging the battery via the charging plug
NOTICE
Incorrect use of the chargers may cause damage
to the battery or to the electrical system of the
ride-on mower.
► Charge the battery only with the indicated
chargers in the installed condition.
► Refer to the User Manual of the charger.
► Place the ride-on mower on a level surface.
► Shut off the engine,
► Engage the parking brake,
► Remove the ignition key and store it securely.
► Detach the grass catcher box,
► Open the engine hood,
► Plug the STIHL ADL 012 diagnostic charger or
any other suitable charger into the charger
plug (1).
Charging the battery outside the ride-on mower
► Remove the battery,
► Recharge the battery with a suitable charger
as described in the User Manual of the
charger.
15.7
► Place the ride-on mower on a level surface.
► Shut off the engine,
► Engage the parking brake,
► Remove the ignition key and store it securely.
► Open the engine hood,
► Turn the socket (1) by approx. 90° and pull it
out.
15.6.1.2.

Charging the battery

9.2.
15.2.1.
15.6.2.2.
Replacing the headlight lamp
9.2.
15.2.1.
English
11.5.1.
6.2.2.
11.5.1.
75
