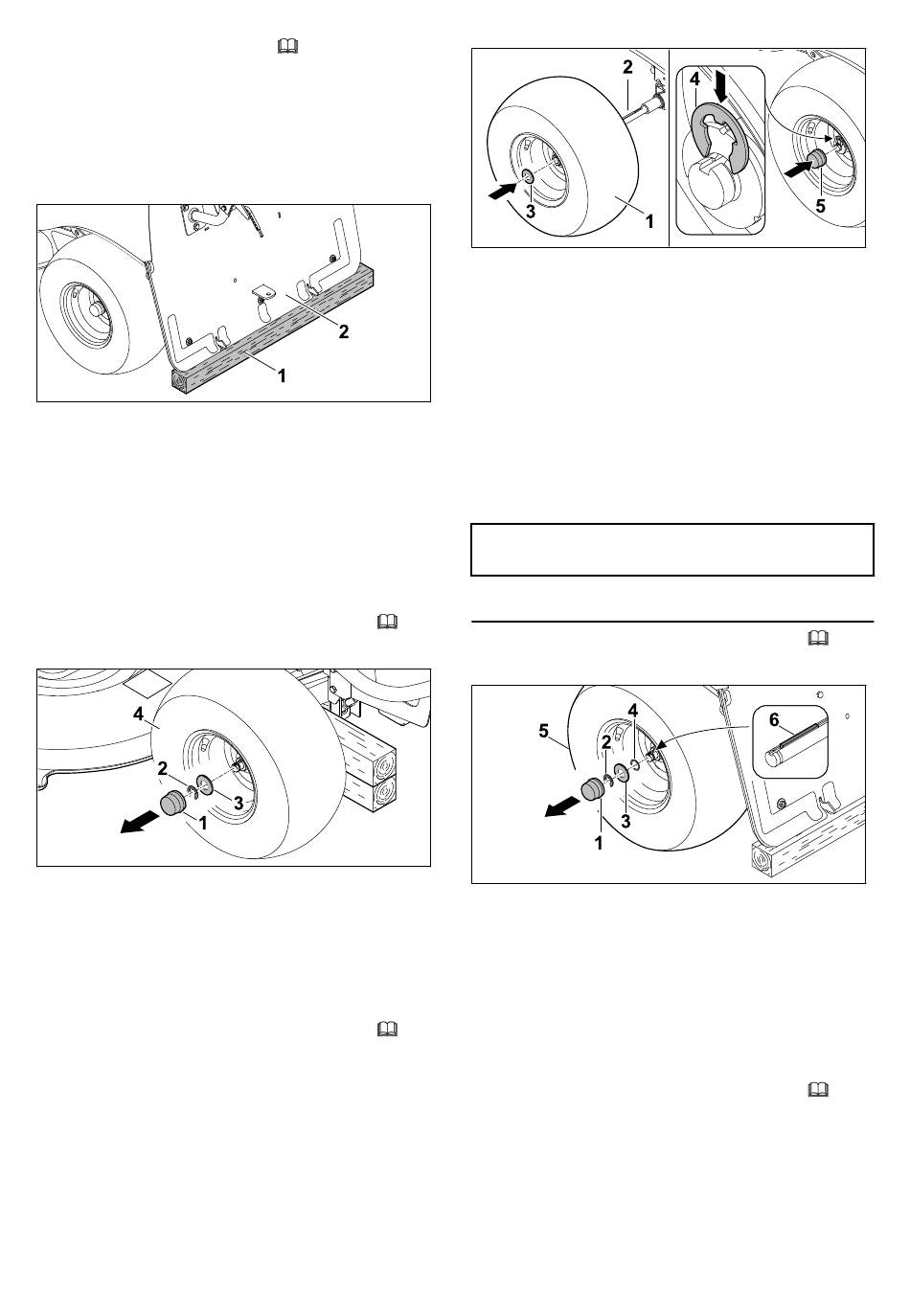

► Engage the parking brake,
► Remove the ignition key and store it securely.
► Secure the ride-on mower so that it cannot roll
away.
► Lift the ride-on mower at the rear with a suita‐
ble lifting jack. Engage the help of another per‐
son if necessary.
► Push a non-skid support of sufficient load-
bearing capacity and with a height of at least
120 mm (1) under the rear panel (2).
► Carefully prop up the ride-on mower on the
support.
15.4.2 Removing and mounting the front
wheels
15.4.2.1 Removing the front wheels
► Ease the pressure on the front wheels,
15.4.1.
► Remove the cap (1).
► Use a suitable screwdriver to remove the
retaining ring (2).
► Remove the washer (3) from the wheel axle.
► Pull off the front wheel (4) from the wheel axle.
15.4.2.2 Installing the front wheels
► Ease the pressure on the front wheels,
15.4.1.
► Clean the wheel axle with a soft brush.
► Grease the wheel axle.
72
11.5.1.
► Push the wheel (1) onto the wheel axle (2).
► Push the washer (3) onto the wheel axle.
► Press the retaining ring (4) into the groove in
► Place the cap (5) on the wheel axle (2).
15.4.3

15.4.3.1 Removing the rear wheels

When removing the rear wheels, make sure not
to lose the feather keys.
► Ease the pressure on the rear wheels,
► Remove the cap (1).
► Use a suitable screwdriver to remove the
► Pull the washers (3, 4) from the wheel axle.
► Pull the rear wheel (5) from the wheel axle.
15.4.3.2 Attaching the rear wheels
► Ease the pressure on the rear wheels,
► Clean the wheel axle with a soft brush.
► Grease the wheel axle with lubricating grease.
The valve points away from the ride-on
mower.
the wheel axle.
The retaining ring snaps into place.
Removing and mounting the rear
wheels
NOTICE
15.4.1.
retaining ring (2).
The feather key (6) must remain in the groove
of the wheel axle.
15.4.1.
15 Maintenance
0478-192-9615-A
