Overview

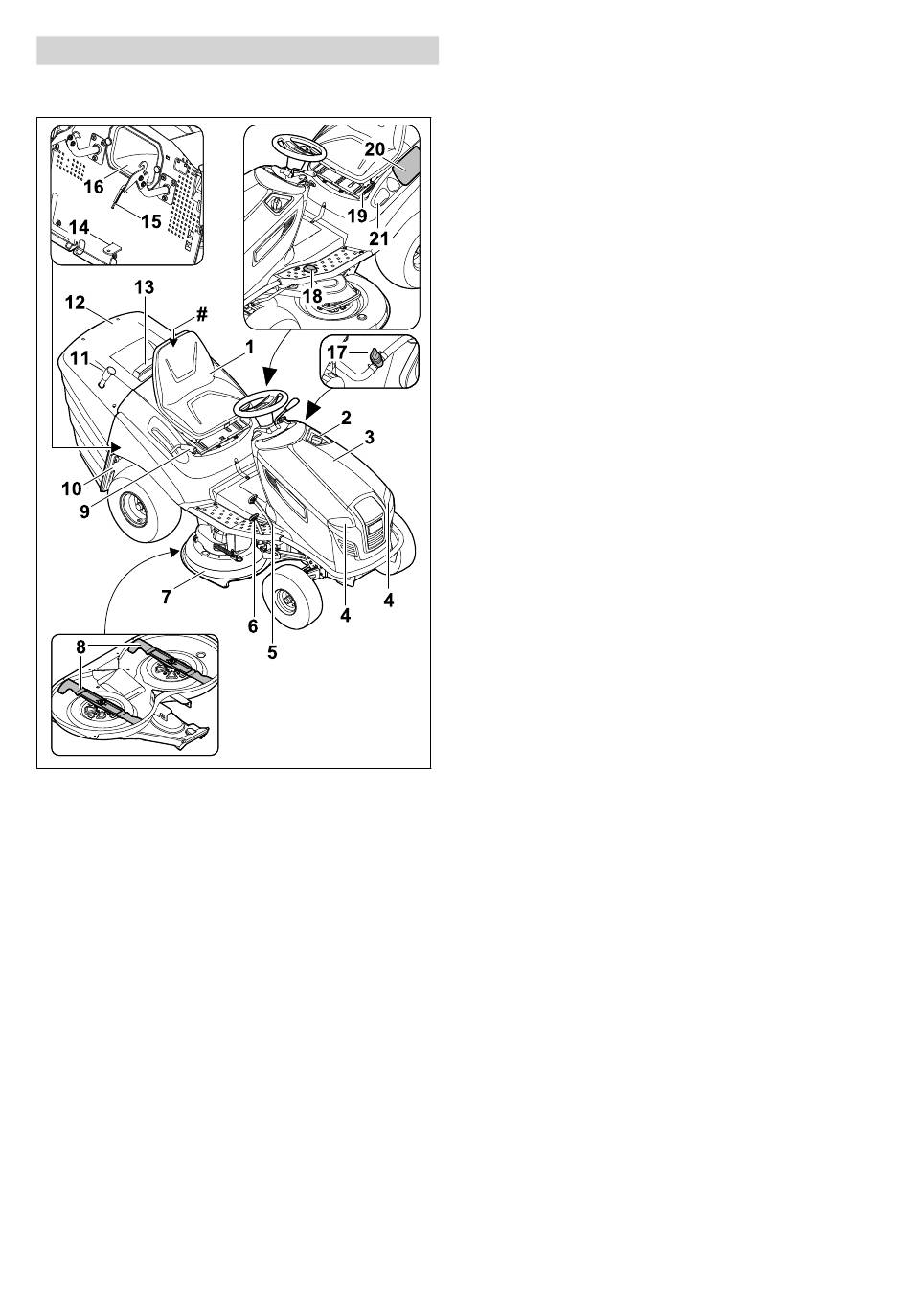

3.1 Ride-on mower
1 Driver's seat with seat switch
The driver's seat acts as the user's seat and
as a safety device.
2 Fuel tank cap
The fuel tank cap closes the opening for filling
gasoline.
3 Engine hood
The engine hood covers the engine.
4 Headlights
The headlights illuminate the working area.
5 Brake pedal
The brake pedal is used to slow down and
stop the ride-on mower.
6 Gas pedal
The gas pedal is used to adjust the self-pro‐
pulsion speed.
7 Mowing deck
The mowing deck consists of two blades and
the mowing deck housing.
44
8 Blades
The blades mow the grass.
9 Cutting height lever
The lever is used to set the cutting height.
10 Gearbox freewheel lever
The lever is used to uncouple and engage the
gearbox.
11 Grass catcher box lever
The lever is used to empty the grass catcher
box.
12 Grass catcher box
The grass catcher box collects the grass cut‐
tings.
13 Grass catcher box release lever
The lever is used to fasten or unlock the
grass catcher box.
14 Trailer hitch
The trailer hitch is used to attach and pull
loads.
15 Level sensor
The level sensor measures the filling level of
the grass catcher box.
16 Discharge chute
The discharge chute directs the mowed grass
away from the blades to the grass catcher
box.
17 Fuel cock
The fuel cock shuts off the fuel feed. It is loca‐
ted underneath the engine hood.
18 Safety switch for mowing in reverse
The safety switch releases the blades in the
reverse direction of travel.
19 Driver's seat lever
The lever adjusts the position of the driver's
seat.
20 Battery compartment
The battery compartment houses the battery.
21 Beverage compartment
The beverage compartment stores beverage
containers.
# Rating plate with serial number
The rating plate with serial number is located
underneath the fold-up driver's seat.
