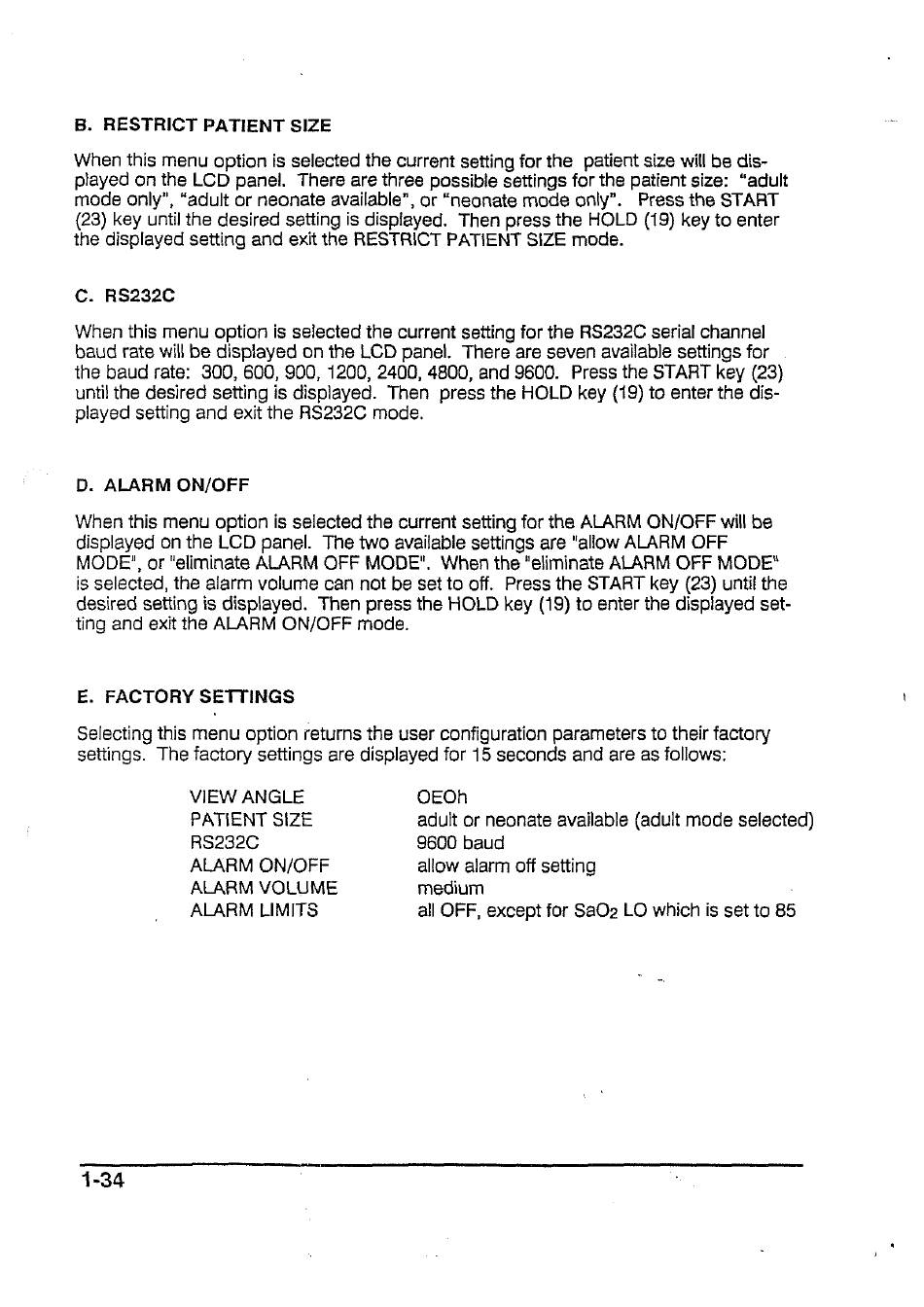

B.
RESTRICT PATIENT SIZE
When this menu option is selected the current setting for the patient size will be dis-
played on the LCD panel. There are three possible settings for the patient size: "adult
mode only", "adult or neonate available", or "neonate mode only".
Press the START
(23) key until the desired setting is displayed.
Then press the HOLD (19) key to enter
the displayed setting and exit the RESTRICT PATIENT SIZE mode.
C. RS232C
When this menu option is selected the current setting for the RS232C serial channel
baud rate will be displayed on the LCD panel. There are seven available settings for
the baud rate:
300, 600, 900, 1200, 2400, 4800, and 9600.
Press the START key (23)
until the desired setting is displayed. Then
press the HOLD key (19) to enter the dis-
played setting and exit the RS232C mode.
D. ALARM ON/OFF
When this menu option is selected the current setting for the ALARM ON/OFF will be
displayed on the LCD panel. The two available settings are "allow ALARM OFF
MODE", or "eliminate ALARM OFF MODE".
When the "eliminate ALARM OFF MODE"
is selected, the alarm volume can not be set to off. Press the START key (23) until the
desired setting is displayed. Then press the HOLD key (19) to enter the displayed set-
ting and exit the ALARM ON/OFF mode.
E. FACTORY SETTINGS
Selecting this menu option returns the user configuration parameters to their factory
settings. The factory settings are displayed for 15 seconds and are as follows:
VIEW ANGLE
OEOh
PATIENT SIZE
adult or neonate available (adult mode selected)
RS232C
9600 baud
ALARM ON/OFF
allow alarm off setting
ALARM VOLUME
medium
:
ALARM
LIMITS
all OFF, except for SaO2 LO which is set to 85
1-34
