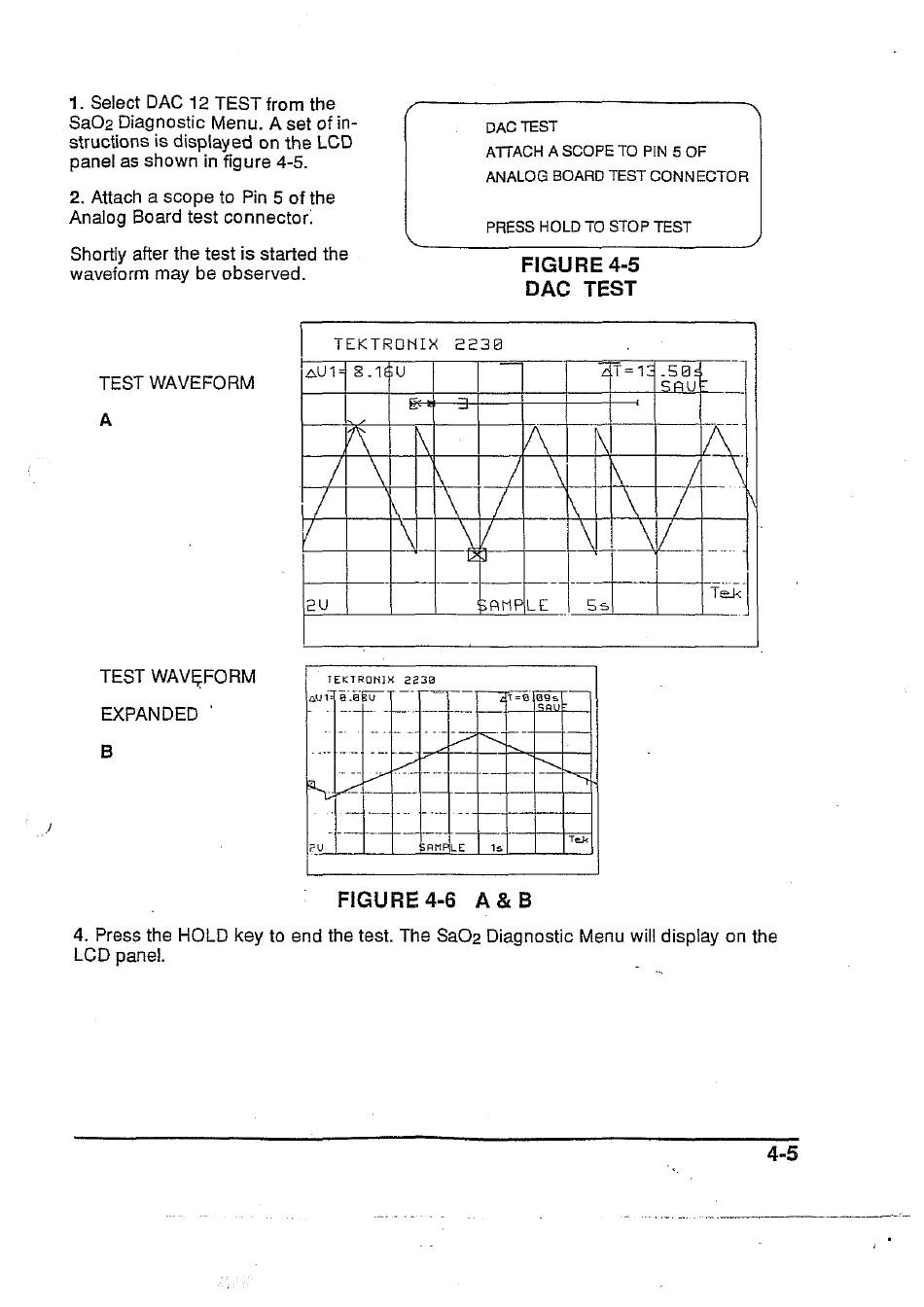

1. Select DAC 12 TEST from the
SaOz Diagnostic Menu. A set of in- DAC TEST
structions is displayed on the LCD ATTACH A SCOPE TO PIN 5 OF
panel as shown in figure 4-5.
ANALOG BOARD TEST CONNECTOR
2. Attach a scope to Pin 5 of the
Analog Board test connector. PRESS HOLD TO STOP TEST
Shortly after the test is started the
FIGURE 4-5
waveform may be observed.
y DAC TEST
TEKTRONIX
TEST WAVEFORM 113149
A
TEST WAVEFORM TEKTRONIX 2238
- suite lau TO
EXPANDED ' un
B
FIGURE 4-6 A&B
4. Press the HOLD key to end the test. The SaO2 Diagnostic Menu will display on the
LCD panel.
4-5
