1.2

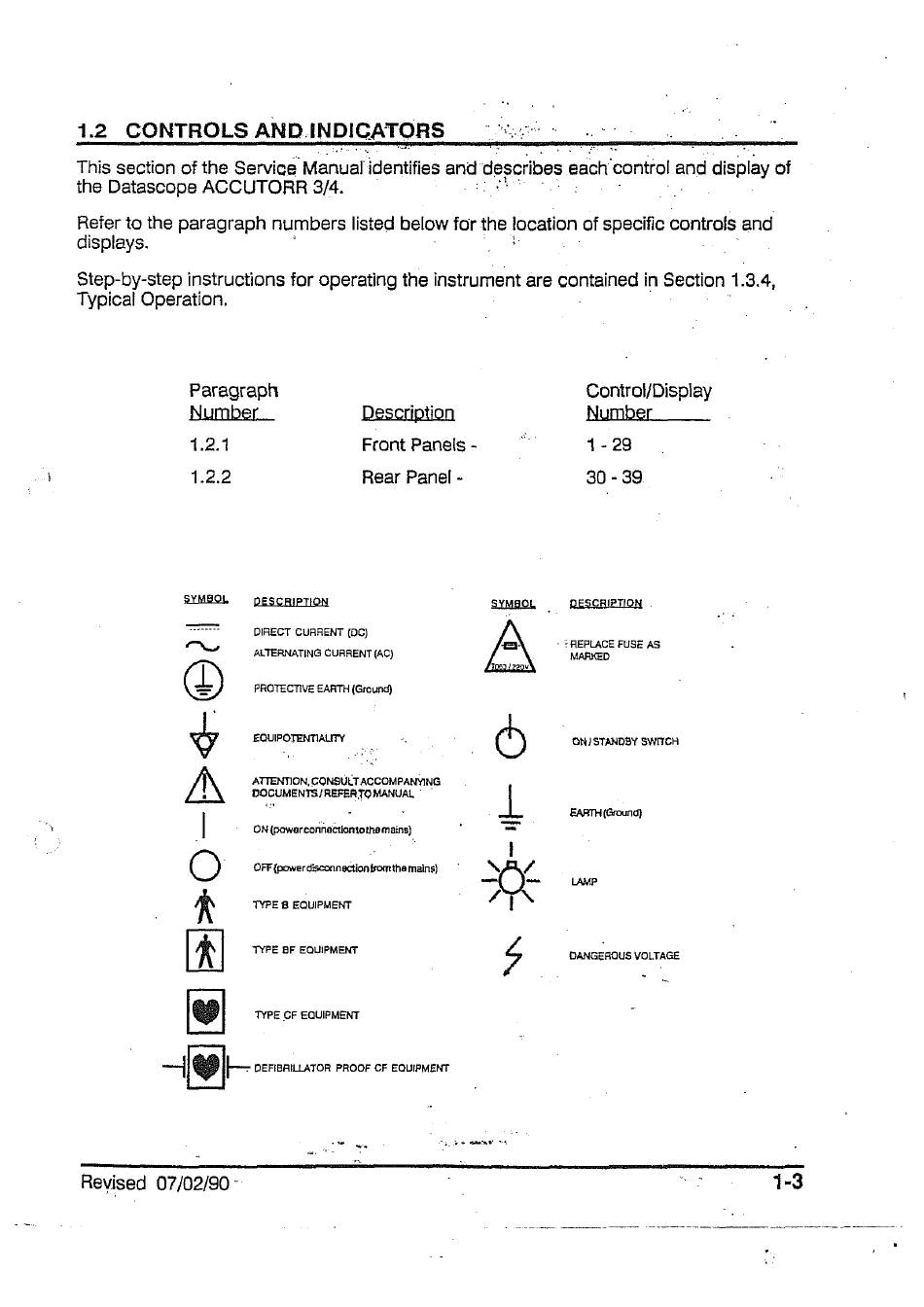

CONTROLS AND. INDICATORS
This section of the Service Manual identifi es and describes each control and display of
the Datascope ACCUTORR 8/4.
Refer to the paragraph numbers listed below for the location of specific controls and
displays.
Step-by-step instructions for operating the instrument are contained i in Section 1. 3.4,
Typical Operation.
Paragraph
Control/Display
Number
Description
Number o
1.2.1
Front Panels -
1-29
1.2.2
Rear Panel -
30 - 39
SYMBOL © DESCRIPTION
SYMBOL
DESCRIPTION
ーー
DIRECT CURRENT (DC)
ALTERNATING CURRENT (AC)
PROTECTIVE EARTH (Ground)
ATTENTION, CONSULT ACCOMPANYING
DOCUMENTS/
REFER TO MANUAL
ON (Powerconnectiontol the mains)
OFF {power disconnection
from tha mains)
TYPE 8 EQUIPMENT
TYPE 8F EQUIPMENT
TYPE CF EQUIPMENT
トー
DEFIBAILLATOR PROOF CF EQUIPMENT
Revised 07/02/90 -
EQUIPOTENTIALITY
.
"
O
ON/ STANDBY SWITCH
1
~
> SREPLACE FUSE AS
MARKED
EARTH (Ground}
DANGEROUS VOLTAGE
