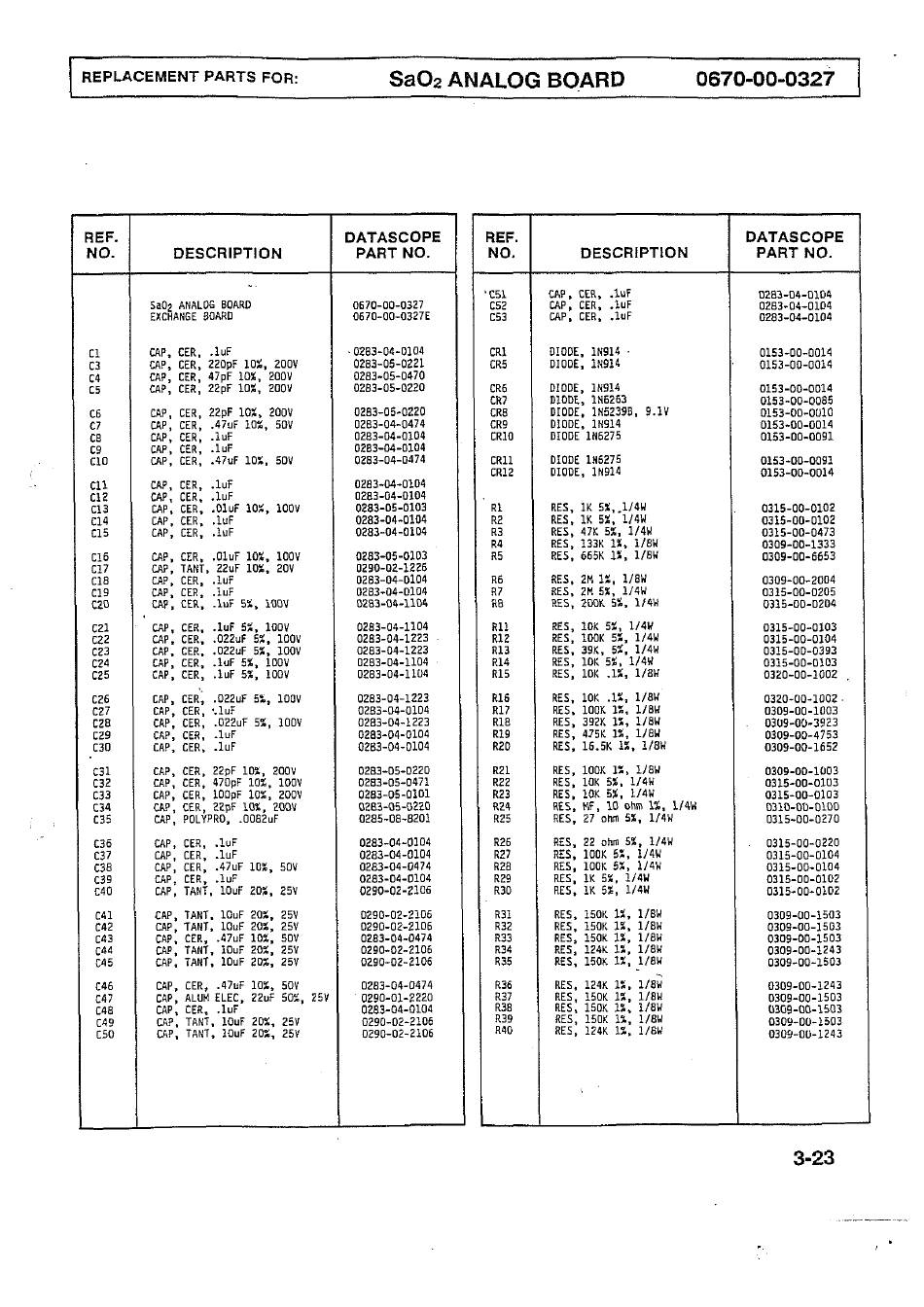

REPLACEMENT PARTS For: SaQ2 ANALOG BOARD 0670-00-0327
REF. DATASCOPE REF. DATASCOPE
NO. DESCRIPTION PART NO. NO. DESCRIPTION PART NO.
'C51 CAP, CER, uf 0283-04-0104
Sa02 ANALOG BOARD 0670-00-0327 C52 CAP, CER, .1uF 0283-04-0104
EXCHANGE BOARD 0670-00-0327E 653 CAP, CER, „luF 0283-04-0104
cl CAP, CER, .luF - 0283-04-0104 CRI DIODE, iN914 - 0153-00-0014
C3 CAP, CER, 220pF 10%, 200Y 0283-05-0221 CRS DIODE, 1N914 0153-00-0014
C4 CAP, CER, 47pF 10%, 200Y 0283-05-0470
cs CAP, CER, 22pF 10%, 200Y 0283-05-0220 CRE DIODE, 14914 0153-00-0014
CR? DIODE, 1N6263 0153-00-0085
C6 CAP, CER, 22pF 10%, 200V 0283-05-0220 CRB DIODE, 1N52398, 9.1V 0153-00-0010
c CAP, CER, .47uF 104, 50V 0283-04-0474 CR9 DIODE, 18914 0153-00-0014
CB CAP, CER, .LuF 0283-04-0104 CRIO DIODE 145275 0153-00-0091
C9 CAP, CER, LUF 0283-04-0104
cio CAP, CER, .47uF 10%, 50V 0283-04-0474 CR11 DIODE 1N6275 0153-00-0091
CR12 DIODE, 1N914 0153-00-0014
cit CAP, CER, „luF 0283-04-0104
ciz CAP, CER, .LUF 0283-04-0104 .
cia CAP, CER, .OluF 10%, 100Y 0283-05-0103 RL RES, 1K 5%, 1/48 0315-00-0102
14 CAP, CER, „luF 0283-04-0104 R2 RES, 1X 5%, 1/4W 0315-00-0102
C15 CAP, CER, .luF 0283-04-0104 R3 RES, 47K 5%, 1/4W 0315-00-0473
R4 RES, 133K 1%, 1/8W 0309-00-1333
ci6 CAP, CER, .OluF 10%, 100V 0283-05-0103 RS RES, 665K 1%, 1/ВН 0309-00-6653
(17 CAP, TANT, 22uF 10%, 20V 0290-02-1226
cia CAP, CER, .luf 0283-04-0104 R6 RES, 2M 14, 1/BW 0309-00-2004
cig CAP, CER, .iuF 0283-04-0104 87 RES, 2M 5%, 1/4W 0315-00-0205
cao CAP, CER, „luř 5%, 1004 0283-04-1104 RB RES, 200K 5%, 1/4W 0315-00-D204
621 CAP, CER, -luF 5%, 100V 0283-04-1104 ΕΙ RES, 10K 5%, 1/44 0315-00-0103
22 CAP, CER, „O22uF 5%, 100V 0283-04-1223 R12 RES, 100K 5%, 1/4W 0315-00-0104
623 CAP, CER, .D22uF 5%, 100Y 0283-04-1223 R13 RES, 39K, 5%, 1/44 0315-00-0393
C24 CAP, CER, „luF 5%, 100Y 0283-04-1104 R14 RES, 10K 5%, 1/44 0315-00-0103
625 CAP, CER, .luF 5%, 100V 0283-04-1104 R15 RES, 10K «1, 1/8 0320-00-1002 .
026 CAP, CER, .D22UF 5%, 100V 0283-04-1223 R16 RES, 10K .1%, 1/84 0320-00-1002 ・
C27 CAP, CER, lu 02B3-04-0104 R17 RES, 100K 1%, 1/8W 0309-00-1003
28 CAP, CER, .022uF 5%, 100Y 0283-04-1223 R18 RES, 392K 1%, 1/84 0309-00~3923
C29 CAP, CER, „luF 0283-04-0104 Rig RES, 475K 1%, 1/88 0309-00-4753
c30 CAP, CER, .luF 0283-04-0104 R20 RES, 16.5К 1%, 1/8W 0309-00-1652
631 CAP, CER, 22pF 10%, 200V 0283-05-0220 821 RES, 100K 1%, 1/8W 0309-00-1003
c32 CAP, CER, 470pF 10%, 100V 0283-05-0471 R22 RES, 10K 5%, 1/44 0315-00-0103
033 CAP, CER, 100pF 10%, 200V 0283-05-0101 R23 RES, 10K 5%, 1/4W 0315-00-0103
634 CAP, CER, 22nF 10%, 2004 0283-05-0220 R24 RES, MF, 10 ohm 1%, 1/48 0310-00-0100
035 CAP, POLYPRO, .0082uF 0285-08-8201 825 RES, 27 ohm 5%, 1/48 0315-00-0270
536 CAP, CER, .luF 0283-04-0104 R26 RES, 22 ohm 5%, 1/4W 0315-00-0220
C37 CAP, CER, „luF 0283-04-0104 R27 RES, 100K 5%, 1/44 0315-00-0104
38 CAP, CER, .47uF 10%, 50V 0283-04-0474 R28 RES, 100k 5%, 1/44 0315-00-0104
639 CAP, CER, „luF 0283-04-0104 R29 RES, 1K 5%, 1/4 0315-00-0102
C40 CAP, TANT, 10uF 20%。25V 0290-02-2106 R30 RES, 1K 5%, 1/4W 0315-00-0302
cal CAP, TANT, 1OuF 20%, 25V 0290-02-2106 R32 RES, 150K 1%, 1/84 0309-00-1503
C42 САР, TANT, 10uF 20%, 25V 0290-02-2106 R32 RES, 150K 1%, 1/84 0309-00-1503
ca3 CAP, CER, .47uF 10%, SOV 0283-04-0474 R33 RES, 150K 1X, 1/84 0309-00-1503
C44 CAP。TANT。10uF 20%。25V 0290-02-2106 R34 RES, 124K 1%, 1/84 0309-00-1243
C45 CAP, TANT, 10uF 20%, 25V 0290-02-2106 R35 RES, 150K 1%, 1/8 0309-00-1503
(46 CAP, CER, .47uF 10%, 50V 0283-04-0474 R36 RES, 124K 1%, 1/8W 0309-00-1243
C47 CAP, ALUM ELEC, 22uF 50%, 25V 0290-01-2220 R37 RES, 150K 1%, 1/8 0309-00-1503
CAB CAP, CER, .luF 0283-04-0104 R38 RES, 150K 1%, 1/8W 0309-00-1503
649 CAP, TANT, 10uF 20%, 25V 0290-02-2106 R39 RES, 150K 1%, 1/84 0309-00-1503
050 CAP, TANT, 10uF 20%, 25V 0290-02-2106 R40 RES, 124K 1%, 1/84
0309-00-1243
