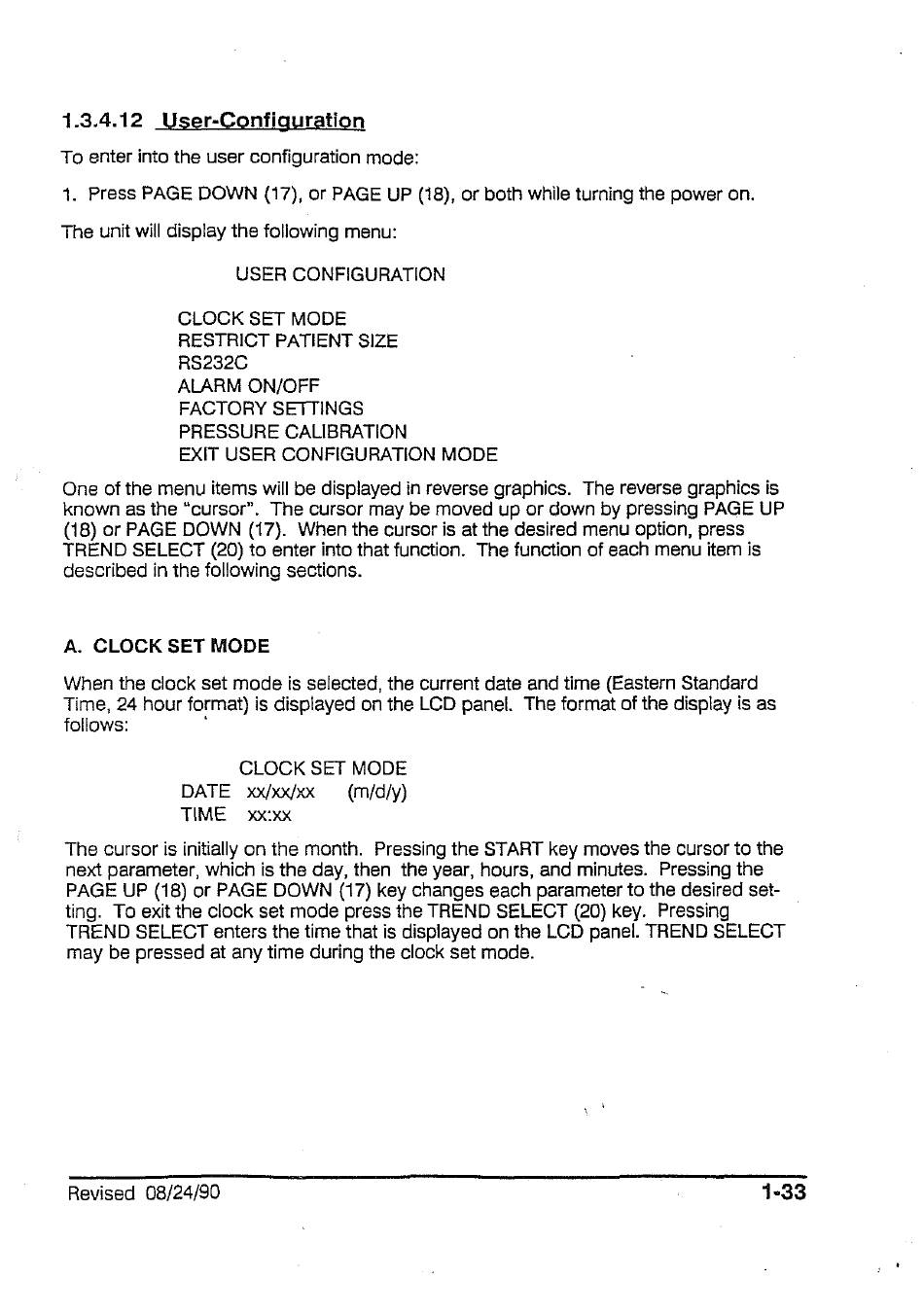

1.3.4.12
User-Configuration
To enter into the user configuration mode:
1. Press PAGE DOWN (17), or PAGE UP (18), or both while turning the power on.
The unit will display the following menu:
USER CONFIGURATION
CLOCK SET MODE
RESTRICT PATIENT SIZE
RS232C
ALARM ON/OFF
FACTORY SETTINGS
PRESSURE CALIBRATION
EXIT USER CONFIGURATION MODE
One of the menu items will be displayed in reverse graphics. The reverse graphics is
known as the "cursor". The cursor may be moved up or down by pressing PAGE UP
(18) or PAGE DOWN
(17). When the cursor is at the desired menu option, press
TREND SELECT (20) to enter into that function. The function of each menu item is
described in the following sections.
A. CLOCK SET MODE
When the clock set mode is selected, the current date and time (Eastern Standard
Time, 24 hour format) is displayed on the LCD panel. The format of the display is as
follows:
'
CLOCK SET MODE
DATE
xx/xx/xx
(m/d/y)
TIME
xxx
The cursor is initially on the month.
Pressing the START key moves the cursor to the
next parameter, which is the day, then the year, hours, and minutes.
Pressing the
PAGE UP (18) or PAGE DOWN (17) key changes each parameter to the desired set-
_
ting. To exit the clock set mode press the TREND SELECT (20) key. Pressing
TREND SELECT enters the time that is displayed on the LCD panel. TREND SELECT
may be pressed at any time during the clock set mode.
Revised 08/24/90
|
1-33
