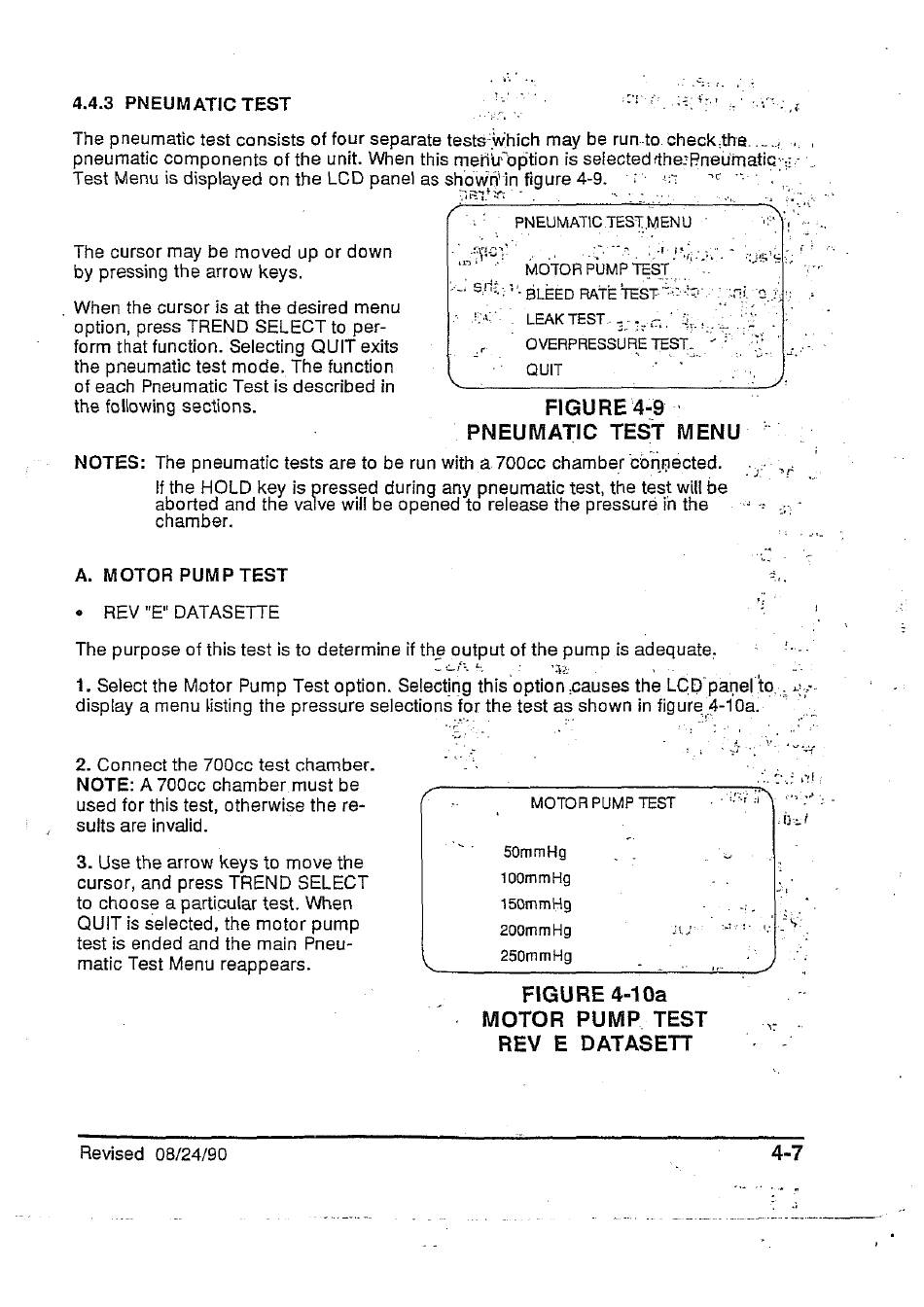

4.4.3 PNEUMATIC TEST
LU
en aro
ro
SRA
PNEUMATIC TEST MENU
-
、
an
ii
=
MOTOR PUMP TEST
0"
Ho}. BLEED RATE TEST
~ LEAK TEST. 2-00. 혹시
OVERPRESSURE TEST. ^
QUIT
The cursor may be moved up or down
by pressing the arrow keys.
. When the cursor is at the desired menu
option, press TREND SELECT to per-
form that function. Selecting QUIT exits
the pneumatic test mode. The function
of each Pneumatic Test is described in
the following sections.
FIGURE 4-9 :
:
' PNEUMATIC
TEST
MENU
NOTES:
The pneumatic tests are to be run with a 700cc chamber connected.
Ifthe HOLD key is
pressed during any pneumatic test, the test will be
aborted and the valve will be opened to release the pressure in the
chamber.
di ag
A. MOTOR PUMP TEST
a
。 REV "E" DATASETTE
Los
The purpose of this test is to determine if the output of the pump is adeguate.
У
©
1. Select the Motor Pump Test option. Selecting this' option causes the LCD panel to...
display a menu listing the pressure selections for the test as shown in figure, 4-108.
©
2. Connect the 700cc test chamber.
NOTE: A 700cc chamber must be
used for this test, otherwise the re-
=
‚
MOTOR PUMP TEST
sults are invalid.
]
3. Use the arrow keys to move the
SommHg
cursor, and press TREND SELECT
100mmHg
to choose a particular test, When
150mmHg
QUIT is selected, the motor pump
200mmHg
ил
test is ended and the main Pneu-
250mmHg
matic Test Menu reappears.
FIGURE 4-10a
=
MOTOR
PUMP
TEST
woe
REV
E DATASETT
o
Revised 08/24/90
」
4-7
