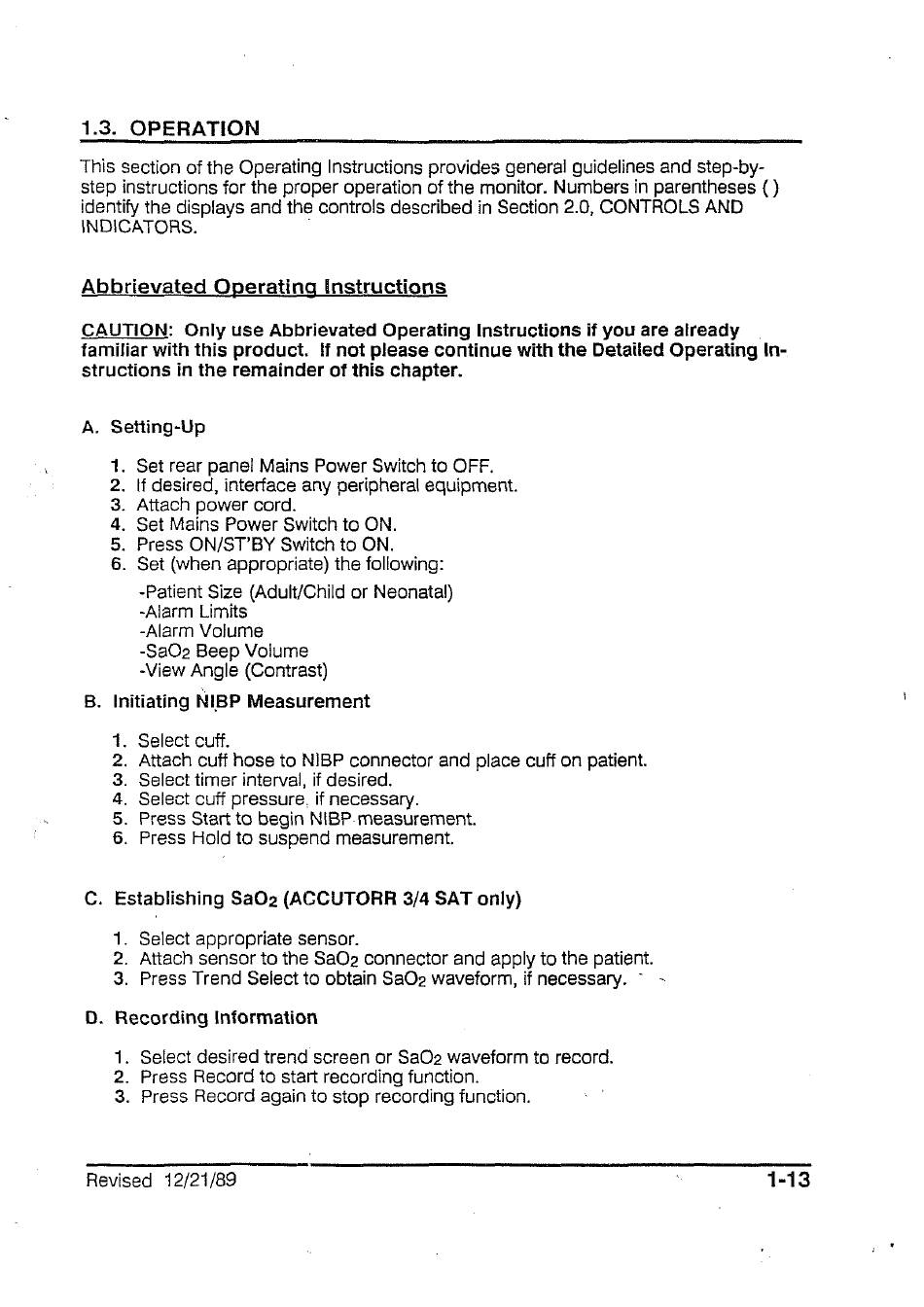

1.3.
OPERATION
This section of the Operating Instructions provides general guidelines and step-by-
step instructions for the proper operation of the monitor. Numbers in parentheses ()
identify the displays and the controls described in Section 2.0, CONTROLS AND
INDICATORS.
」
Abbrievated Operating Instructions
CAUTION:
Only use Abbrievated Operating Instructions if you are already
familiar with this product.
If not please continue with the Detailed Operating In-
structions in the remainder of this chapter.
A. Setting-Up
Set rear pane! Mains Power Switch to OFF.
If desired, interface any peripheral equipment.
Attach power cord.
Set Mains Power Switch to ON.
Press ON/ST'BY Switch to ON.
Set (when appropriate) the following:
-Patient Size (Adult/Child or Neonatal)
-Alarm Limits
-Alarm Volume
-Sa02 Beep Volume
-View Angle (Contrast)
B. Initiating NIBP Measurement
Select cuff.
Attach cuff hose to NIBP connector and place cuff on patient.
Select timer interval, if desired.
Select cuff pressure, if necessary.
Press Start to begin NIBP. measurement.
Press Hold to suspend measurement.
C. Establishing SaO2 (ACCUTORR 3/4 SAT only)
1. Select appropriate sensor.
2. Attach sensor to the 5aO2 connector and apply to the patient.
3.
Press Trend Select to obtain SaO2 waveform, if necessary.
©
-
D. Recording Information
1. Select desired trend screen or Sa02 waveform to record.
2. Press Record to start recording function.
3. Press Record again to stop recording function.
Revised
12/21/89
]
1-13
