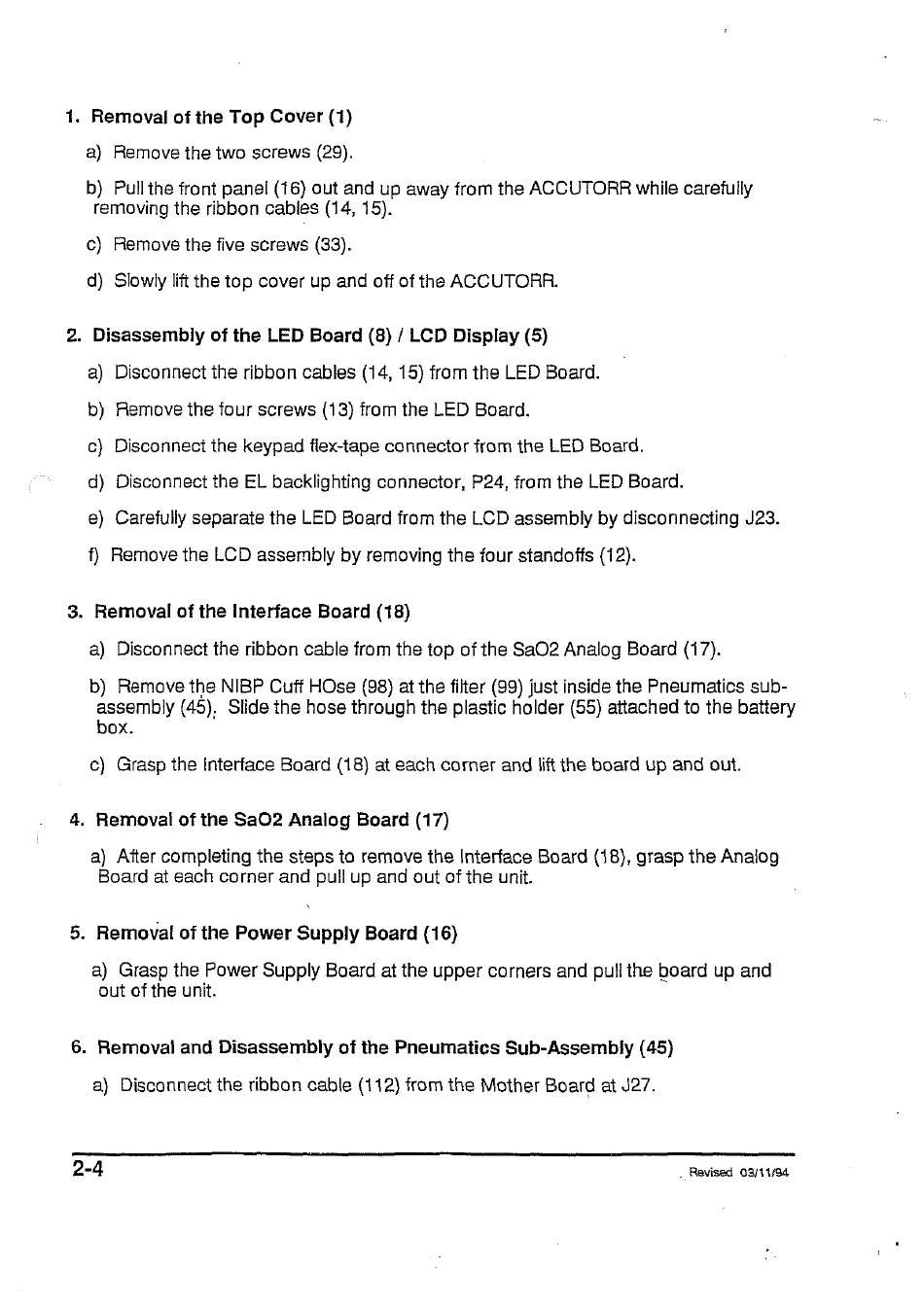

1. Removal of the Top Cover (1)
a)
Remove the two screws (29).
b) Pull the front panel (16) out and up away from the ACCUTORR while carefully
removing the ribbon cables (14, 15).
c) Remove the five screws (33).
d) Slowly lift the top cover up and off of the ACCUTORR.
2. Disassembly of the LED Board (8) / LCD Display (5)
a) Disconnect the ribbon cables (14, 15) from the LED Board.
b) Remove the four screws (13) from the LED Board.
c) Disconnect the keypad flex-tape connector from the LED Board.
d)
Disconnect the EL backlighting connector, P24, from the LED Board.
e) Carefully separate the LED Board from the LCD assembly by disconnecting J23.
f) Remove the LCD assembly by removing the four standoffs (12).
3. Removal of the Interface Board (18)
a) Disconnect the ribbon cable from the top of the SaO2 Analog Board (17).
b) Remove the NIBP Cuff HOse (98) at the filter (99) just inside the Pneumatics sub-
assembly (45). Slide the hose through the plastic holder (65) attached to the battery
box.
c) Grasp the Interface Board (18) at each corner and lift the board up and out.
4. Removal of the Sa02 Analog Board (17)
a) After completing the steps to remove the Interface Board (18), grasp the Analog
Board at each corner and pull up and out of the unit.
5. Removal of the Power Supply Board (16)
a) Grasp the Power Supply Board at the upper corners and pull the board up and
out of the unit.
6. Removal and Disassembly of the Pneumatics Sub-Assembly (45)
a) Disconnect the ribbon cable (112) from the Mother Board at J27.
2-4
Revised 03/11/94
