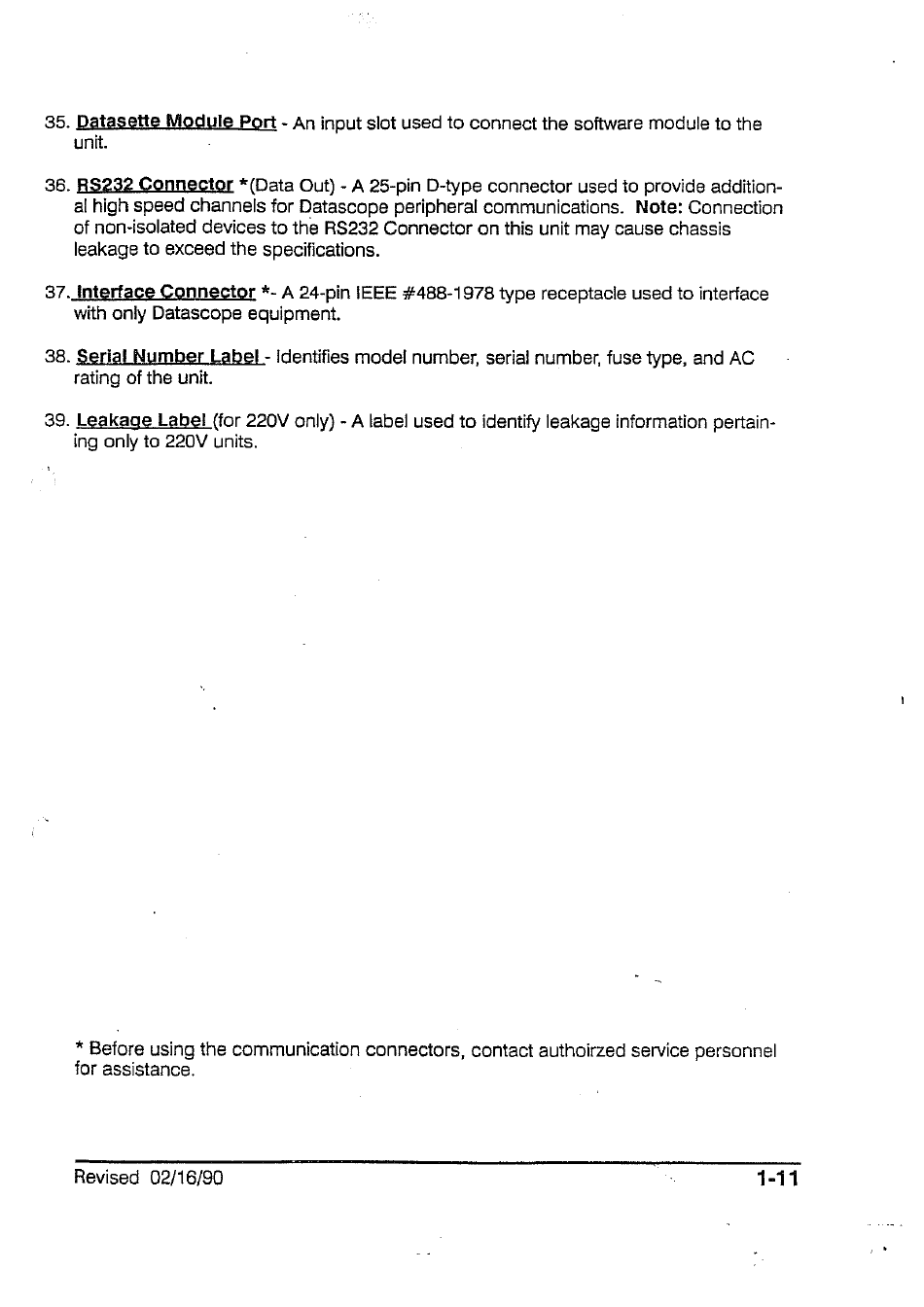

35.
tte
Module
Port - An input slot used to connect the software module to the
unit.
36. RS232 Connector *(Data Out) - A 25-pin D-type connector used to provide addition-
al high speed channels for Datascope peripheral communications.
Note: Connection
of non-isolated devices to the RS232 Connector on this unit may cause chassis
leakage to exceed the specifications.
37. Interface Connector *- A 24-pin IEEE #488-1978 type receptacle used to interface
with only Datascope equipment.
38. Serial Number Label - identifies model number, serial number, fuse type, and AC
rating of the unit.
39. Leak
Label (for 220V only) - A label used to identify leakage information pertain-
ing only to 220V units.
* Before using the communication connectors, contact authoirzed service personnel
for assistance.
Revised
02/16/90
]
1-11
