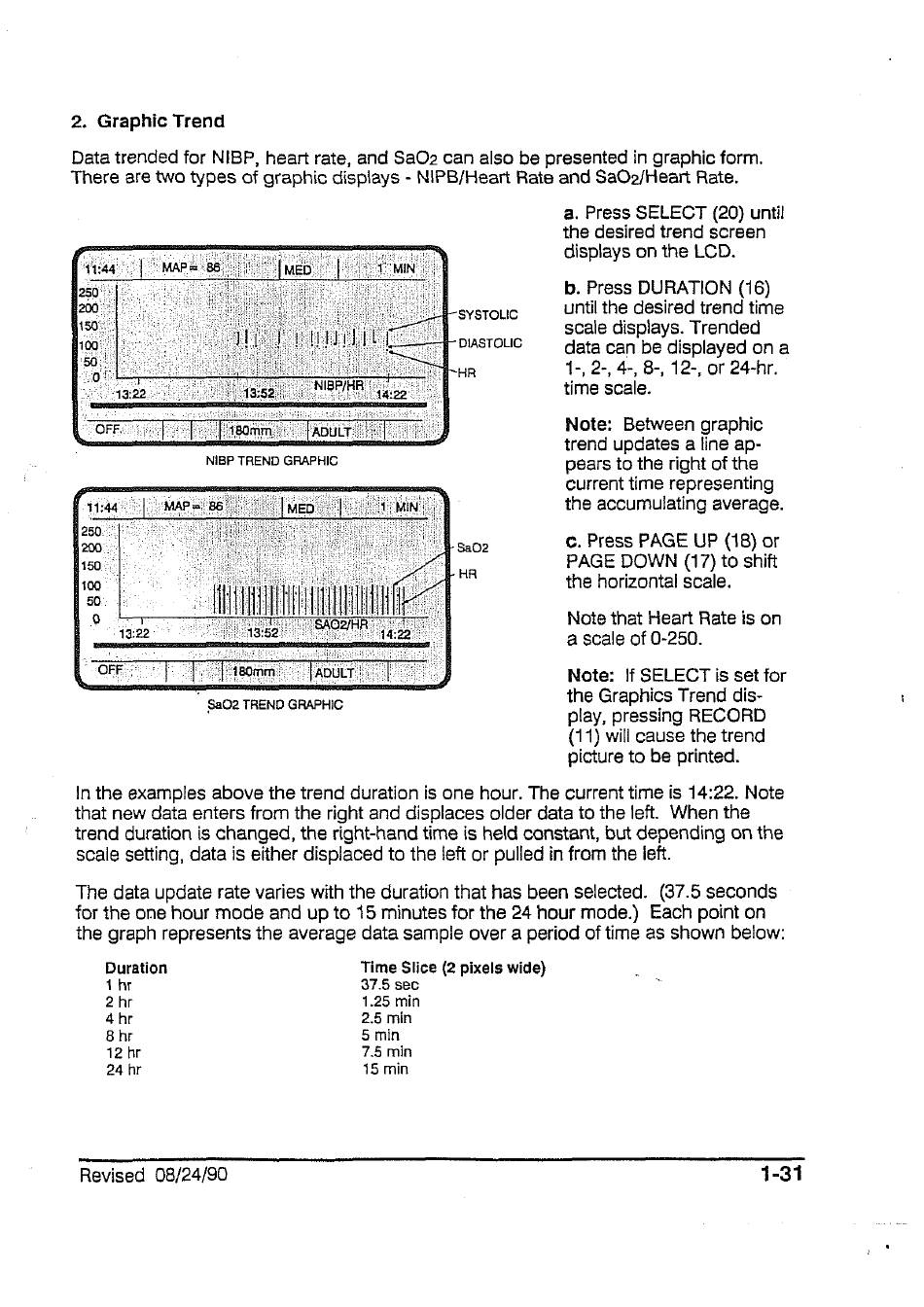

2. Graphic Trend
Data trended for NIBP, heart rate, and SaOz can also be presented in graphic form.
There are two types of graphic displays - NIPB/Heart Rate and SaOo/Heart Rate.
a. Press SELECT (20) until
the desired trend screen
displays on the LCD.
b. Press DURATION (16)
SYSTOLIC
until the desired trend time
scale displays. Trended
DIASTOLIC
data can be displayed on a
HR
1-, 2-, 4-, В-, 12-, or 24-hr.
time scale.
πηρα
ADULT
ni)
Note: Between graphic
=
trend updates a line ap-
NIBP TREND GRAPHIC
pears to the right of the
current time representing
11:44
the accumulating average.
pri
o
802
©. Press PAGE UP (18) or
150.,
u
PAGE DOWN (17) to shift
100
4
SR
the horizontal scale.
50
o
T
:
Note that Heart Rate is on
132
RE
a scale of 0-250.
ART
T 'eon
ee
Note: If SELECT is set for
:
=
the Graphics Trend dis-
$202 TREND GRAPHIC
play, pressing RECORD
(11) will cause the trend
picture to be printed.
In the examples above the trend duration is one hour. The current time is 14:22. Note
that new data enters from the right and displaces older data to the left. When the
trend duration is changed, the right-hand time is held constant, but depending on the
scale setting, data is either displaced to the left or pulled in from the left.
The data update rate varies with the duration that has been selected.
(37.5 seconds
for the one hour mode and up to 15 minutes for the 24 hour mode.)
Each point on
the graph represents the average data sample over a period of time as shown below:
Duration
Time Slice (2 pixels wide)
1 hr
37.5 sec
2hr
1.25 min
4hr
2.5 min
8hr
5 min
12 hr
7.5 min
24 hr
15 min
Revised 08/24/90
1-31
