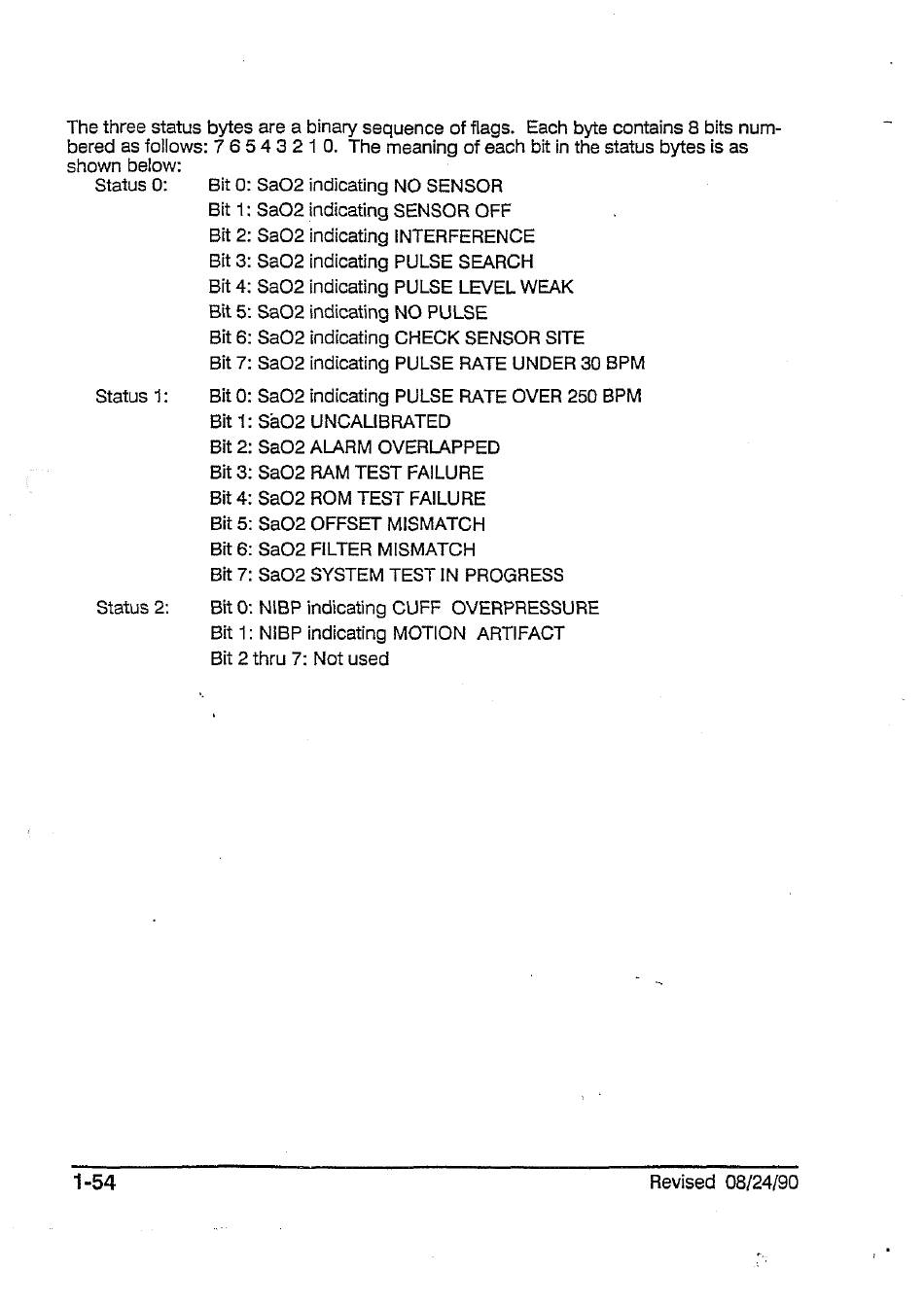

The three status bytes are a binary sequence of flags. Each byte contains 8 bits num-
bered as follows: 76543210.
The meaning of each bit in the statu
shown below:
Status 0:
Status 1:
Status 2:
Bit O:
Bit 1:
Bit 2:
Bit 3:
Bit 4:
Bit 5:
Bit 6:
Bit 7:
Bit 0:
Bit 1:
Bit 2:
Bit 3:
Bit 4:
Bit 5:
Bit 6:
Bit 7:
Bit O:
Bit 1:
SaO2 indicating NO SENSOR
Sa02 indicating SENSOR OFF
SaO2 indicating INTERFERENCE
SaO2 indicating PULSE SEARCH
Sa02 indicating PULSE LEVEL WEAK
Sa02 indicating NO PULSE
Sa02 indicating CHECK SENSOR SITE
SaO2 indicating PULSE RATE UNDER 30 BPM
SaO2 indicating PULSE RATE OVER 250 BPM
8802 UNCALIBRATED
SaO2 ALARM OVERLAPPED
SaO2 RAM TEST FAILURE
SaO2 ROM TEST FAILURE
SaO2 OFFSET MISMATCH
SaO2 FİLTER MISMATCH
Sa02 SYSTEM TEST IN PROGRESS
NIBP indicating CUFF
OVERPRESSURE
NIBP indicating MOTION
ARTIFACT
Bit 2 thru 7: Not used
s bytes is as
1-54
Revised 08/24/90
