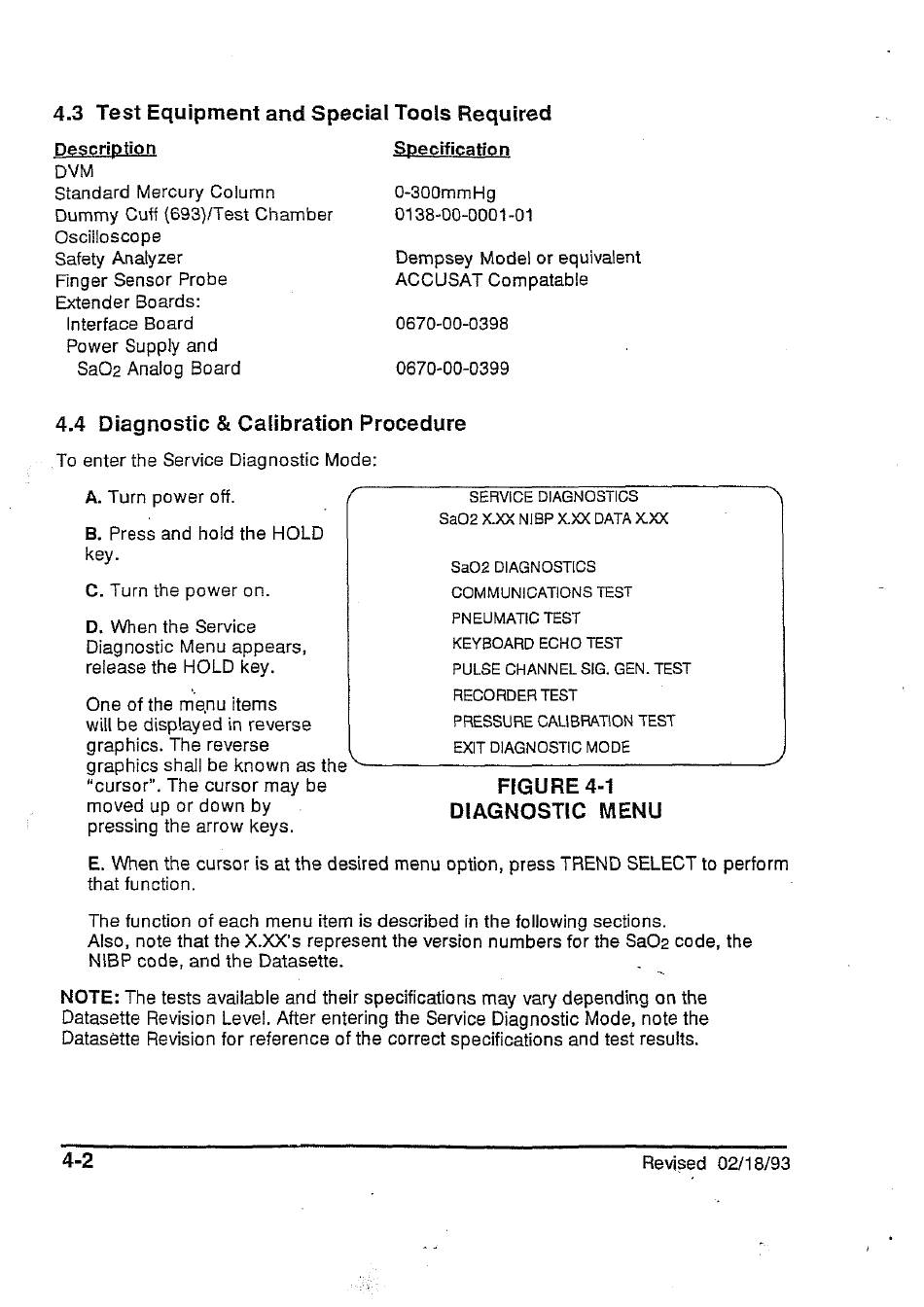

4.3 Test Equipment and Special Tools Required
Description
Specification
DVM
Standard Mercury Column
0-300mmHg
Dummy
Cuff (693)/Test Chamber
0138-00-0001-01
Osciiloscope
Safety Analyzer
Dempsey Model or eguivalent
Finger Sensor Probe
AGCUSAT Compatable
Extender Boards:
Interface Board
0670-00-0398
Power Supply and
SaOz Analog Board
0670-00-0399
4.4
Diagnostic & Calibration Procedure
To enter the Service Diagnostic Mode:
À. Turn power off.
SERVICE DIAGNOSTICS
,
SaO2 X.XX NIBP X.XX DATA XXX
B. Press and hold the HOLD
key.
y
5a02 DIAGNOSTICS
C. Turn the power on.
COMMUNICATIONS TEST
D. When the Service
PNEUMATIC TEST
Diagnostic Menu appears,
KEYBOARD ECHO TEST
release the HOLD key.
PULSE CHANNEL SIG. GEN. TEST
One of the menu items
RECORDER TEST
will be displayed in reverse
PRESSURE CALIBRATION TEST
graphics. The reverse
EXIT DIAGNOSTIC MODE
graphics shall be known as the
"cursor". The cursor may be
FIGURE 4-1
moved up or down by.
DIAGNOSTIC MENU
pressing the arrow keys.
E. When the cursor is at the desired menu option, press TREND SELECT to perform
that function.
]
The function of each menu item is described in the following sections.
Also, note that the X.XX's represent the version numbers for the SaOz code, the
NIBP code, and the Datasette.
NOTE: The tests available and their specifications may vary depending on the
Datasette Revision Level, After entering the Service Diagnostic Mode, note the
Datasette Revision for reference of the correct specifications and test results.
