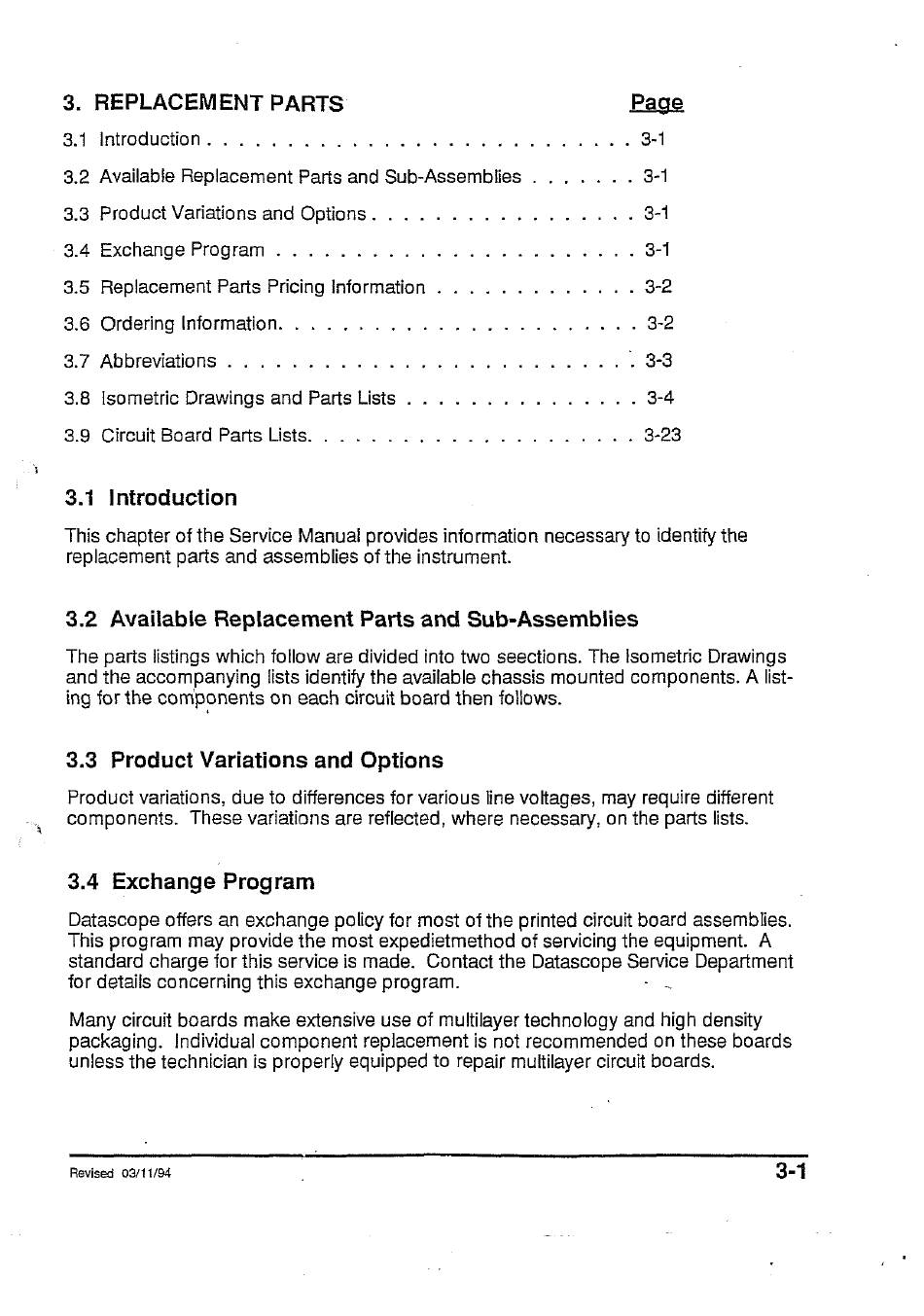

3.1
Introduction. .....,,....................
3-1
3.2 Available Replacement Parts and Sub-Assemblies
.......
3-1
3.3 Product Variations and Options.
. . . . . . . . . . .. ....
3-1
3.4 Exchange Program
. . 2 . 2 2 이이 이이 이이 이 의 이 이이 이 이 이 이 이 이아
3-1
3.5 Replacement Parts Pricing Information... ........4..
3-2
3.6 Ordering Information. . ................,....
3-2
3.7 Abbreviations
. . ........................
3-3
3.8 Isometric Drawings and Parts Lists ...............
3-4
3.9 CircuitBoardPartslists.....................
3-23
3.1
Introduction
This chapter of the Service Manual provides information necessary to identify the
replacement parts and assemblies of the instrument.
3.2 Available Replacement Parts and Sub-Assemblies
The parts listings which follow are divided into two seections. The lsometric Drawings
and the accompanying lists identify the available chassis mounted components. A
list-
ing for the components on each circuit board then follows.
3.3
Product Variations and Options
Product variations, due to differences for various line voltages, may require different
components.
These variations are reflected, where necessary, on the parts lists.
3.4
Exchange Program
Datascope offers an exchange policy for most of the printed circuit board assemblies.
This program may provide the most expedietmethod of servicing the equipment.
A
standard charge for this service is made.
Contact the Datascope Service Department
for details concerning this exchange program.
Many circuit boards make extensive use of multilayer technology and high density
packaging.
Individual component replacement is not recommended on these boards
unless the technician is properly equipped to repair multilayer circuit boards.
Revised 09/11/94
.
3-1
