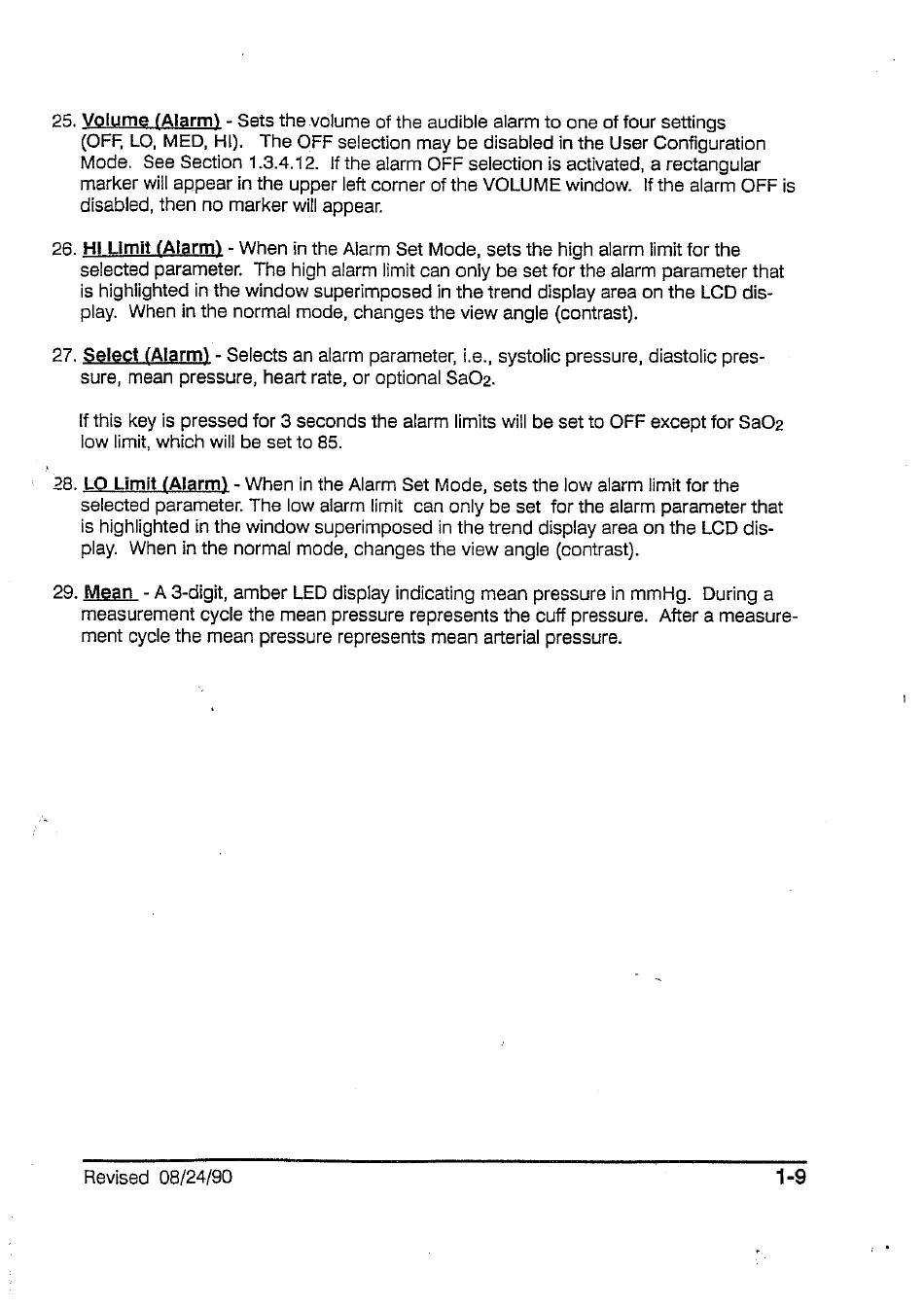

25. Volume (Alarm)
- Sets the volume of the audible alarm to one of four settings
(OFF, LO, MED, HI).
The OFF selection may be disabled in the User Configuration
Mode.
See Section 1.3.4.12.
If the alarm OFF selection is activated, a rectangular
marker will appear in the upper left corner of the VOLUME window.
If the alarm OFF is
disabled, then no marker will appear.
26. HI Limit (Alarm) - When in the Alarm Set Mode, sets the high alarm limit for the
selected parameter.
The high alarm limit can only be set for the alarm parameter that
is highlighted in the window superimposed in the trend display area on the LCD dis-
play. When in the normal mode, changes the view angle (contrast).
27. Select (Alarm) - Selects an alarm parameter, i.e., systolic pressure, diastolic pres-
sure, mean pressure, heart rate, or optional SaOz.
If this key is pressed for 3 seconds the alarm limits will be set to OFF except for SaOz
low limit, which will be set to 85.
28. LO Limit (Alarm) - When in the Alarm Set Mode, sets the low alarm limit for the
selected parameter. The low alarm limit can only be set for the alarm parameter that
is highlighted in the window superimposed in the trend display area on the LCD dis-
play. When in the normal mode, changes the view angle (contrast).
29. Mean
- A 3-digit, amber LED display indicating mean pressure in mmHg.
During a
measurement cycle the mean pressure represents the cuff pressure. After a measure-
ment cycle the mean pressure represents mean arterial pressure.
Revised
08/24/90
1-9
