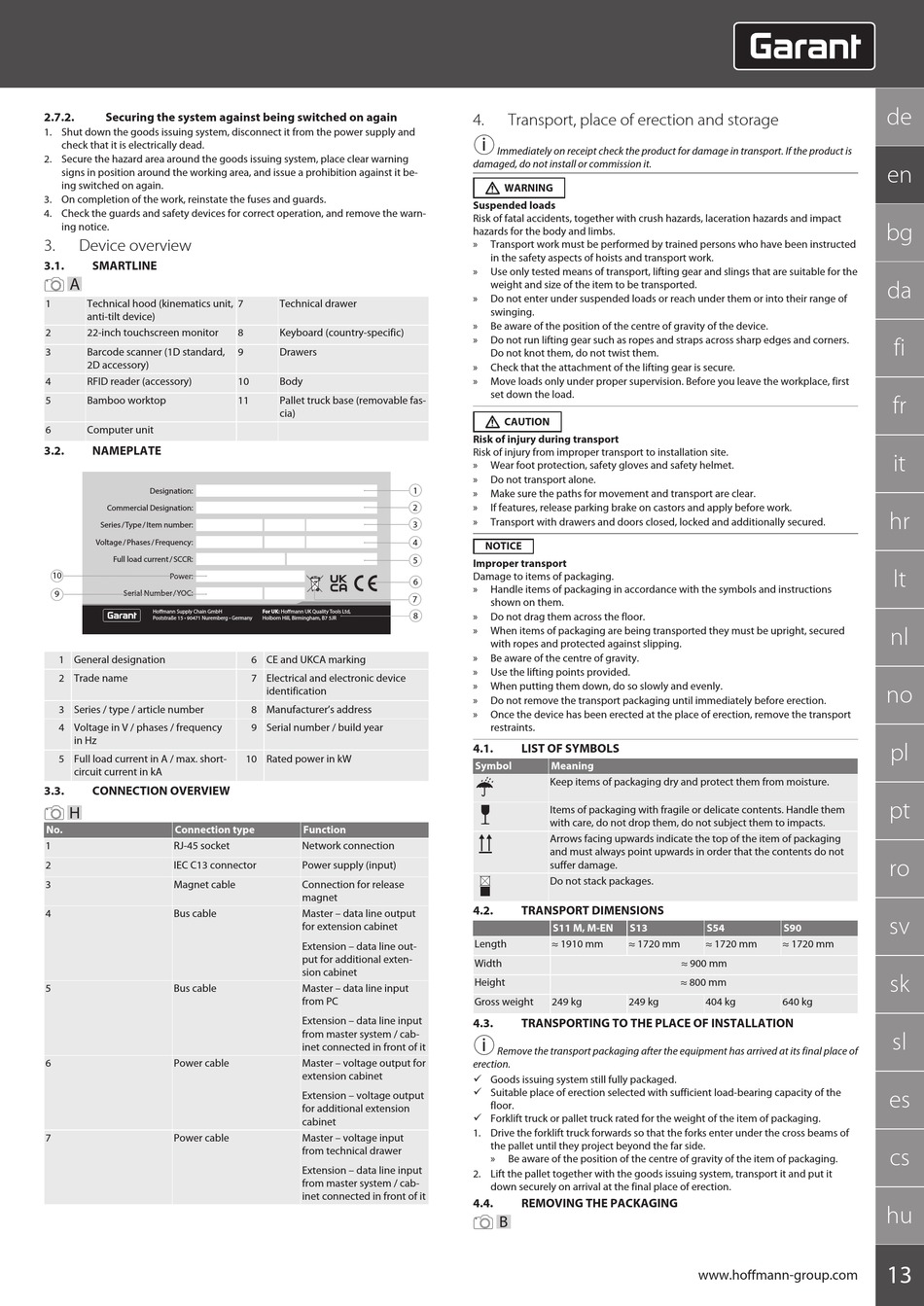

2.7.2.
Securing the system against being switched on again
1. Shut down the goods issuing system, disconnect it from the power supply and
check that it is electrically dead.
2. Secure the hazard area around the goods issuing system, place clear warning
signs in position around the working area, and issue a prohibition against it be-
ing switched on again.
3. On completion of the work, reinstate the fuses and guards.
4. Check the guards and safety devices for correct operation, and remove the warn-
ing notice.
3.
Device overview
3.1.
SMARTLINE
A
1
Technical hood (kinematics unit,
anti-tilt device)
2
22-inch touchscreen monitor
3
Barcode scanner (1D standard,
2D accessory)
4
RFID reader (accessory)
5
Bamboo worktop
6
Computer unit
3.2.
NAMEPLATE
Designation:
Commercial Designation:
Series / Type / Item number:
Voltage / Phases / Frequency:
Full load current / SCCR:
Power:
10
Serial Number / YOC:
9
Ho mann Supply Chain GmbH
Poststraße 15 • 90471 Nuremberg • Germany
1 General designation
2 Trade name
3 Series / type / article number
4 Voltage in V / phases / frequency
in Hz
5 Full load current in A / max. short-
circuit current in kA
3.3.
CONNECTION OVERVIEW
H
No.
Connection type
1
RJ-45 socket
2
IEC C13 connector
3
Magnet cable
4
Bus cable
5
Bus cable
6
Power cable
7
Power cable
7
Technical drawer
8
Keyboard (country-specific)
9
Drawers
10
Body
11
Pallet truck base (removable fas-
cia)
For UK: Ho mann UK Quality Tools Ltd,
Holborn Hill, Birmingham, B7 5JR
6 CE and UKCA marking
7 Electrical and electronic device
identification
8 Manufacturer's address
9 Serial number / build year
10 Rated power in kW
Function
Network connection
Power supply (input)
Connection for release
magnet
Master – data line output
for extension cabinet
Extension – data line out-
put for additional exten-
sion cabinet
Master – data line input
from PC
Extension – data line input
from master system / cab-
inet connected in front of it
Master – voltage output for
extension cabinet
Extension – voltage output
for additional extension
cabinet
Master – voltage input
from technical drawer
Extension – data line input
from master system / cab-
inet connected in front of it
4.
Transport, place of erection and storage
i
Immediately on receipt check the product for damage in transport. If the product is
damaged, do not install or commission it.
WARNING
Suspended loads
Risk of fatal accidents, together with crush hazards, laceration hazards and impact
hazards for the body and limbs.
»
Transport work must be performed by trained persons who have been instructed
in the safety aspects of hoists and transport work.
»
Use only tested means of transport, lifting gear and slings that are suitable for the
weight and size of the item to be transported.
»
Do not enter under suspended loads or reach under them or into their range of
swinging.
»
Be aware of the position of the centre of gravity of the device.
»
Do not run lifting gear such as ropes and straps across sharp edges and corners.
Do not knot them, do not twist them.
»
Check that the attachment of the lifting gear is secure.
»
Move loads only under proper supervision. Before you leave the workplace, first
set down the load.
CAUTION
Risk of injury during transport
Risk of injury from improper transport to installation site.
»
Wear foot protection, safety gloves and safety helmet.
»
Do not transport alone.
1
»
Make sure the paths for movement and transport are clear.
»
If features, release parking brake on castors and apply before work.
2
»
Transport with drawers and doors closed, locked and additionally secured.
3
4
NOTICE
5
Improper transport
Damage to items of packaging.
6
»
Handle items of packaging in accordance with the symbols and instructions
7
shown on them.
8
»
Do not drag them across the floor.
»
When items of packaging are being transported they must be upright, secured
with ropes and protected against slipping.
»
Be aware of the centre of gravity.
»
Use the lifting points provided.
»
When putting them down, do so slowly and evenly.
»
Do not remove the transport packaging until immediately before erection.
»
Once the device has been erected at the place of erection, remove the transport
restraints.
4.1.
LIST OF SYMBOLS
Symbol
Meaning
Keep items of packaging dry and protect them from moisture.
Items of packaging with fragile or delicate contents. Handle them
with care, do not drop them, do not subject them to impacts.
Arrows facing upwards indicate the top of the item of packaging
and must always point upwards in order that the contents do not
suffer damage.
Do not stack packages.
4.2.
TRANSPORT DIMENSIONS
S11 M, M-EN
Length
≈ 1910 mm
Width
Height
Gross weight
249 kg
4.3.
TRANSPORTING TO THE PLACE OF INSTALLATION
i
Remove the transport packaging after the equipment has arrived at its final place of
erection.
ü Goods issuing system still fully packaged.
ü Suitable place of erection selected with sufficient load-bearing capacity of the
floor.
ü Forklift truck or pallet truck rated for the weight of the item of packaging.
1. Drive the forklift truck forwards so that the forks enter under the cross beams of
the pallet until they project beyond the far side.
»
Be aware of the position of the centre of gravity of the item of packaging.
2. Lift the pallet together with the goods issuing system, transport it and put it
down securely on arrival at the final place of erection.
4.4.
REMOVING THE PACKAGING
B
S13
S54
S90
≈ 1720 mm
≈ 1720 mm
≈ 1720 mm
≈ 900 mm
≈ 800 mm
249 kg
404 kg
640 kg
