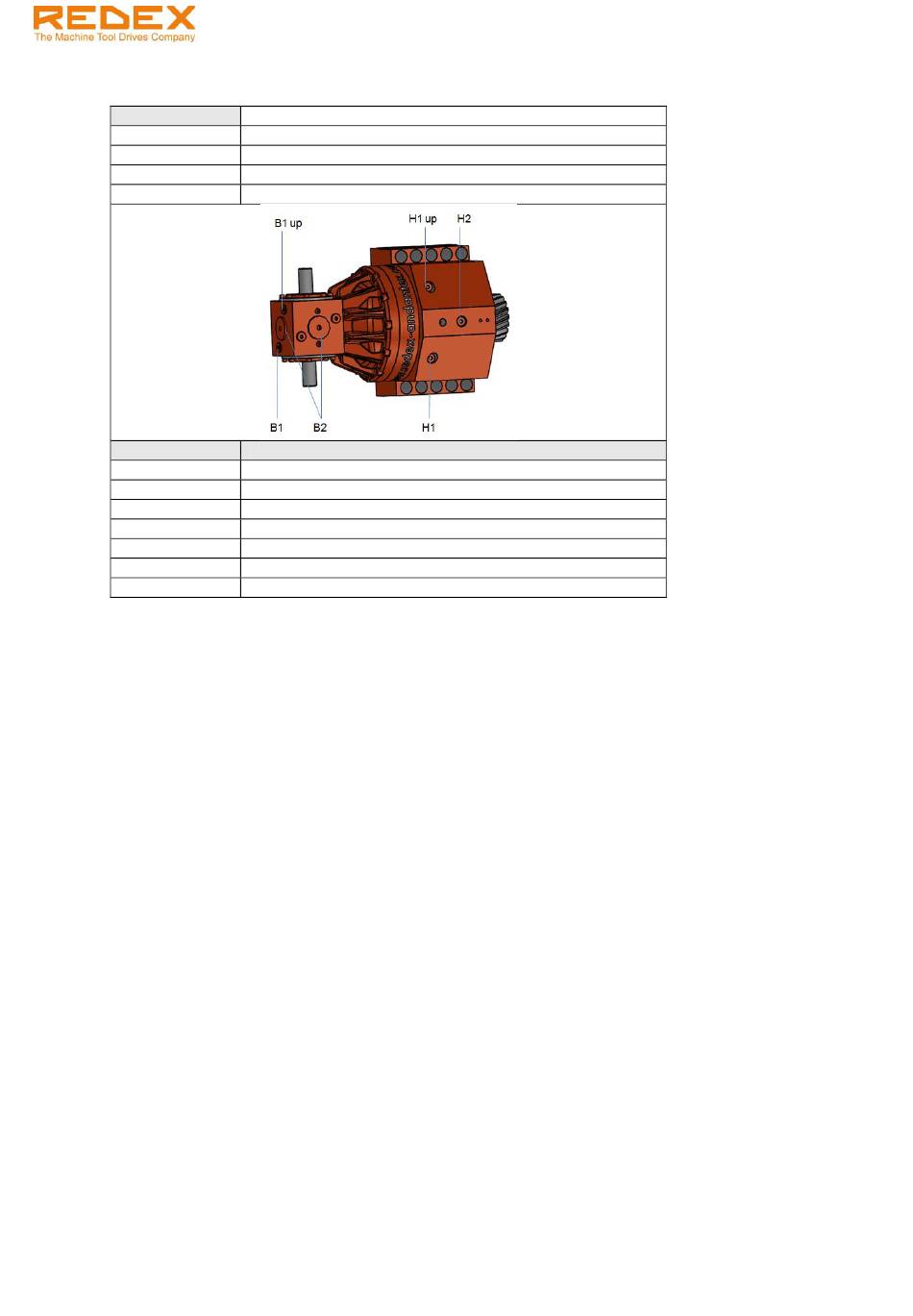

Position: B5/B5
Oil input B1 up, H1 up
Oil draining B1, H1
Breather B1 up with elbow
Sight glass B2
Size
KRPX1+R 1st.
KRPX1+R 2st.
KRPX2+R 1st.
KRPX2+R 2st.
KRPX3+R
KRPX4+R
KRPX5+R
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Approximated oil quantity (L)
0,7
0,4
1,6
0,9
1,6
2,7
5,6
Ref.: RX182/010
