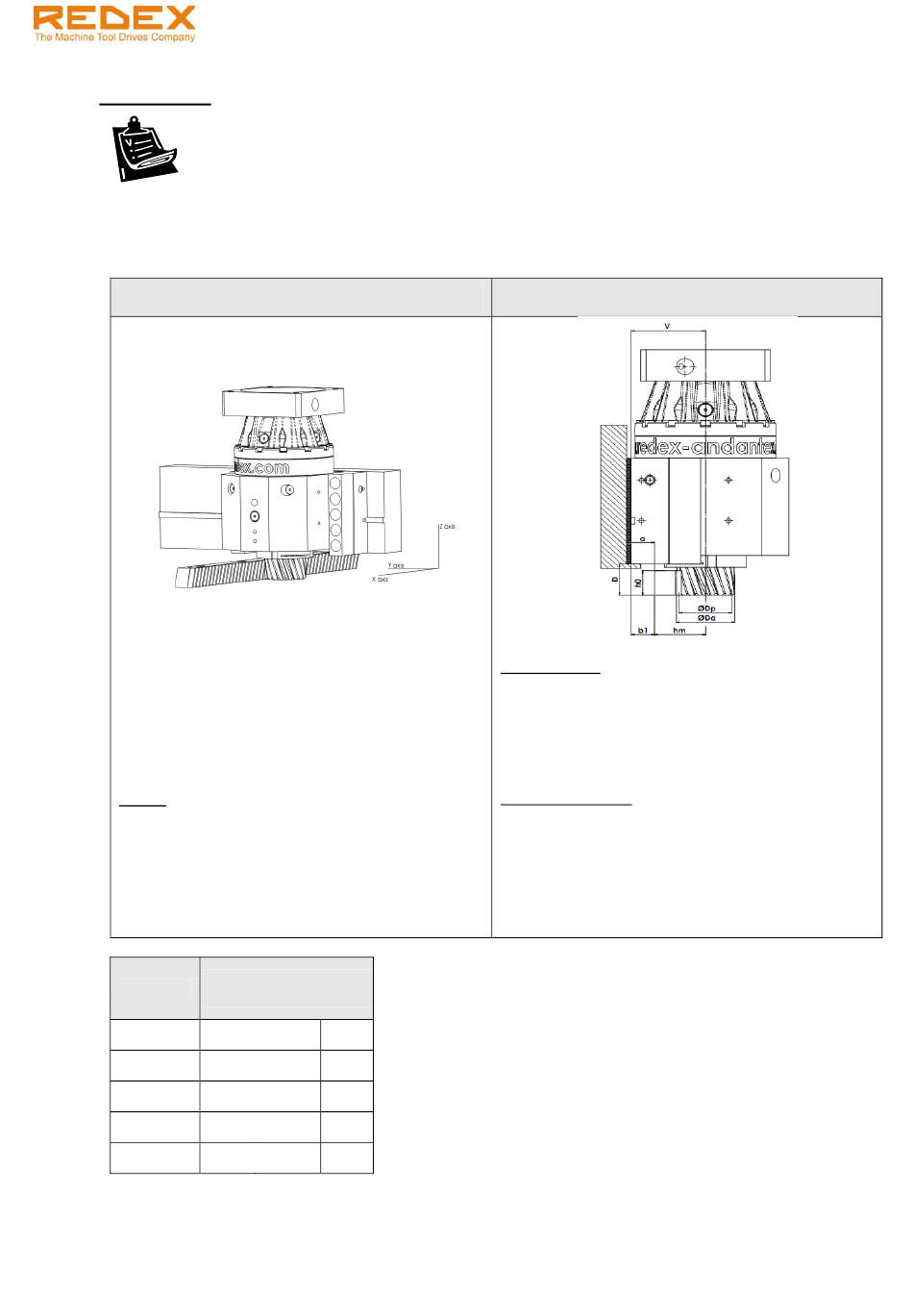

4.3.2 set up method
1. Move the machine element to the point of the rack where the rack topography is at a medium value
(refer to chapter 4.1).
2. Follow the procedure below (case 1 or case 2 depending on your application).
Case1: rack perpendicular to KRPX fixing face
Install the KRPX on the machine frame.
Move* the KRPX in the Y axis direction to set the
pinion in contact with the rack. Make sure that the
pinion teeth reach their end position in the rack
teeth (mesh without backlash).
Notes:
The reference surface for the movement can be
the key way or the KRPX ground front face
Adjust the KRPX in the -Y axis direction of a value
of tb1 given in the table below.
SIZE
KRPX1+
KRPX2+ 0.15
KRPX3+
KRPX4+
KRPX5+
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Use gearbox key way
Tooth radial
clearance t
b1
+0.025
0.1 mm
-0.025
+0.025
mm
-0.025
+0.05
0.2 mm
-0.05
+0.075
0.2 mm
-0.075
+0.1
0.3 mm
-0.1
Version 01/2017 - English
Case 2: rack parallel to KRPX fixing face
Use ground adjustment place
Prerequisites:
The penpandicularity tolerances have been set up
following upper chapter 4.2
The adjustment plate thickness has been defined
with t = a – b1 + tb1.
Checking method:
Mesure the distance "a"
Mount the KRPX on the machine with its
adjustment plate.
Check the tooth radial clearance tb2 (see next
chapter).
Ref.: RX182/010
