REDEX KRPX1+ Betriebs-, Montage- Und Wartungsanleitung Seite 11

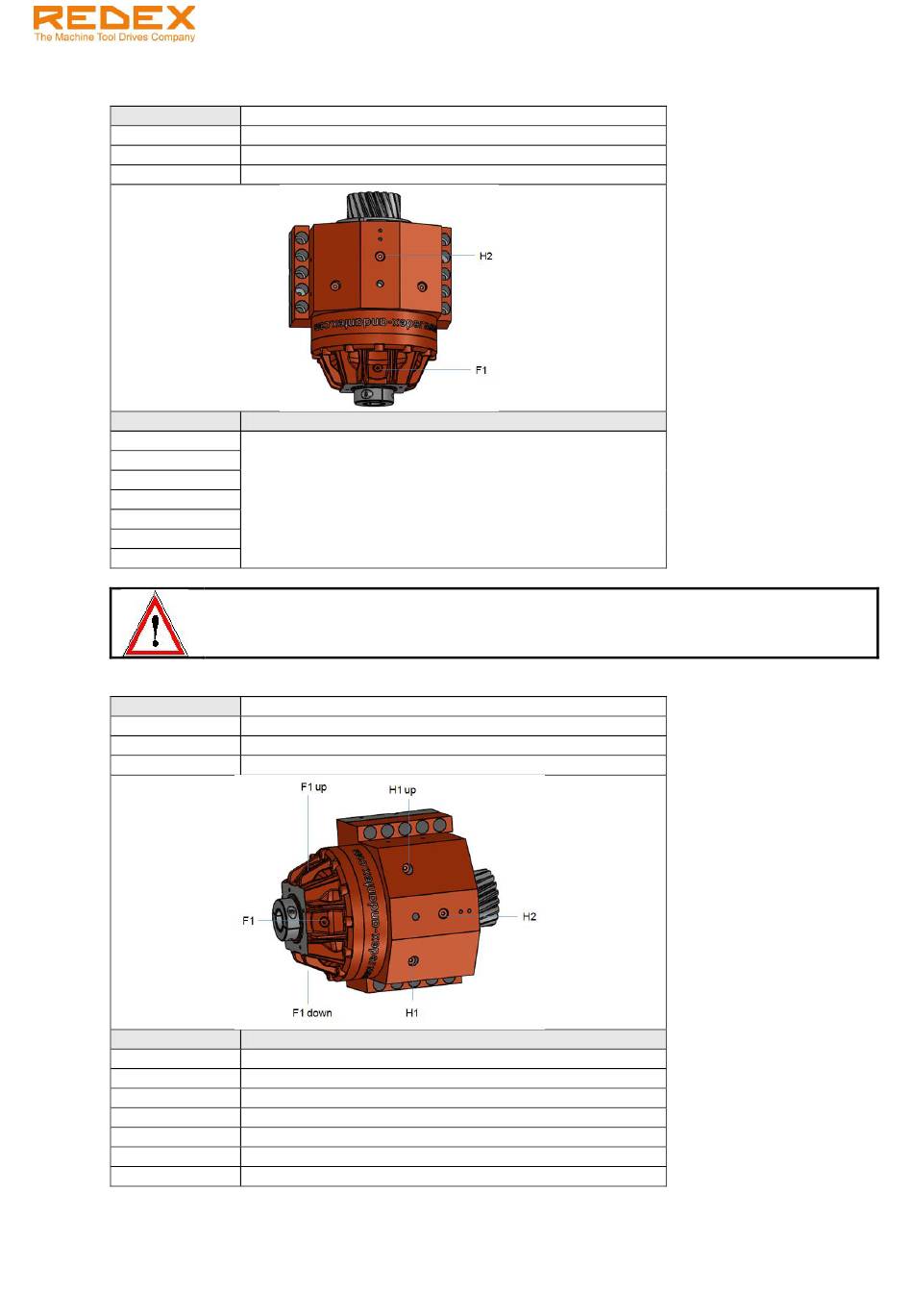

Position: V3
Oil input H2
Oil draining F1
Oil level H2
Size
KRPX1+M 1st.
KRPX1+M 2st.
KRPX2+M 1st.
KRPX2+M 2st.
KRPX3+M
KRPX4+M
KRPX5+M
WARNING!
This mounting position may require a special procedure for oil filling. Please consult us.
B6 – B7
Position:
Oil input F1 up, H1 up
Oil draining F1 down, H1
Oil level F1, H2
Size
KRPX1+M 1st.
KRPX1+M 2st.
KRPX2+M 1st.
KRPX2+M 2st.
KRPX3+M
KRPX4+M
KRPX5+M
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Approximated oil quantity (L)
Approximated oil quantity (L)
0,2
0,2
0,6
0,6
1,0
1,6
3,5
Ref.: RX182/010
Version 01/2017 - English
Page 9 / 24
