4 INSTALLATION ON THE MACHINE
WARNING! HANDLING OPERATIONS.
The KRPX+ unit can be handled by the main housing, the bevel box shafts, or, with lifting
rings by the pinion tapped hole.

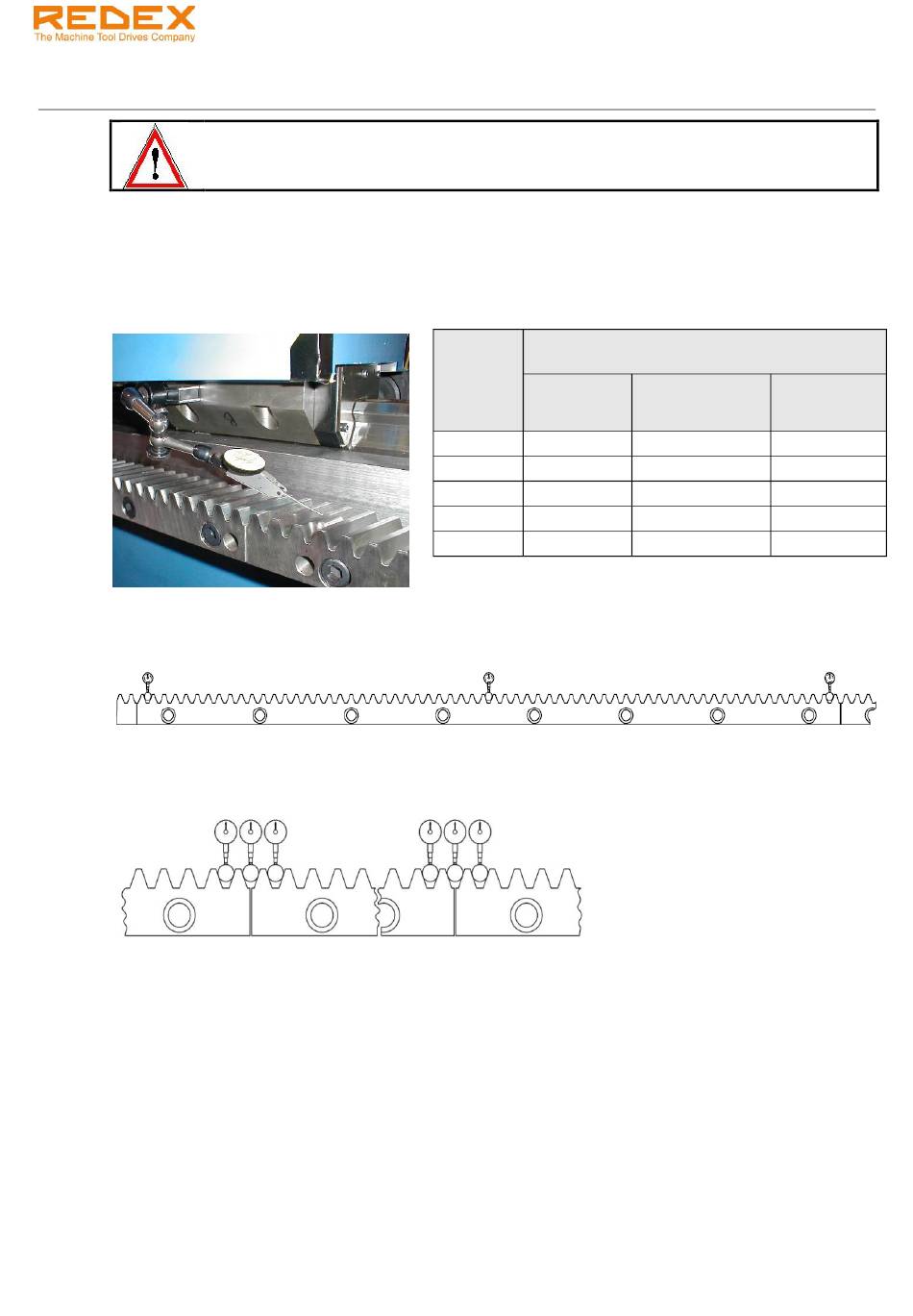

4.1 Rack mounting tolerance
Parallelism between the rack reference surface and the linear guide
The KRPX+ requires that the rack has been installed on the machine following the rack manufacturer
mounting procedure and respects the tolerances shown below:
We advise to measure the parallelism error values on 3 points for each segment of rack, as shown on the
drawing below. This rack topography will be used for proper tooth meshing validation and preload
setting (see next chapters).
In order to control the pitch error, we also recommend doing 3 measurements at each connection of 2
rack segments, as shown on the sketch below.
The variation between the 3 comparators at each connection must not exceed:
- 0.015 mm for a rack module 3,
- 0.020mm for a rack module > 3.
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Maximum parallelism errors between rack &
SIZE
diameter to
KRPX1+
KRPX2+
KRPX3+
KRPX4+
KRPX5+
Version 01/2017 - English
linear guide
Pin
For 1 rack
section
use
6 mm 0.02 mm / m
8 mm 0.02 mm / m
10 mm 0.02 mm / m
12 mm 0.04 mm / m
16 mm 0.06 mm / m
Ref.: RX182/010
For
complete
axis length
0.05 mm
0.05 mm
0.05 mm
0.07 mm
0.08 mm
