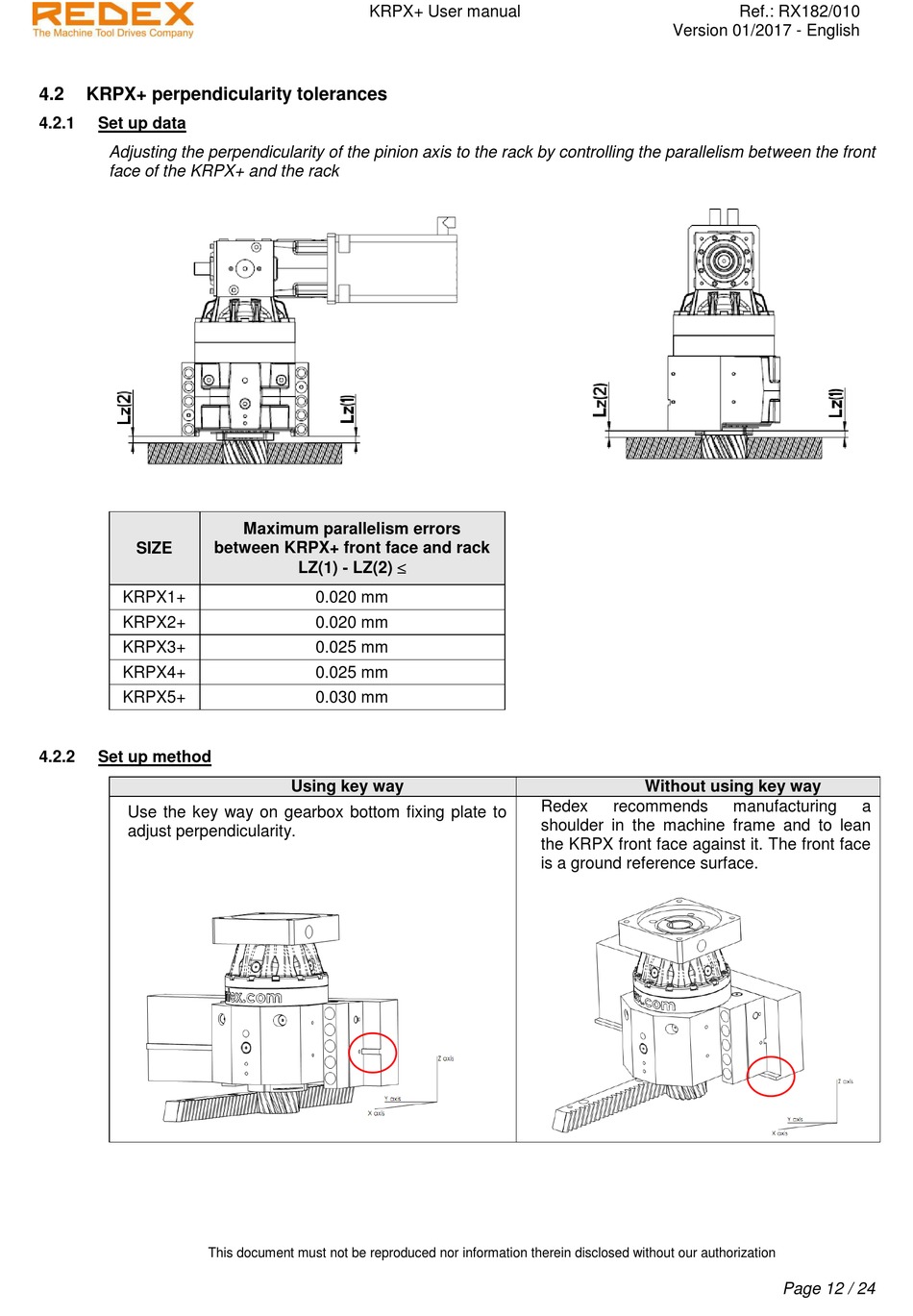

4.2 KRPX+ perpendicularity tolerances
4.2.1 Set up data
Adjusting the perpendicularity of the pinion axis to the rack by controlling the parallelism between the front
face of the KRPX+ and the rack
SIZE
KRPX1+
KRPX2+
KRPX3+
KRPX4+
KRPX5+
4.2.2 Set up method
Use the key way on gearbox bottom fixing plate to
adjust perpendicularity.
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Maximum parallelism errors
between KRPX+ front face and rack
LZ(1) - LZ(2) 
0.020 mm
0.020 mm
0.025 mm
0.025 mm
0.030 mm
Using key way
Version 01/2017 - English
Without using key way
Redex recommends
shoulder in the machine frame and to lean
the KRPX front face against it. The front face
is a ground reference surface.
Ref.: RX182/010
manufacturing a
