4.7

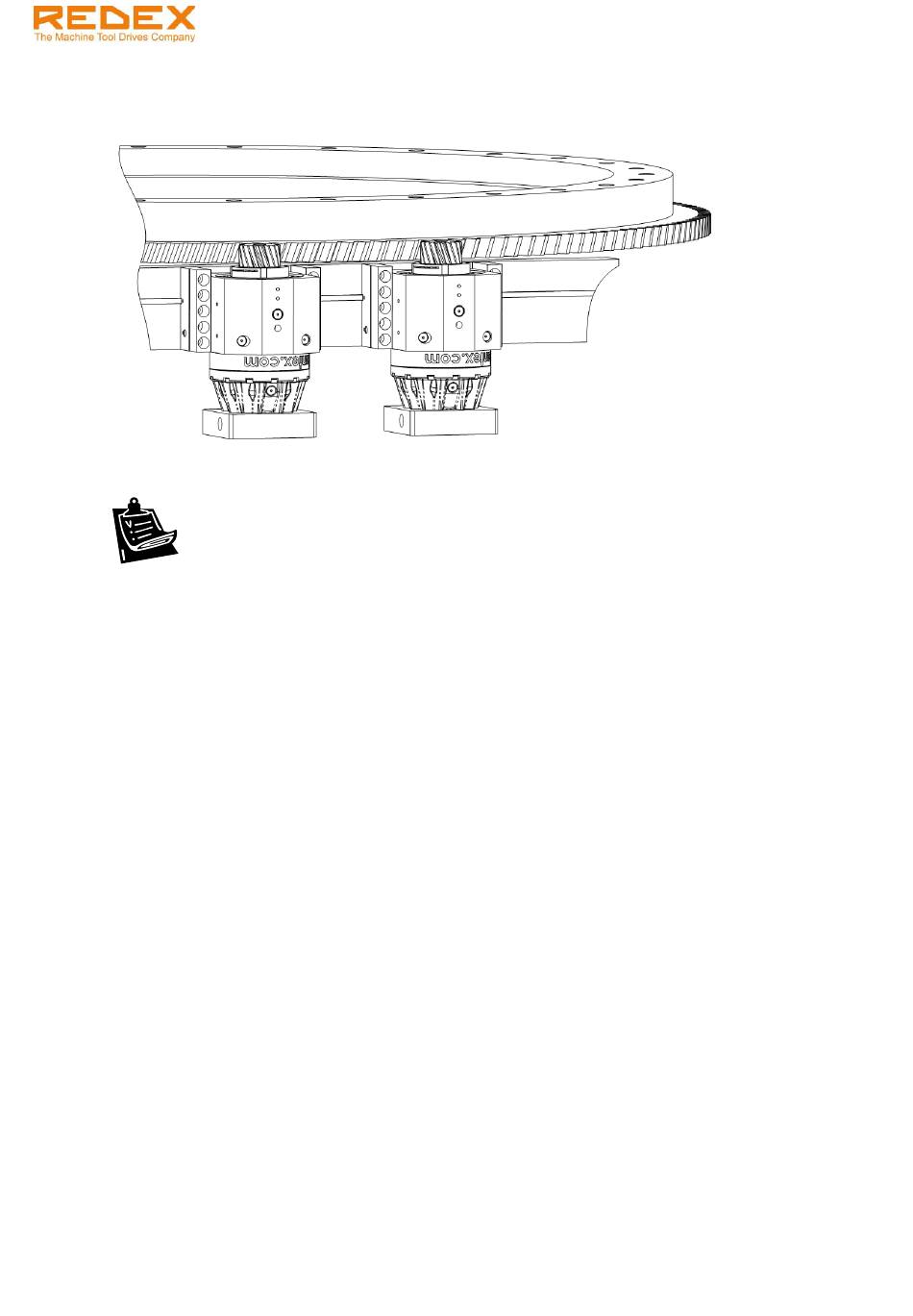

Installation in case of rotary drive

In case of a rotary application, respect the following advices.
1. Ring gear mounting tolerances: check the run-out of the ring gear with a pin every 20 teeth.
Compare the values with the norm ISO1328-2. For crown gear quality, please consult us.
2. KRPX+ parallelism tolerances, height setting, tooth meshing validation: respect the values in chapter
4.
