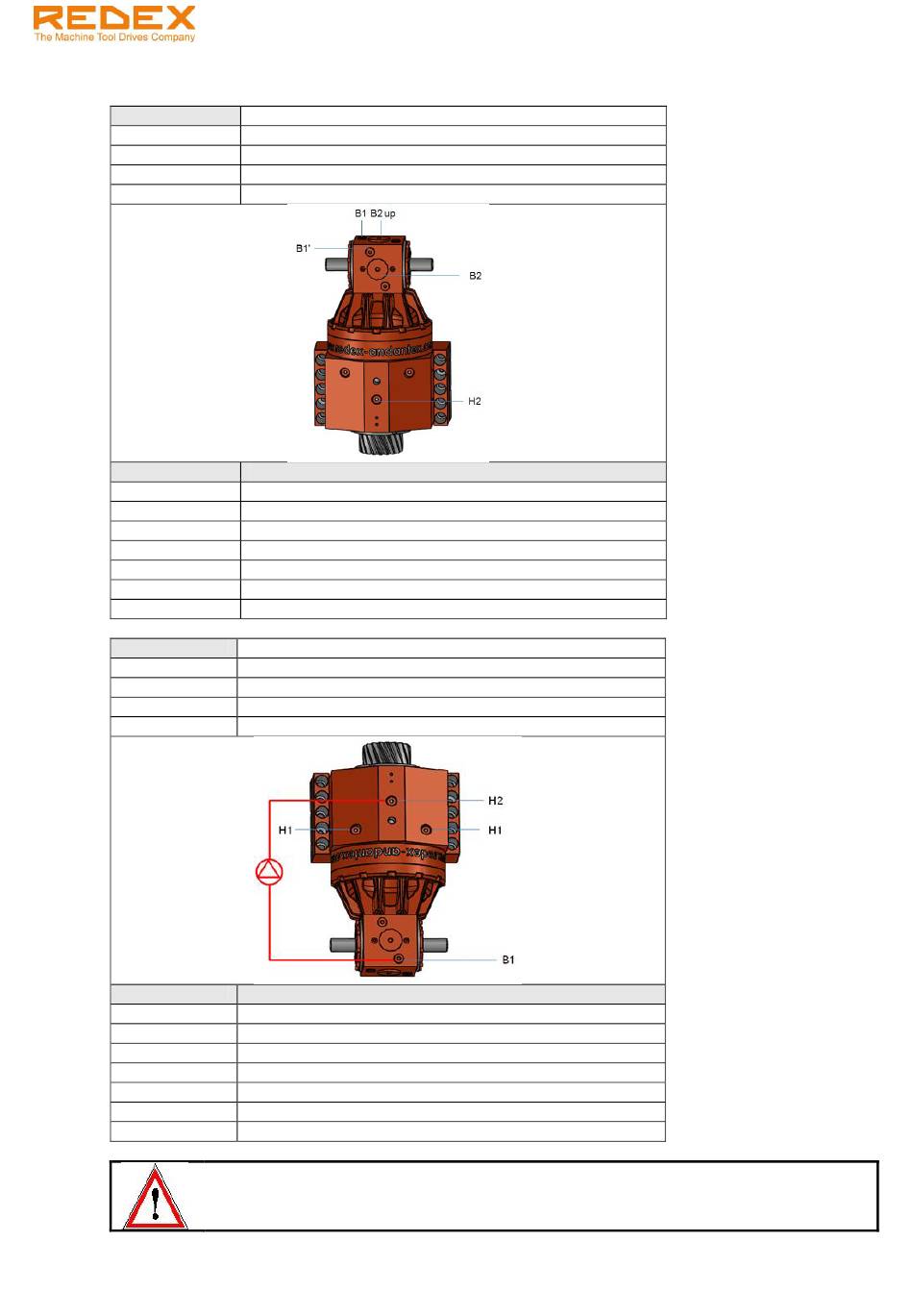

Position: V1/B5
Oil input B1, B2 up
Oil draining H2
B1 or B1' with elbow
Breather
Sight glass B2
Size
KRPX1+R 1st.
KRPX1+R 2st.
KRPX2+R 1st.
KRPX2+R 2st.
KRPX3+R
KRPX4+R
KRPX5+R
Einbaulage: V3/B5
Oil input H2
Oil draining B1
Breather N/A
Sight glass H2 (no sight glass)
Size
KRPX1+R 1st.
KRPX1+R 2st.
KRPX2+R 1st.
KRPX2+R 2st.
KRPX3+R
KRPX4+R
KRPX5+R
WARNING!
This mounting position may require a special procedure for oil filling. Please consult us.
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Approximated oil quantity (L)
Consult us
0,7
Consult us
1,5
4,0
5,0
9,0
Advised oil flow rate (L/min)
Consult us
0,5
Consult us
1,0
2,0
2,5
3,0
Ref.: RX182/010
Version 01/2017 - English
