NOTE:
The distance hm can be adjusted by means of an adaptor plate between the KRPX+ housing and the
machine frame or by using the keyway in the KRPX+ housing.

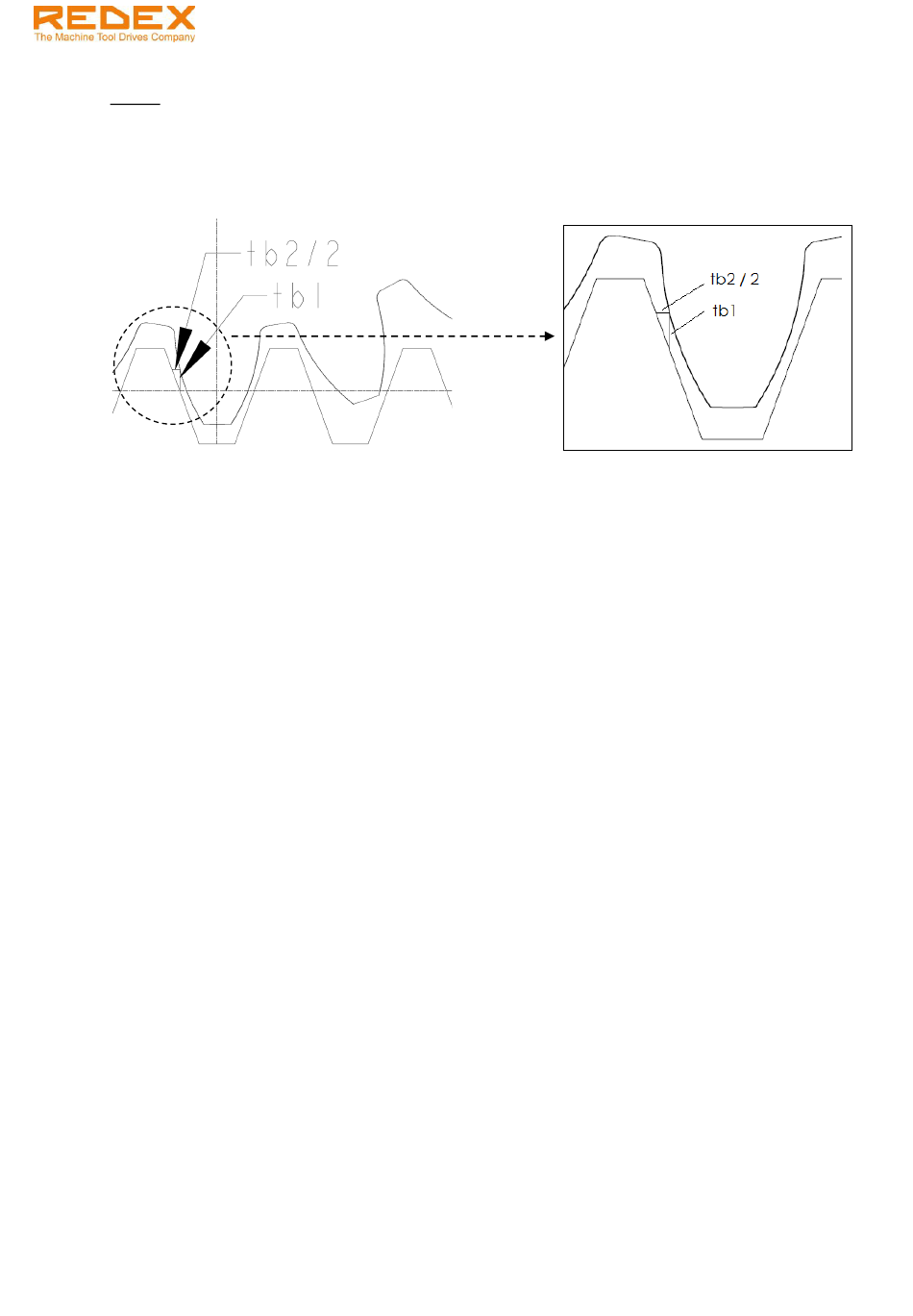

The tooth radial clearance t (as well as the backlash between rack and pinion t , mentioned in the next
b1 b2
chapter) is detailed in the sketch below:
