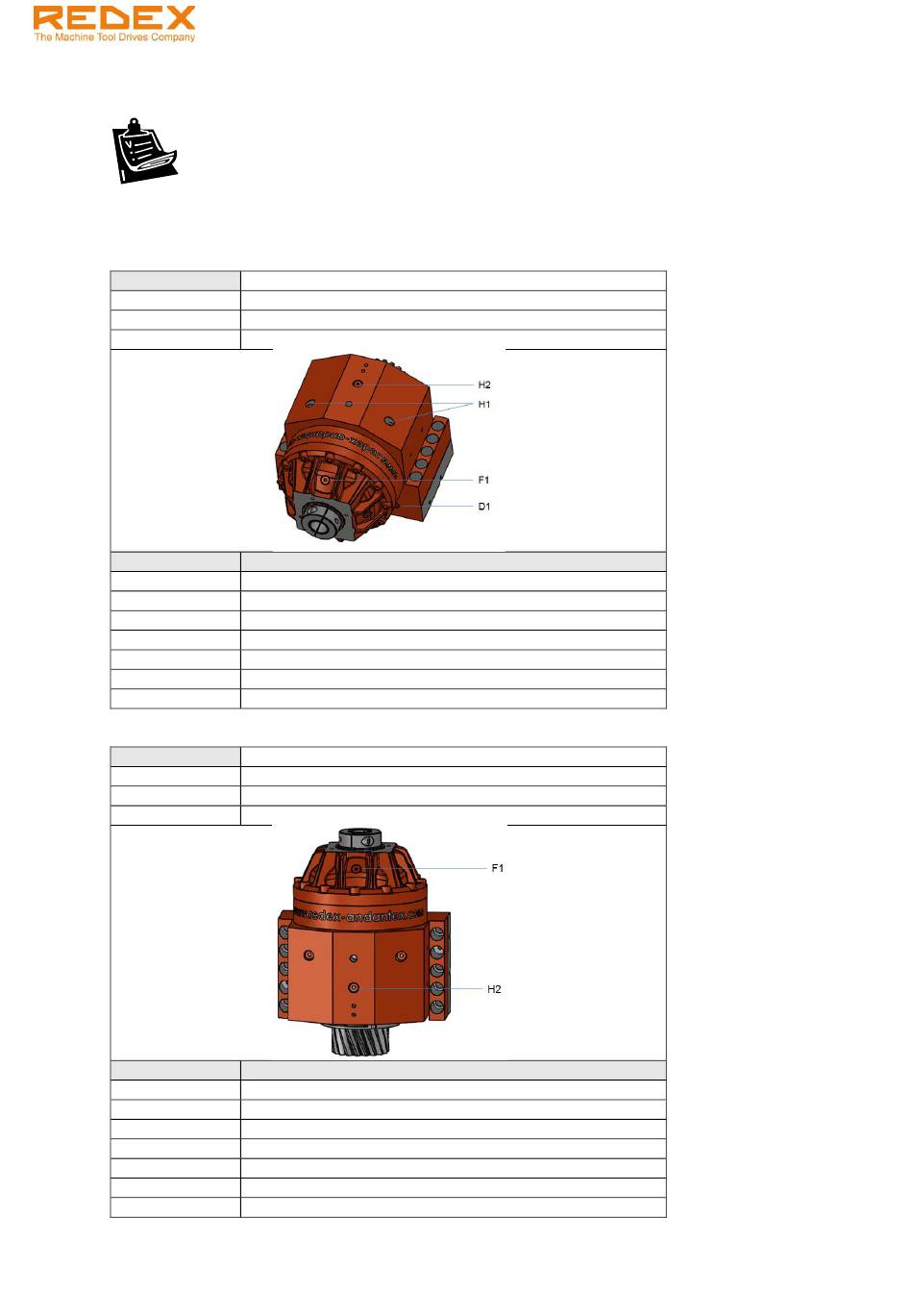

Oil filling: motor in-line configuration (KRPX+M)

1. Remove the dedicated oil input and oil level plugs.
2. Fill the KRPX+ with oil until the oil comes out of the level hole.
3. Replace the plugs.
Position:
Oil input
Oil draining
Oil level
Size
KRPX1+M 1st.
KRPX1+M 2st.
KRPX2+M 1st.
KRPX2+M 2st.
KRPX3+M
KRPX4+M
KRPX5+M
Position:
Oil input
Oil draining
Oil level
Size
KRPX1+M 1st.
KRPX1+M 2st.
KRPX2+M 1st.
KRPX2+M 2st.
KRPX3+M
KRPX4+M
KRPX5+M
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
B5
H1, H2
D1
F1
Approximated oil quantity (L)
V1
F1
H2
F1
Approximated oil quantity (L)
0,2
0,2
0,6
0,6
1,0
1,6
3,5
0,4
0,4
1,0
1,3
1,80
3,4
6,2
Ref.: RX182/010
