NOTE:

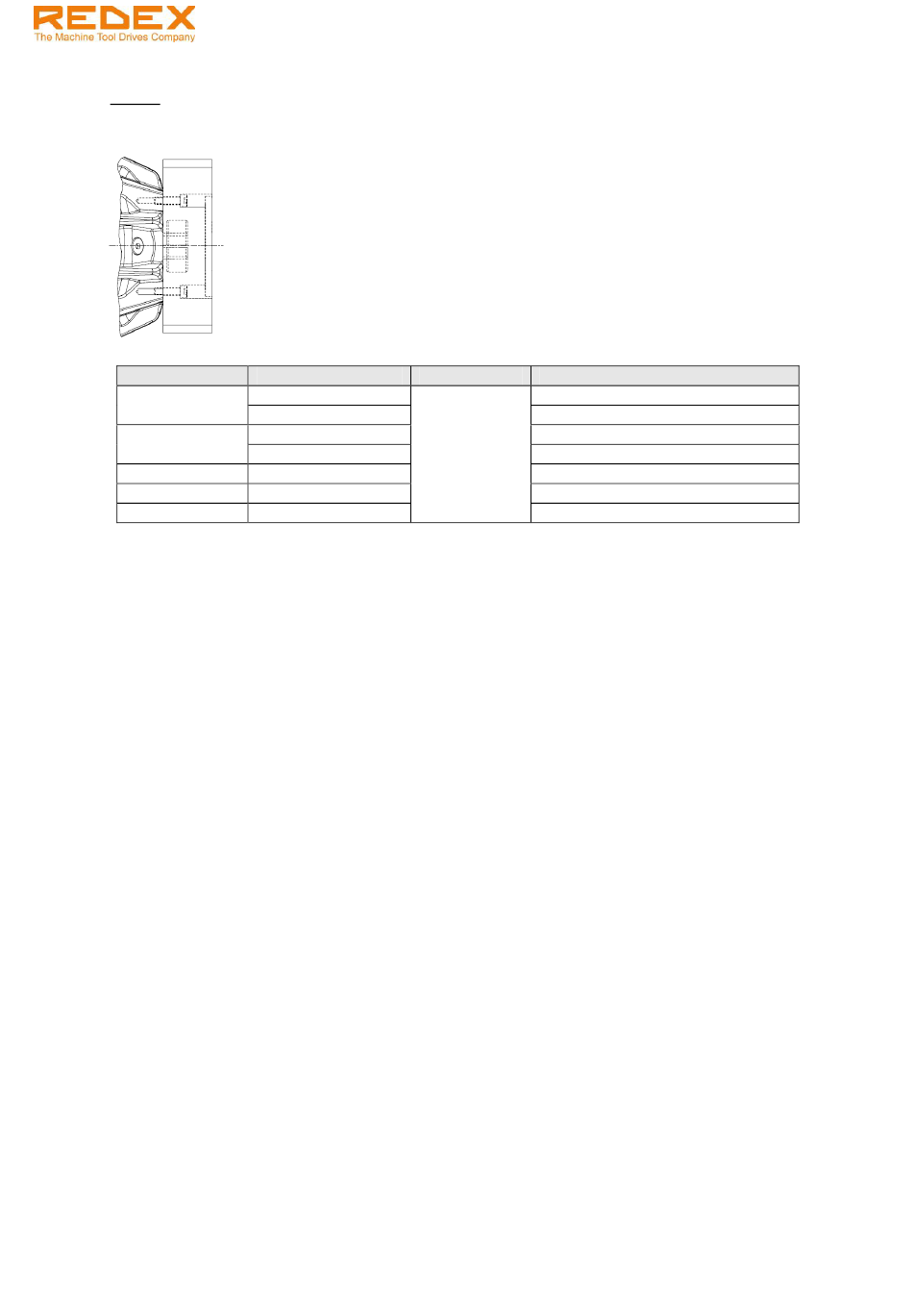

If the input flange needs to be dismounted, the following table gives the tightening torque of the screws
connecting the flange to the gearbox.
Gearbox type Motor flange type
KRP1X+M
KRPX2+M
KRPX3+M
KRPX4+M
KRPX5+M
This document must not be reproduced nor information therein disclosed without our authorization
KRPX+ User manual
Screw class
IFB
IFA
IFC
IFB 8.8
IFB
IFC
IFC
Version 01/2017 - English
Screw type & tightening torque
M8 – 25Nm
M6 – 10Nm
M10 – 49 Nm
M8 – 25 Nm
M8 – 25 Nm
M10 – 49 Nm
M10 – 49 Nm
Ref.: RX182/010
