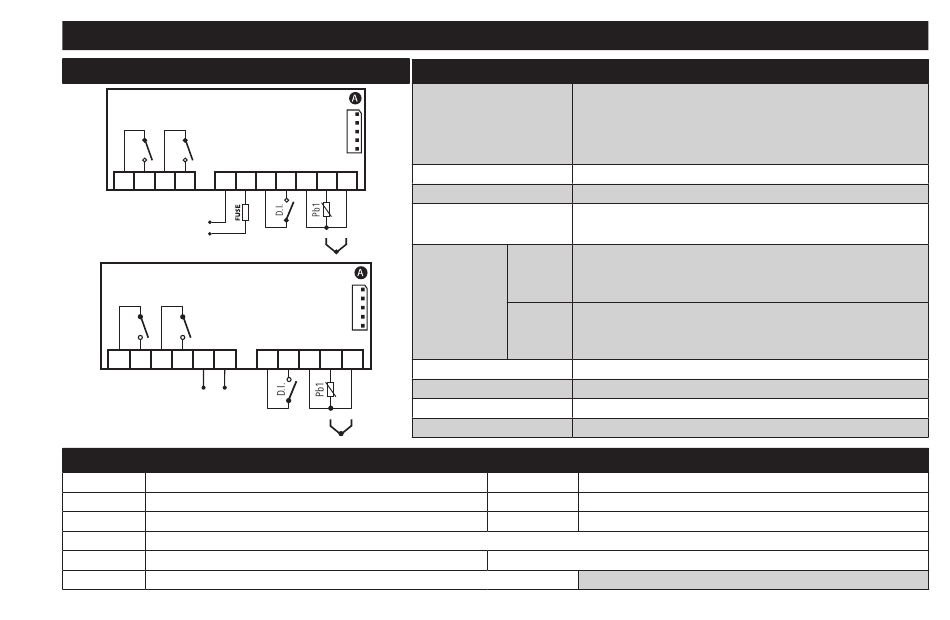

CONNECTIONS
PT100/TcJ-TcK (12 Vac/dc, 12-24 Vac/12-36 Vdc)
OUT1 OUT2
1 2 3 4 6 7 8
Supply
PT100/TcJ-TcK (24 Vac, 115 Vac, 230 Vac)
OUT1 OUT2
1 2 3 4 5 6
Supply
1-2 Regulator relay OUT1
3-4 Regulator relay OUT2
*5-6 Power supply 24 Vac, 115 Vac and 230 Vac
FUSE Approved external fuse, slow-blow 500 mA fuse (T500mAH250V) (12 Vac/dc and 12-24 Vac/12-36 Vdc models)
*6-7 Power supply 12 Vac/dc and 12-24 Vac/12-36 Vdc
A TTL input for Copy Card and TelevisSystem connection
Pt100/TcJ-TcK MODEL
Display range:
Digital input
9 10 11 12
Analogue input
Serial
−
+
Digital
outputs
8 9 10 11 12
Buzzer output
Measurement range
Accuracy
+ −
Resolution
INPUT/OUTPUT CHARACTERISTICS
Pt100: -150...650 °C (-238...1202 °F)
TcJ: -40...750 °C (-40...1382 °F)
TcK: -40...1350 °C (-40...2462 °F)
on display with 3½ digits + sign
1 digital voltage free input
1 Pt100 or 1 TcJ/TcK (H00 parameter)
TTL for connection to Copy Card or Televis/Modbus
remote control systems
EN60730: 1 SPST NO 8(4) A 250 Vac
OUT1: UL 873:
EN60730: 1 SPST NO 8(4) A 250 Vac
OUT2: UL 873:
only on models where this is provided
-150 ... 1350 °C (-238 ... 2462 °F)
see Pt100/TcJ/TcK models table
see Pt100/TcJ/TcK models table
TERMINALS
8-9 Digital Input (D.I.)
*10-11-12 Probe Pt100 input - 3 wires (Pb1)
*11-12 TcJ/TcK input
* depends on model
13
1 SPST NO 8 A, 240 Vac G.P.;
4.9 FLA / 29.4 LRA, 240 Vac
1 SPST NO 8 A, 240 Vac G.P.;
4.9 FLA / 29.4 LRA, 240 Vac
