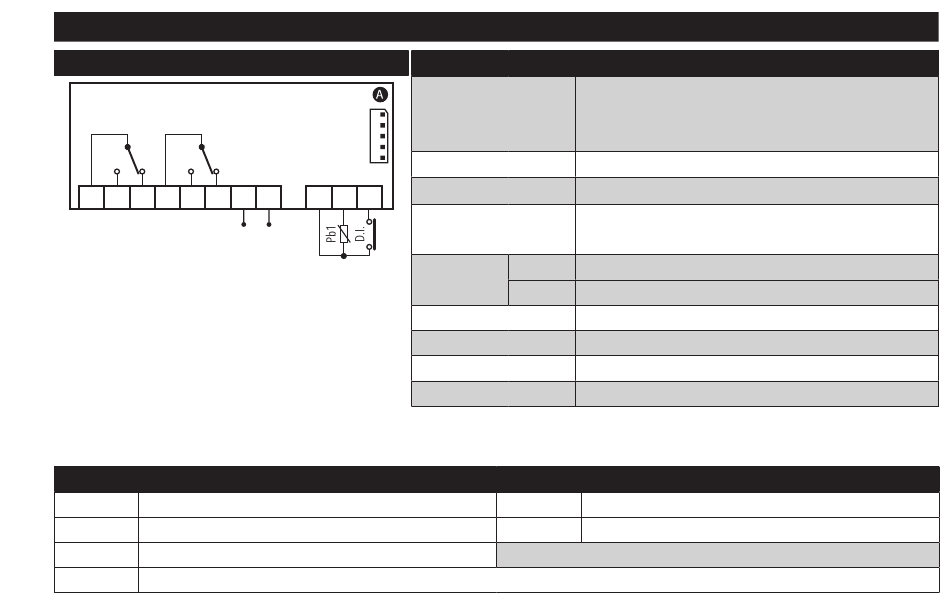

CONNECTIONS
NTC/PTC (24 Vac, 230 Vac)
OUT1 OUT2
1 2 3 4 5 6 7
Supply
1-2-3 Regulator relay OUT1
4-5-6 Regulator relay OUT2
*7-8 Power supply 24 Vac and 230 Vac
A TTL input for Copy Card and TelevisSystem connection
NTC/PTC MODEL (with 2 SPDT relays)
Display range:
Digital input
Analogue input
8 10 11 12
Serial
Digital
outputs
Buzzer output
Measurement range
Accuracy
Resolution
INPUT/OUTPUT CHARACTERISTICS
NTC: -50...110 °C (-58...230 °F)
PTC: -50...140 °C (-58...284 °F)
on display with 3½ digits + sign
1 digital voltage free input
1 NTC or 1 PTC (H00 parameter)
TTL for connection to Copy Card or Televis/Modbus
remote control systems
OUT1: EN60730: 1 SPDT NO 8(4) A, NC 6(3) A, 250 Vac max
OUT2: EN60730: 1 SPDT NO 8(4) A, NC 6(3) A, 250 Vac max
No
-50 ... 140 °C (-58 ... 284 °F)
better than 0.5 % of end of scale +1 digit
0.1 °C (0.1 °F up to +199.9 °F; 1 °F over)
TERMINALS
10-11 Probe Pb1 Input
10-12 Digital Input (D.I.)
* depends on model
