The Televis remote control systems can be connected using the
TTL serial port (TTL-RS485 BusAdapter 150 interface module
must be used).
To configure the instrument to do this, you need to access the
Add folder and use the dEA and FAA parameters.
The device uses parameters On1/2 e OF1/2 set for Duty Cycle.
An error condition in Pb1 (regulation) causes one of the following actions:
• Code E1 is shown on the display;
• The regulator is activated as indicated by parameters On1/2 and OF1/2 if set for Duty Cycle.
On1/2 OF1/2
0 0
0 >0
>0 0
>0 >0

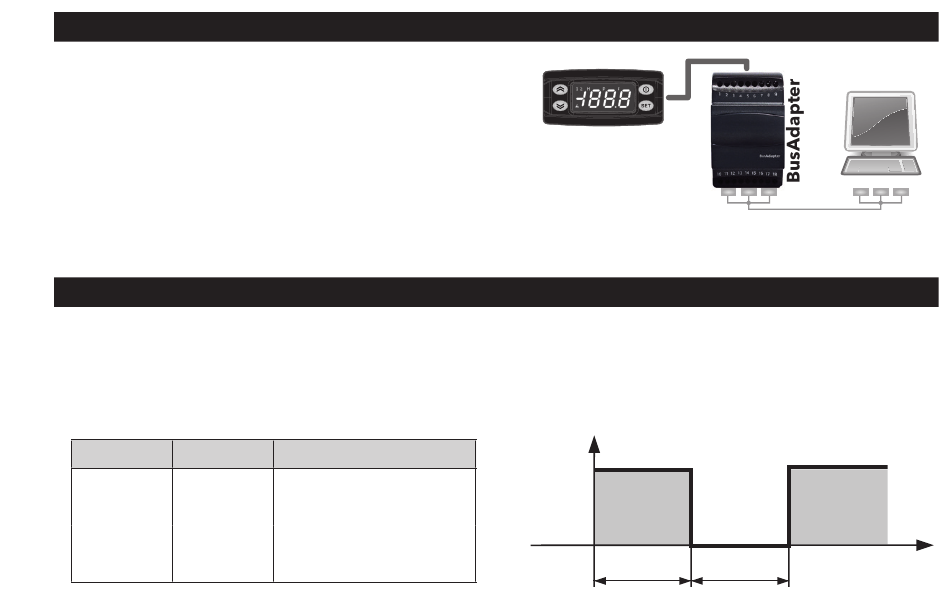

TELEVIS SYSTEM
DUTY CYCLE DIAGRAM
Regulator output
OFF
OFF
ON
Duty Cycle
ICPlus
NOTE: CHECK THE AVAILABILITY OF MODELS
COMPATIBLE WITH REMOTE SUPERVISION SYSTEMS.
OUT
ON
On1/2
21
TTL
RS485
OFF ON
OF1/2 On1/2
