Eliwell ICPlus 915 Bedienungsanleitung Seite 15

EWHS 284 2 wires
9 10 11 12
blue
brown
EWPA 007/030 2 wires / Transducer
9 10 11 12
brown
white

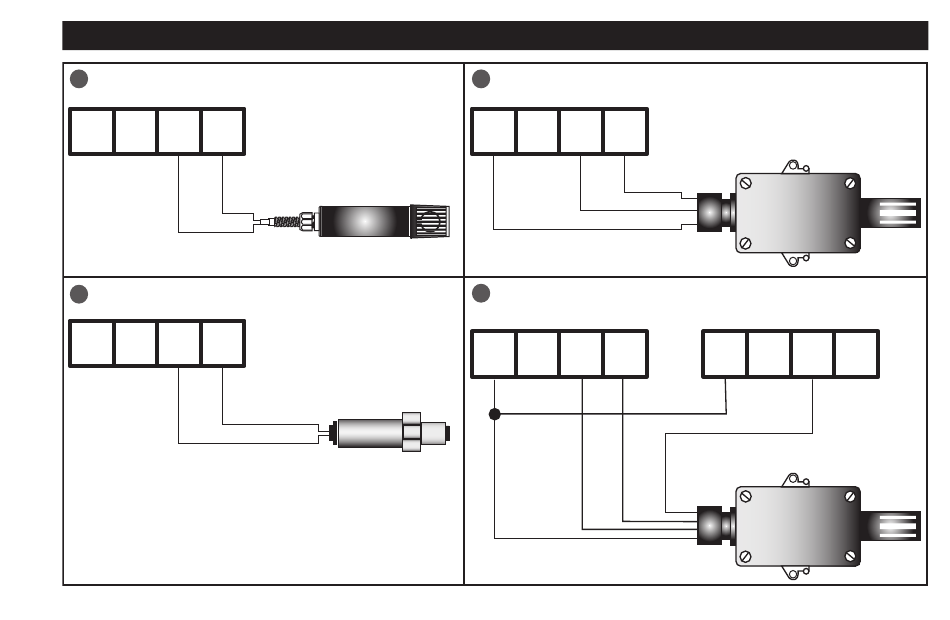

EWPA-EWHS PROBE CONFIGURATION
9 10 11 12
Probe
9 10 11 12
Transducer
EWHS 304/314 3 wires
V+
RH/T
GND (only EWHS314)
EWHS 314 4 wires (V-I model)
ICPlus 1
V+
RH
GND
15
Probe
ICPlus 2
9 10 11 12
GND
Probe
T
