7. Installation of lifting station

7.1 General description
When installing the Multilift MD or MLD lifting station, make sure
that all local regulations covering venting, access to the stations,
etc. are observed.
7.1.1 Installation sketches

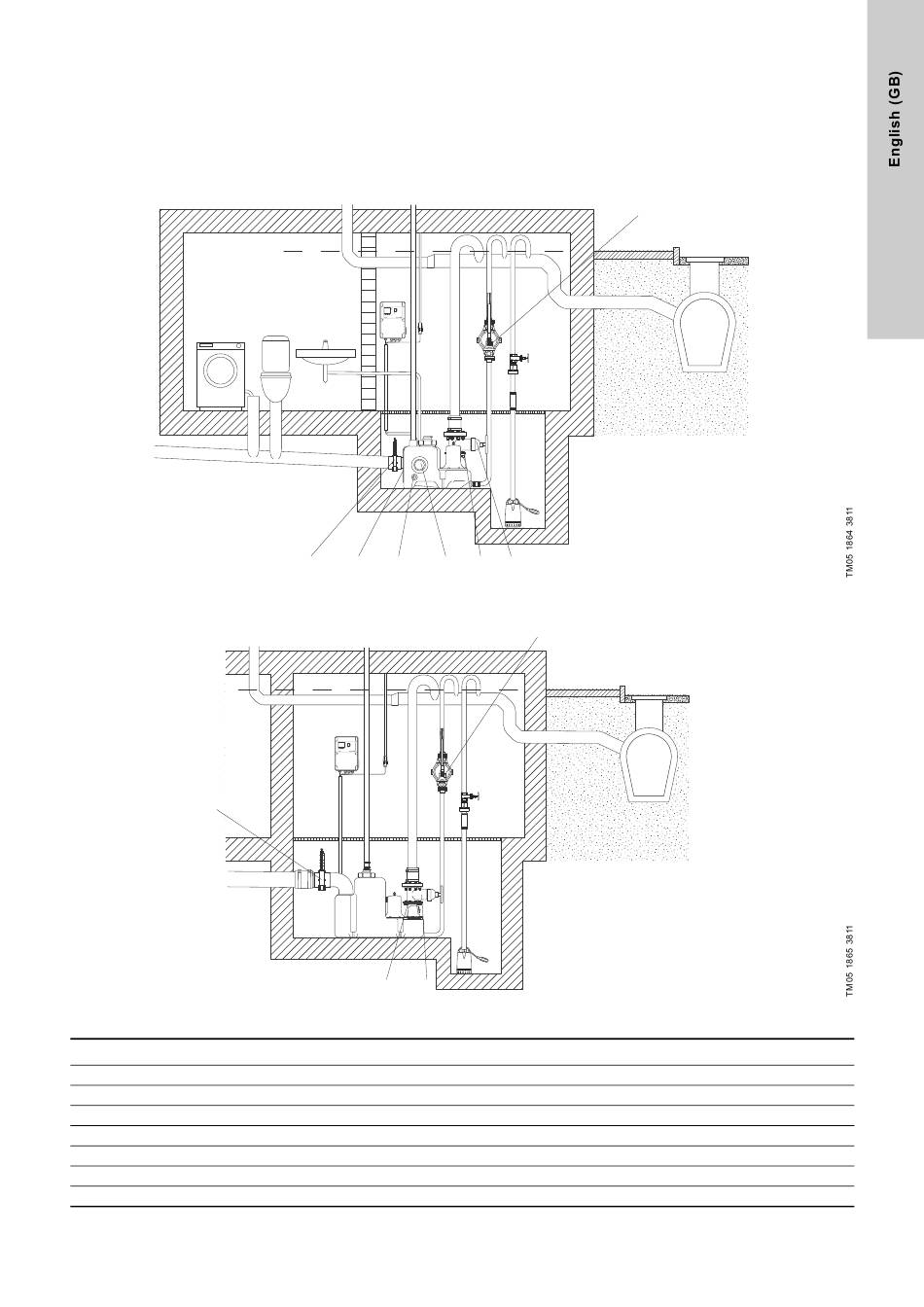

Fig. 15 Installation sketch, Multilift MD
4
Fig. 16 Installation sketch, Multilift MLD
Pos.

Accessories

1 Socket seal, DN 100
2 Socket seal, DN 50
3 Diaphragm pump, 1 1/2"
4 PVC isolating valve, DN 100
5 Cast iron isolating valve, DN 80
6 Gasket kit, DN 80, with bolts, nuts and washers
7 Inlet disk with socket seal, DN 150, for replacement
4 7 2 1 6
6 5
3
5
3
Product number
97726942
98079669
96003721
96615831
96002011
96001999
98079681
