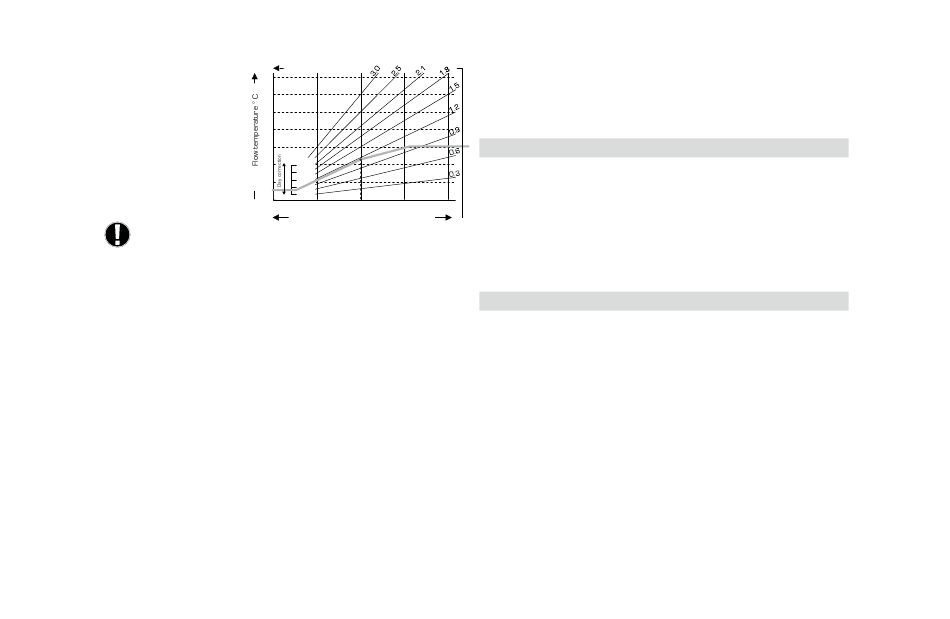

EXAMPLE 4: MAX/MIN SPLIT
Splitpoint 0° selected with
heating curve part 1 selected
90
to 1.1 and heating curve part
2 selected to 0.7 will increase 80
flow temp from 38° to 42° at
70
outdoor temp 0° compared to
simple heating curve 0.9
60
Max limitation 50°C and min
limitation 25°C added.
50
40
30
20
The following settings can be used for parallel translation of the characteristic
for certain time periods such as daytime and nighttime mode.
MENU 5.4 DAY CORRECTION = PARALLEL TRANSLATION OF THE CHARACTERISTIC
The day correction produces a parallel translation of the heating characteristic during
the daytime operating hours, since depending on the outdoor temperature it is possible
that the building may not be optimally heated with the set characteristic. If the characte-
ristic is not optimised, the following situation may occur:
in hot weather - the spaces are too cold
in cold weather - the spaces are too hot
In this case, one should gradually reduce the characteristic slope in steps of 0.2, each
time raising the day correction by 2-4 °C.
This procedure can be repeated several times as needed.
Setting range: from -10°C to 50°C / / Default: 5°C
MENU 5.5 NIGHT CORRECTION = PARALLEL TRANSLATION OF THE CHARACTERISTIC
The night correction produces a parallel translation of the heating characteristic during
the nighttime operating hours. If a negative value is set for the night correction, the refe-
rence fl ow temperature is lowered accordingly during the nighttime operating hours.
In this manner, primarily at night, but also during the day when no-one is at home, the
room temperature is lowered, thus saving energy.
Example: A day correction of +5°C and a night correction of -2°C produces a reference
fl ow temperature in nighttime operation that is 7°C lower.
Setting range: from -30°C to 30°C / / Default: -2°C
MENU 5.6 COMFORT TEMPERATURE BOOST = PARALLEL TRANSLATION OF THE
CHARACTERISTIC
The comfort temperature boost is added to the set day correction. In this manner it is
possible to carry out quick heating and/or a higher temperature in the living spaces at
a certain time each day.
Setting range: from 0°C to 15°C / / Default: 0°C = off
16
Characteristic curve
+15
+10
+5
+0 °C
−5
20 10 0 -10 -12 -20
Outdoor temperature ° C
MENU 5.7 REFERENCE/ACTUAL -
Permissible reference value undershoot of the heating value.
Settings range -10°C to -2 / Default: -2°C
MENU 5.8 REFERENCE/ACTUAL +
Permissible reference value overshoot of the heating value.
Settings range 2°C to 20 / Default: 2°C
HC (HEATING CIRCUIT) 2 SETTINGS, MENU 6
Menu 6 is activated when Heating circuit 2 is selected in menu 9.7.2
Note: Pump is activated when actual flow temp < target flow 2.
MENU 6.1 S/W DAY see Menu 5.1
MENU 6.2 S/W NIGHT see Menu 5.2
MENU 6.3 CURVE see Menu 5.3 including curve examples.
MENU 6.4 DAY CORRECTION see Menu 5.4
MENU 6.5 NIGHT CORRECTION see Menu 5.5
MENU 6.6 COMFORT TEMP BOST see Menu 5.6
DHW SETTINGS, MENU 7
Menu 7 is activated when Dom. Hot water is selected in menu 9.7.2
MENU 7.1 HOT WATER MINIMUM
Minimum domestic hot water temperature outside of the operating times.
Settings range 10°C to 80 / Default: 45°C
MENU 7.2 DHW TARGET
Minimum DHW temperature during operating hours.
Settings range 10°C to 80°C / Default: 45°C
MENU 7.3 DHW TARGET HYSTERESIS
Hot water heating hysteresis during operating times.
Settings range +2°C to +20°C / Default: +10°C
