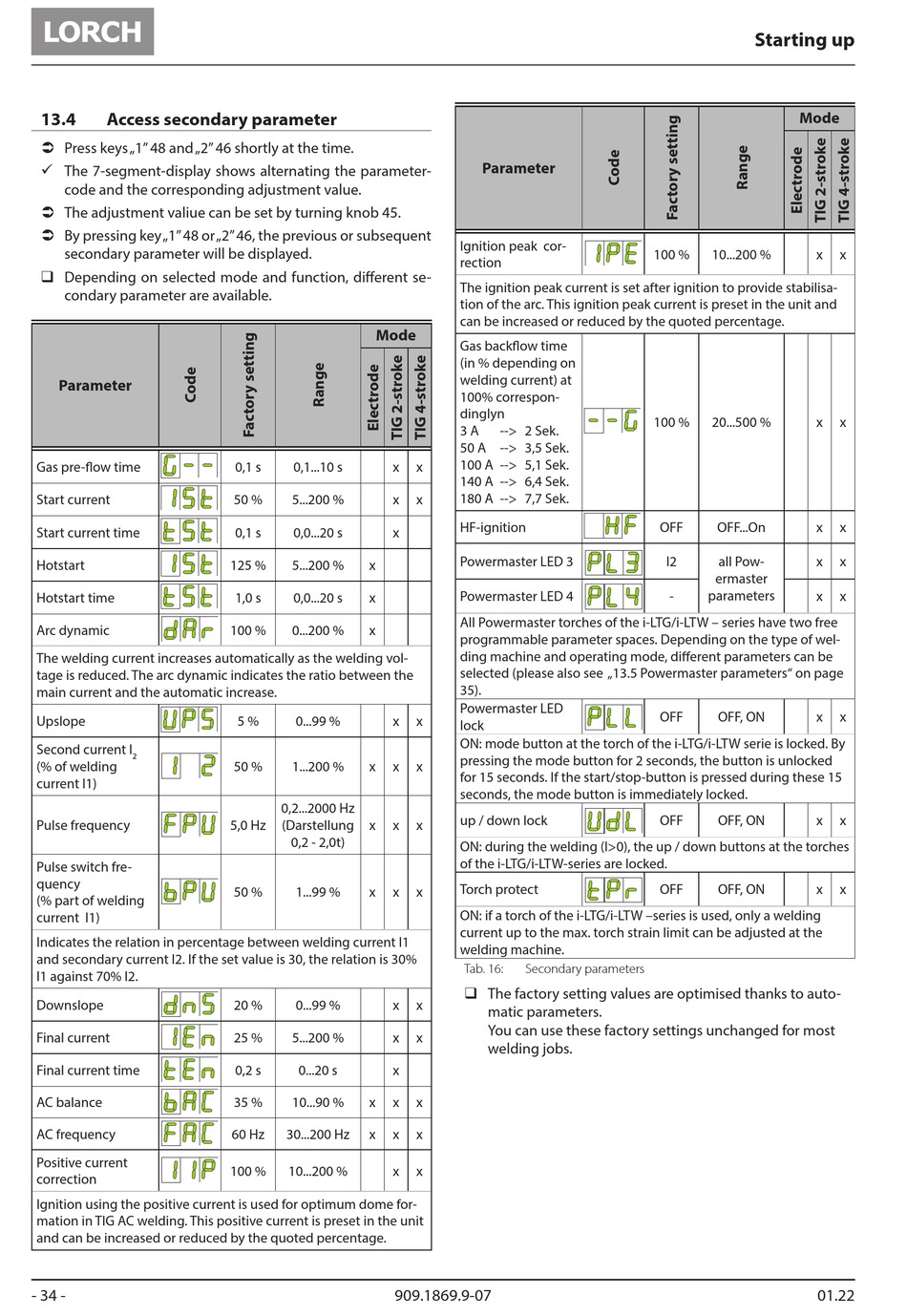

13.4 Access secondary parameter
 Press keys „1" 48 and „2" 46 shortly at the time.
9 The 7-segment-display shows alternating the parameter-
code and the corresponding adjustment value.
 The adjustment valiue can be set by turning knob 45.
 By pressing key „1" 48 or „2" 46, the previous or subsequent
secondary parameter will be displayed.
‰ Depending on selected mode and function, different se-
condary parameter are available.
Parameter
Gas pre-flow time
Start current
Start current time
Hotstart
Hotstart time
Arc dynamic
The welding current increases automatically as the welding vol-
tage is reduced. The arc dynamic indicates the ratio between the
main current and the automatic increase.
Upslope
Second current I
2
(% of welding
current I1)
Pulse frequency
Pulse switch fre-
quency
(% part of welding
current I1)
Indicates the relation in percentage between welding current l1
and secondary current l2. If the set value is 30, the relation is 30%
l1 against 70% l2.
Downslope
Final current
Final current time
AC balance
AC frequency
Positive current
correction
Ignition using the positive current is used for optimum dome for-
mation in TIG AC welding. This positive current is preset in the unit
and can be increased or reduced by the quoted percentage.
