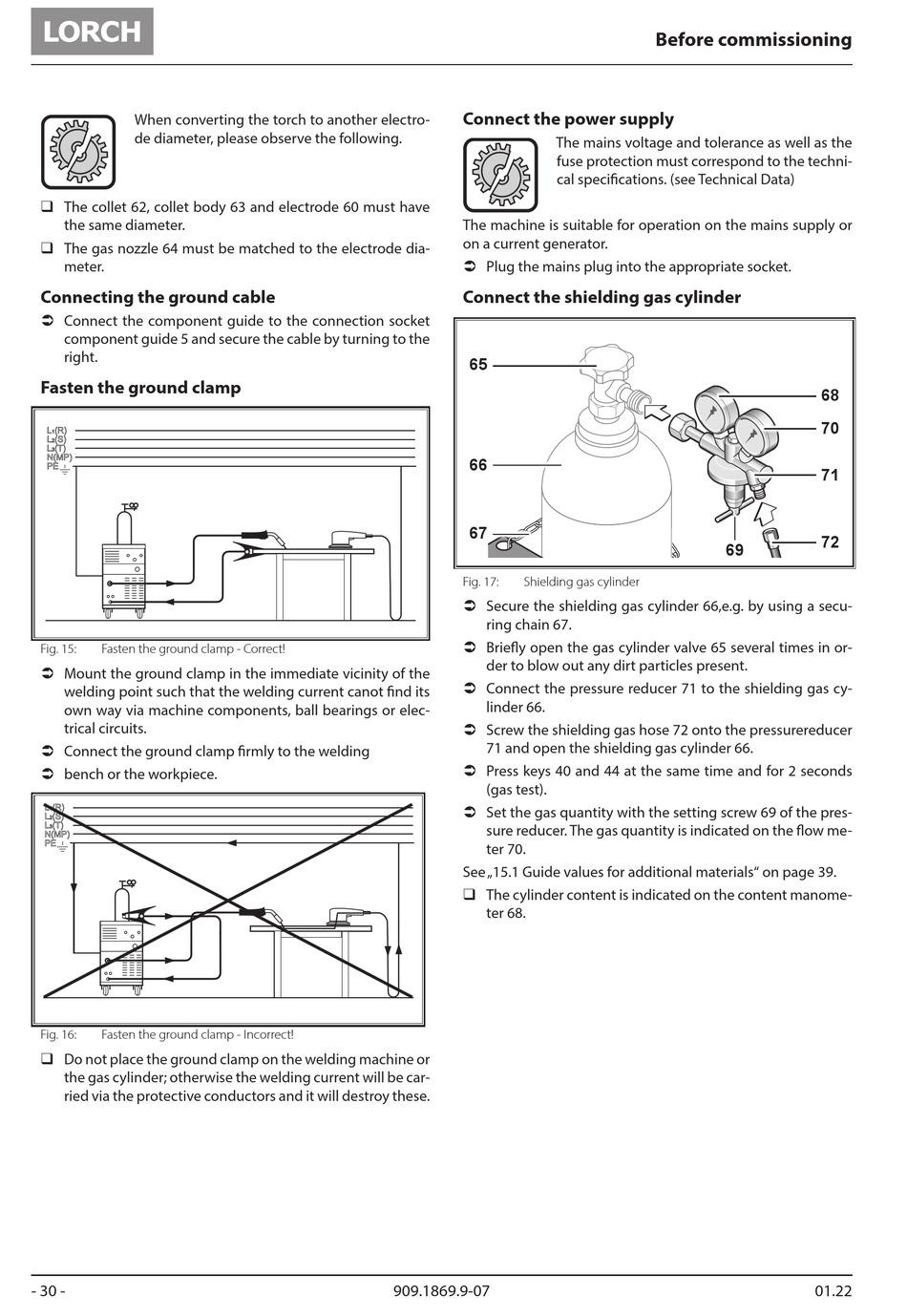

LORCH HandyTIG 180 AC/DC ControlPro Bedienungshandbuch Seite 30

When converting the torch to another electro-
de diameter, please observe the following.
‰ The collet 62, collet body 63 and electrode 60 must have
the same diameter.
‰ The gas nozzle 64 must be matched to the electrode dia-
meter.
Connecting the ground cable
 Connect the component guide to the connection socket
component guide 5 and secure the cable by turning to the
right.
Fasten the ground clamp
Fig. 15: Fasten the ground clamp - Correct!
 Mount the ground clamp in the immediate vicinity of the
welding point such that the welding current canot find its
own way via machine components, ball bearings or elec-
trical circuits.
 Connect the ground clamp firmly to the welding
 bench or the workpiece.
Fig. 16: Fasten the ground clamp - Incorrect!
‰ Do not place the ground clamp on the welding machine or
the gas cylinder; otherwise the welding current will be car-
ried via the protective conductors and it will destroy these.
- 30 -
Connect the power supply
The mains voltage and tolerance as well as the
fuse protection must correspond to the techni-
cal specifications. (see Technical Data)
The machine is suitable for operation on the mains supply or
on a current generator.
 Plug the mains plug into the appropriate socket.
Connect the shielding gas cylinder
65
66
67
Fig. 17: Shielding gas cylinder
 Secure the shielding gas cylinder 66,e.g. by using a secu-
ring chain 67.
 Briefly open the gas cylinder valve 65 several times in or-
der to blow out any dirt particles present.
 Connect the pressure reducer 71 to the shielding gas cy-
linder 66.
 Screw the shielding gas hose 72 onto the pressurereducer
71 and open the shielding gas cylinder 66.
 Press keys 40 and 44 at the same time and for 2 seconds
(gas test).
 Set the gas quantity with the setting screw 69 of the pres-
sure reducer. The gas quantity is indicated on the flow me-
ter 70.
See „15.1 Guide values for additional materials" on page 39.
‰ The cylinder content is indicated on the content manome-
ter 68.
909.1869.9-07
Before commissioning
68
70
71
72
69
