Starting up

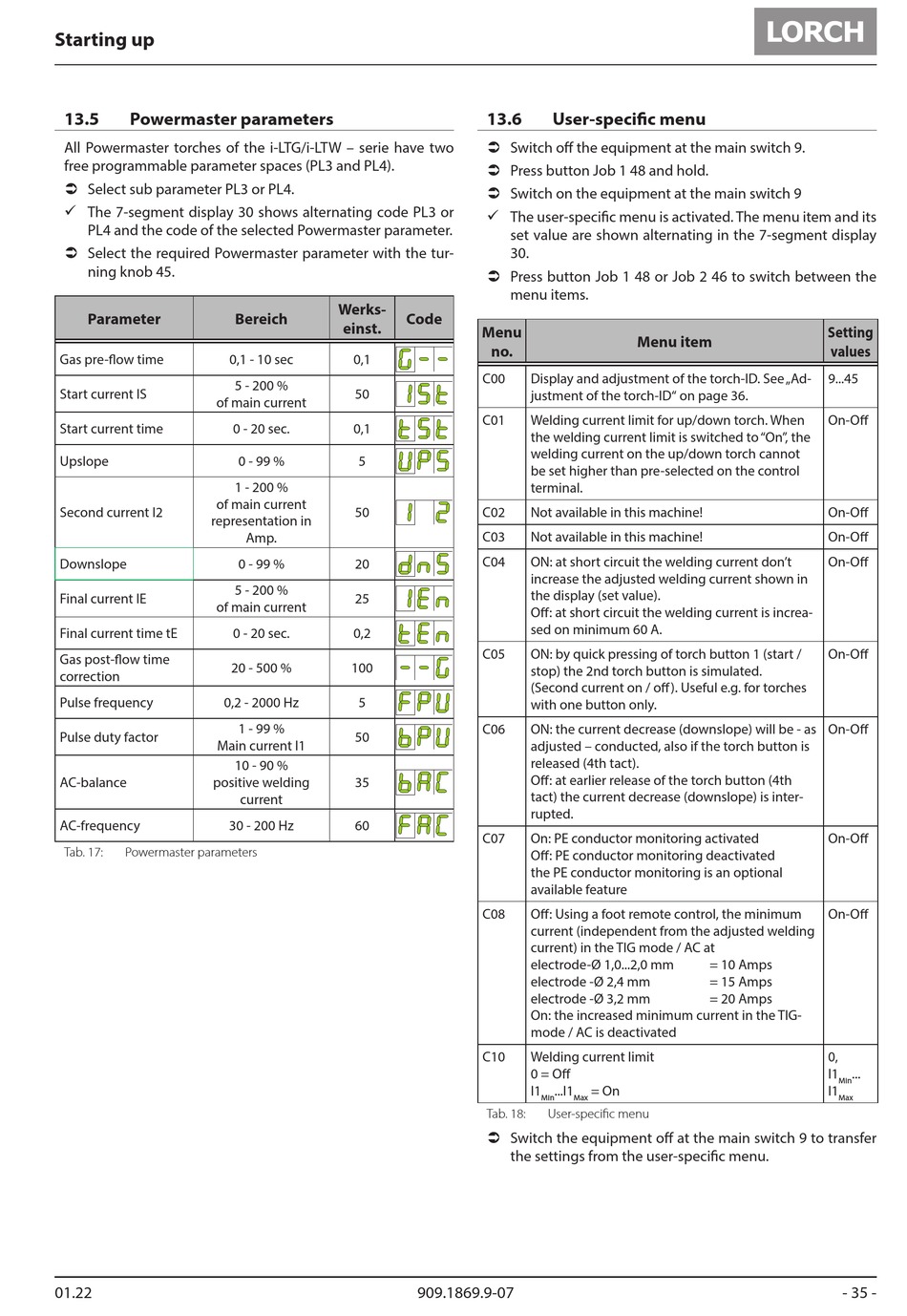

13.5 Powermaster parameters
All Powermaster torches of the i-LTG/i-LTW – serie have two
free programmable parameter spaces (PL3 and PL4).
 Select sub parameter PL3 or PL4.
9 The 7-segment display 30 shows alternating code PL3 or
PL4 and the code of the selected Powermaster parameter.
 Select the required Powermaster parameter with the tur-
ning knob 45.
Parameter
Gas pre-flow time
Start current IS
of main current
Start current time
Upslope
of main current
Second current I2
representation in
Downslope
Final current IE
of main current
Final current time tE
Gas post-flow time
correction
Pulse frequency 0,2 - 2000 Hz
Pulse duty factor
Main current I1
AC-balance positive welding
AC-frequency
Tab. 17: Powermaster parameters
01.22
Werks-
Bereich
einst.
0,1 - 10 sec 0,1
5 - 200 %
50
0 - 20 sec. 0,1
0 - 99 % 5
1 - 200 %
50
Amp.
0 - 99 % 20
5 - 200 %
25
0 - 20 sec. 0,2
20 - 500 % 100
5
1 - 99 %
50
10 - 90 %
35
current
30 - 200 Hz 60
13.6 User-specific menu
 Switch off the equipment at the main switch 9.
 Press button Job 1 48 and hold.
 Switch on the equipment at the main switch 9
9 The user-specific menu is activated. The menu item and its
set value are shown alternating in the 7-segment display
30.
 Press button Job 1 48 or Job 2 46 to switch between the
menu items.
Code
Menu
no.
C00 Display and adjustment of the torch-ID. See „Ad-
justment of the torch-ID" on page 36.
C01 Welding current limit for up/down torch. When
the welding current limit is switched to "On", the
welding current on the up/down torch cannot
be set higher than pre-selected on the control
terminal.
C02 Not available in this machine!
C03 Not available in this machine!
C04 ON: at short circuit the welding current don't
increase the adjusted welding current shown in
the display (set value).
Off: at short circuit the welding current is increa-
sed on minimum 60 A.
C05 ON: by quick pressing of torch button 1 (start /
stop) the 2nd torch button is simulated.
(Second current on / off ). Useful e.g. for torches
with one button only.
C06 ON: the current decrease (downslope) will be - as
adjusted – conducted, also if the torch button is
released (4th tact).
Off: at earlier release of the torch button (4th
tact) the current decrease (downslope) is inter-
rupted.
C07 On: PE conductor monitoring activated
Off: PE conductor monitoring deactivated
the PE conductor monitoring is an optional
available feature
C08 Off: Using a foot remote control, the minimum
current (independent from the adjusted welding
current) in the TIG mode / AC at
electrode-Ø 1,0...2,0 mm
electrode -Ø 2,4 mm
electrode -Ø 3,2 mm
On: the increased minimum current in the TIG-
mode / AC is deactivated
C10 Welding current limit
0 = Off
I1 ...I1
Min Max
Tab. 18: User-specific menu
 Switch the equipment off at the main switch 9 to transfer
the settings from the user-specific menu.
909.1869.9-07
Menu item
= 10 Amps
= 15 Amps
= 20 Amps
= On
Setting
values
9...45
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
0,
I1 ...
Min
I1
Max
